Chapter 2 Performance Verification Test RIGOL
DM3058/DM3058E Performance Verification Guide
Chapter 2 Performance Verification Test
This chapter introduces the routine test methods of DM3058/DM3058E performance
verification test and the quick test methods are also contained.
Zero Offset Verification
The zero offset verification inspects the zero offset performance of the multimeter. It
is necessary only when a regular offset occurs to a function and range.
The zero offset verification procedures are as follows.
1. Make sure you have carefully read the "Test Conditions".
2. Use a 4-terminal short-circuiter to short-circuit the Input HI-LO and Sense HI-LO
terminals and open the current input terminal, as shown in Figure 2-1.
3. Test the functions under different ranges specified in Table 2-1 one by one. Set
the reading rate to "Slow" and turn off all the math operations.
4. Compare the test results with the test limits in the table.

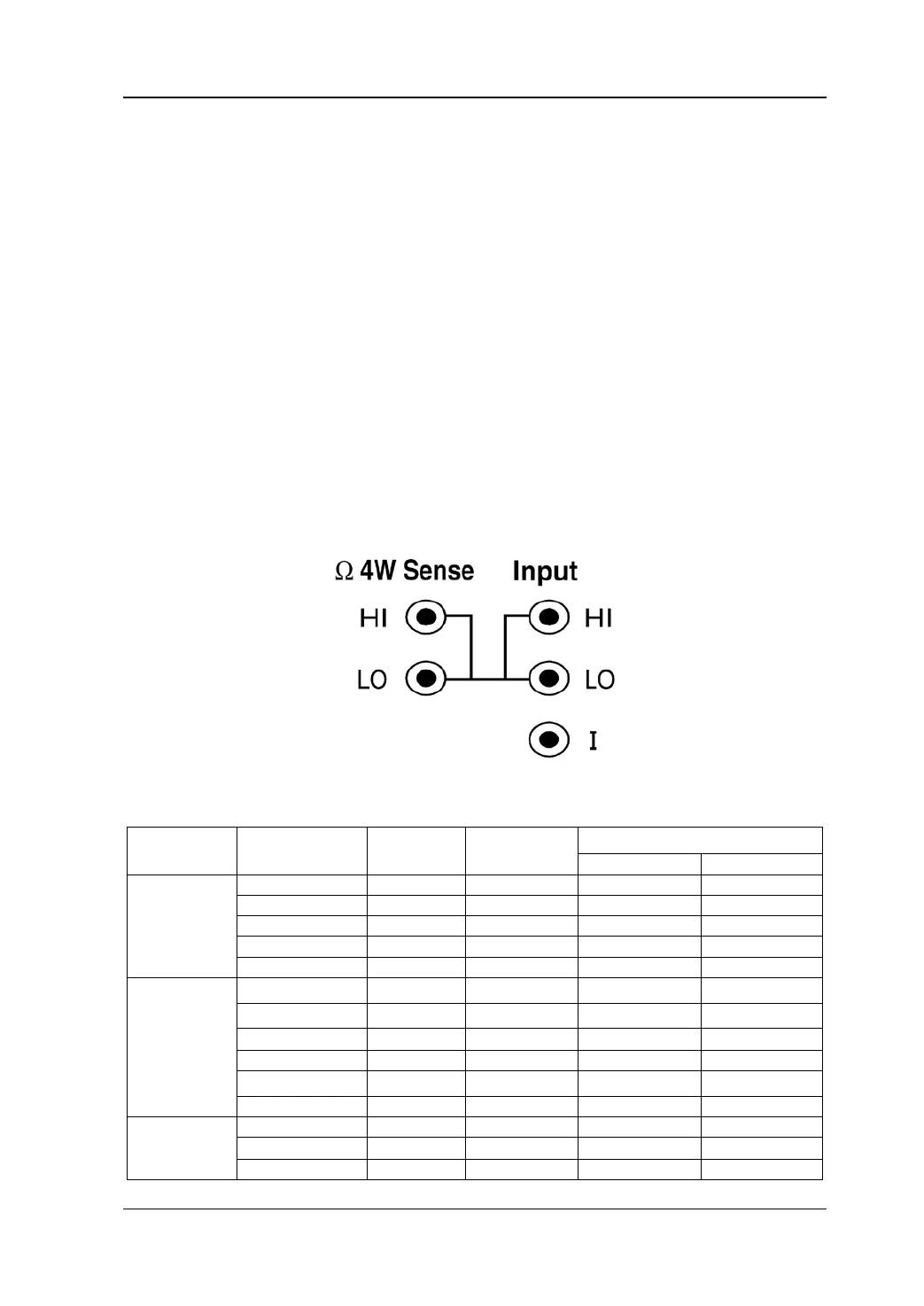

Figure 2-1 Short-circuit the Input HI-LO and Sense/Ref HI-LO Terminals
Table 2-1 Zero Offset Verification Table
Function
[1]
Range
Input
signal
Quick Test
1-year Test Limit
200.000 μA
Q 10 nA -10 nA
2.00000 mA
100 nA -100 nA
2.00000 A
400 μA -400 μA
To Next Page
