RM-DP-1 Rack Mount Kit Installation Guide 11
The rack occupies a height of 4U. The holes pointed out by the arrows are the installation holes and
note that they must be aligned while installing.

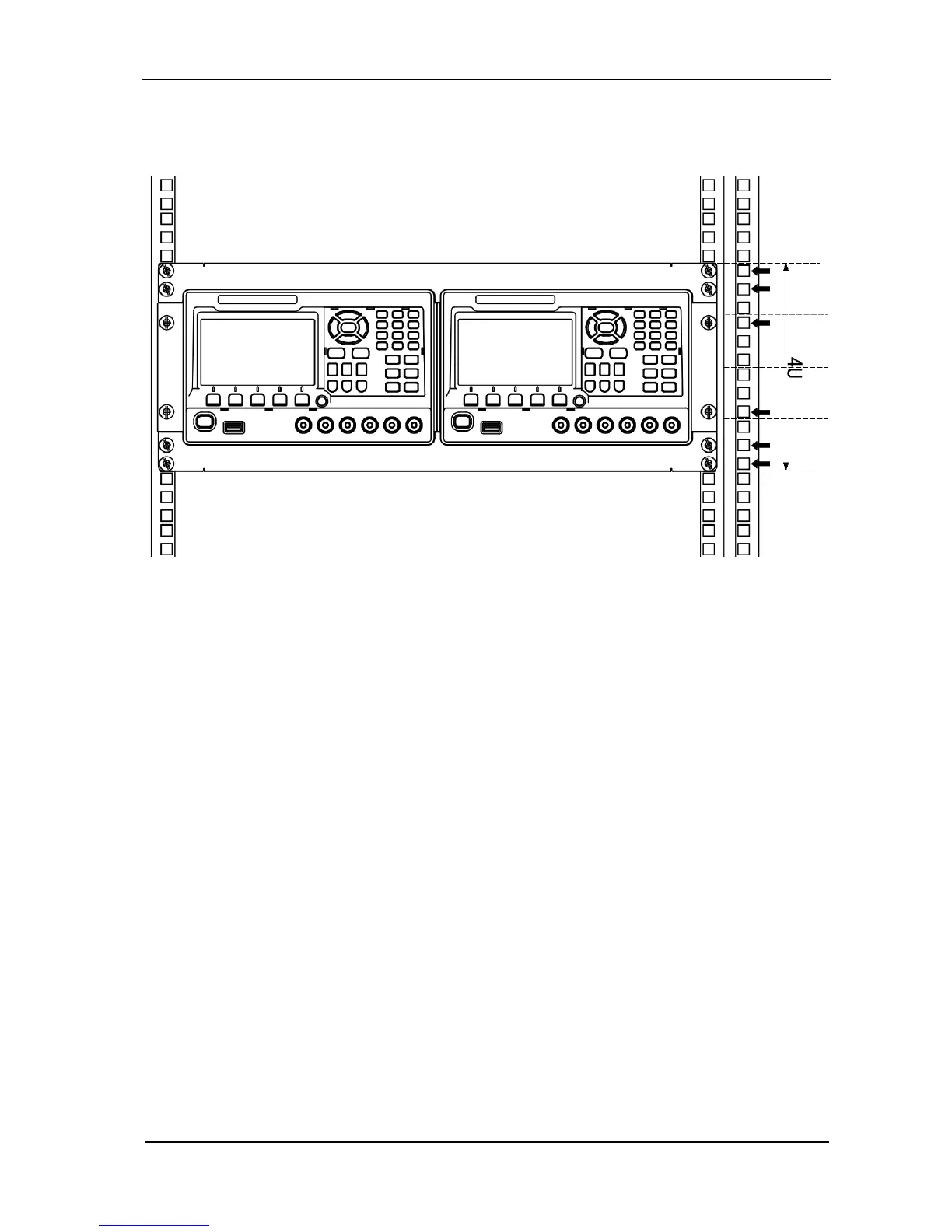

Figure 12: Installation Hole Positions on the Rack
