RM-DP-1 Rack Mount Kit Installation Guide 6
Installation Instruction
Installation Tool
A PH2 Phillips Screwdriver is recommended for installation.
CAUTION
Only authorized operators can execute the installation operation. The instrument may be
damaged or installed in rack incorrectly if the installation is not proper.
Installation Procedures
1. Remove the front and rear rubber covers: tear the front rubber cover off from the instrument,
then take off the two M4 screws at the rear panel, and at last remove the tilt tabs and the rear
rubber cover.

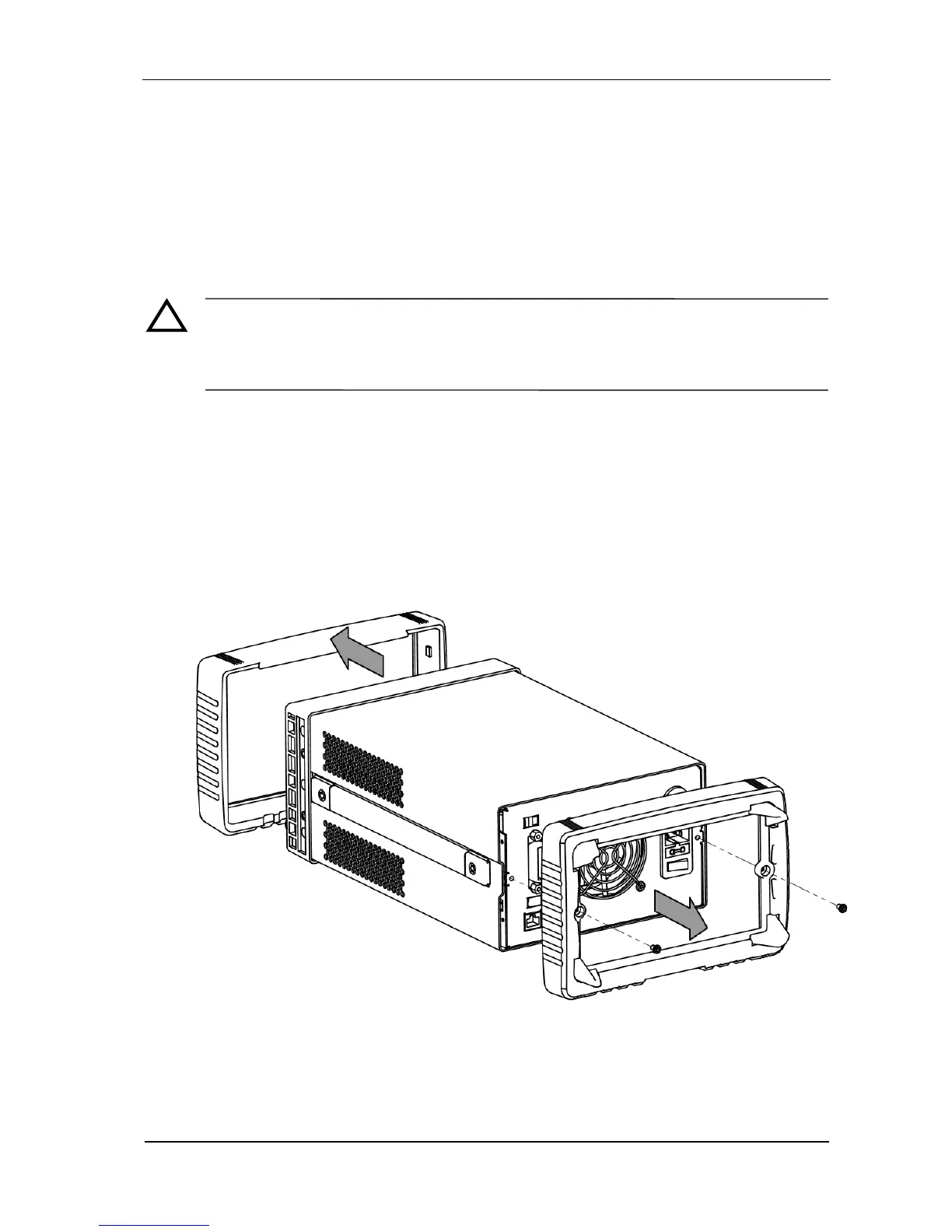

Figure 4: Remove the Front and Rear Rubber Covers
To Next Page
