RM-DP-1 Rack Mount Kit Installation Guide 10
Installation Notice
This rack mount kit can also be used to fix one instrument into the standard 19-inch cabinet.
1. Install the front guard board: place a front guard board at the place of the other instrument and
use 2 M4 screws to fix it with the instrument installed.

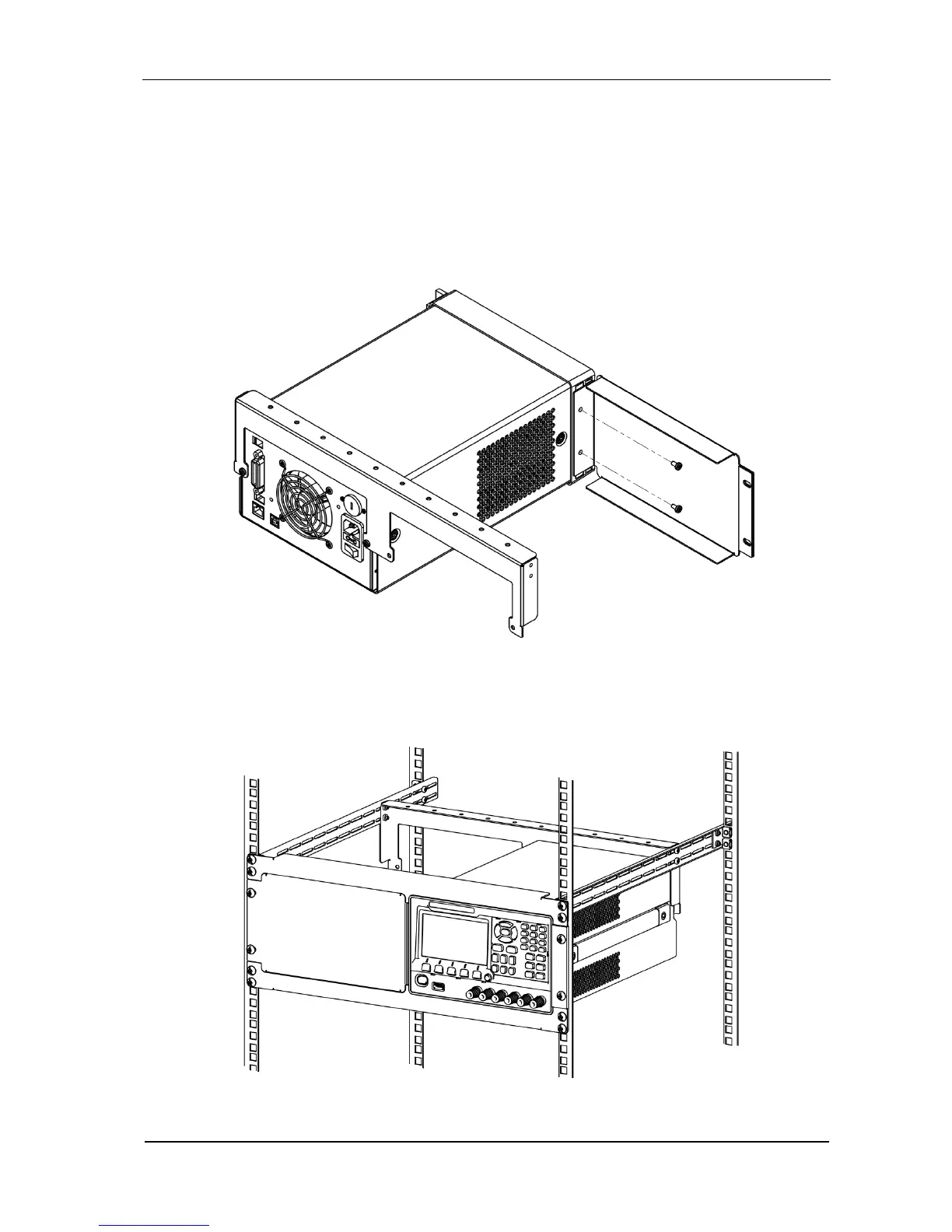

Figure 10: Install the Front Guard Board
2. Put into the cabinet: put the fixed instrument into the standard 19-inch cabinet and fix it using 4
M6 screws, 4 M6 square nuts and 4 M4 screws.
Figure 11: Put into the Cabinet
To Next Page
