RIGOL
RM-DP-1 Rack Mount Kit Installation Guide 7

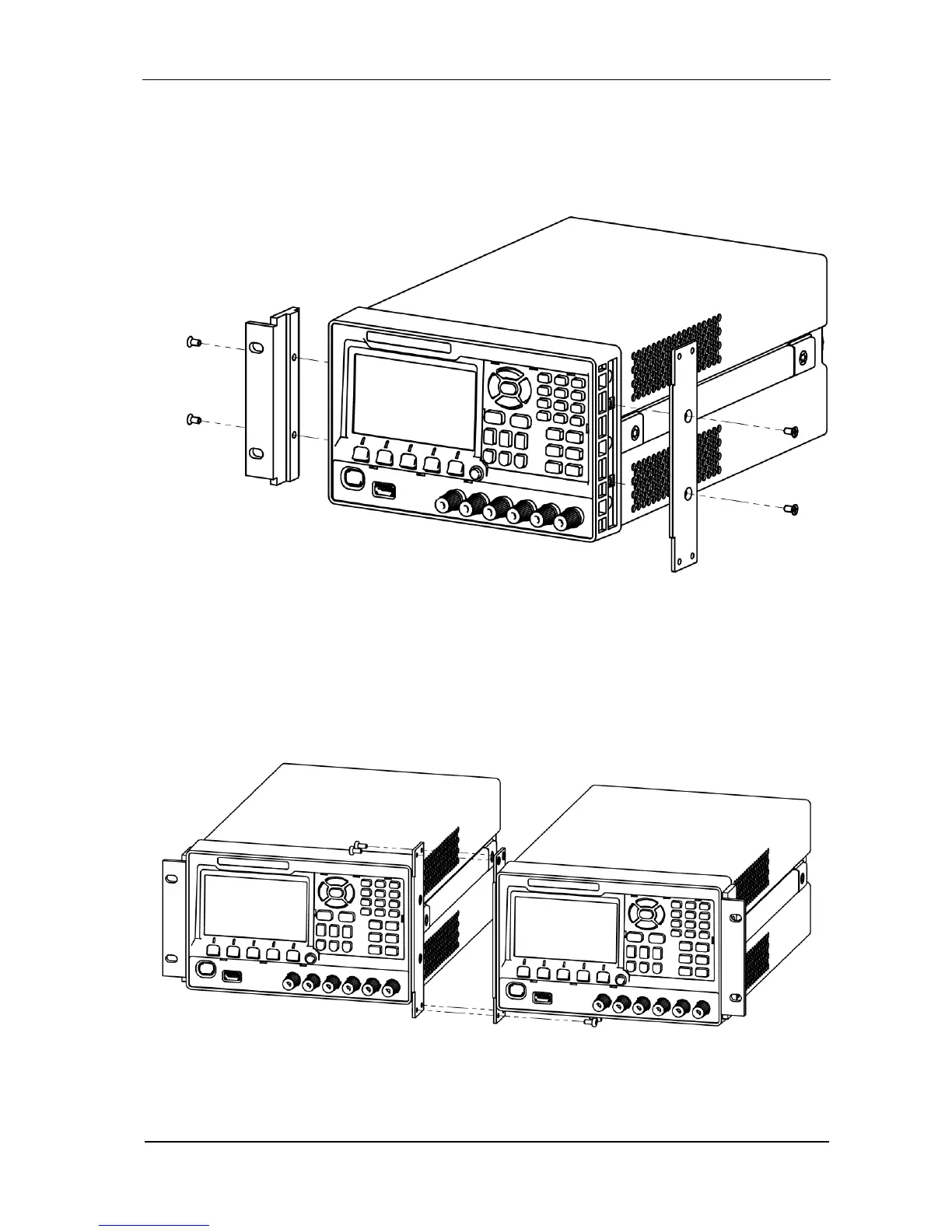

2. Install the joint parts: align the convexes on the fixing part and interconnector of the instrument
with the grooves on both sides of the instrument and insert them into the grooves, then fix them
with four M4 countersunk head screws.
Figure 5: Install the Joint Parts
3. Interconnect two Instruments: place two instruments side by side, align the holes on the
interconnectors of the two instruments and fix them with 4 M4 screws.
Figure 6: Interconnect two Instruments
