Rigol DP831A Programming Guide

Chapter 1 Programming Overview RIGOL
DP800 Programming Guide 1-3
(4) Use the GPIB interface:
 Connect the USB-GPIB interface converter to the USB Device interface at the rear panel of
DP800 to extend a GPIB interface.
 Connect the instrument with your PC using GPIB cable.
 Press Utility  I/O  GPIB to set the GPIB address of the instrument.
3 Check whether the connection is successful

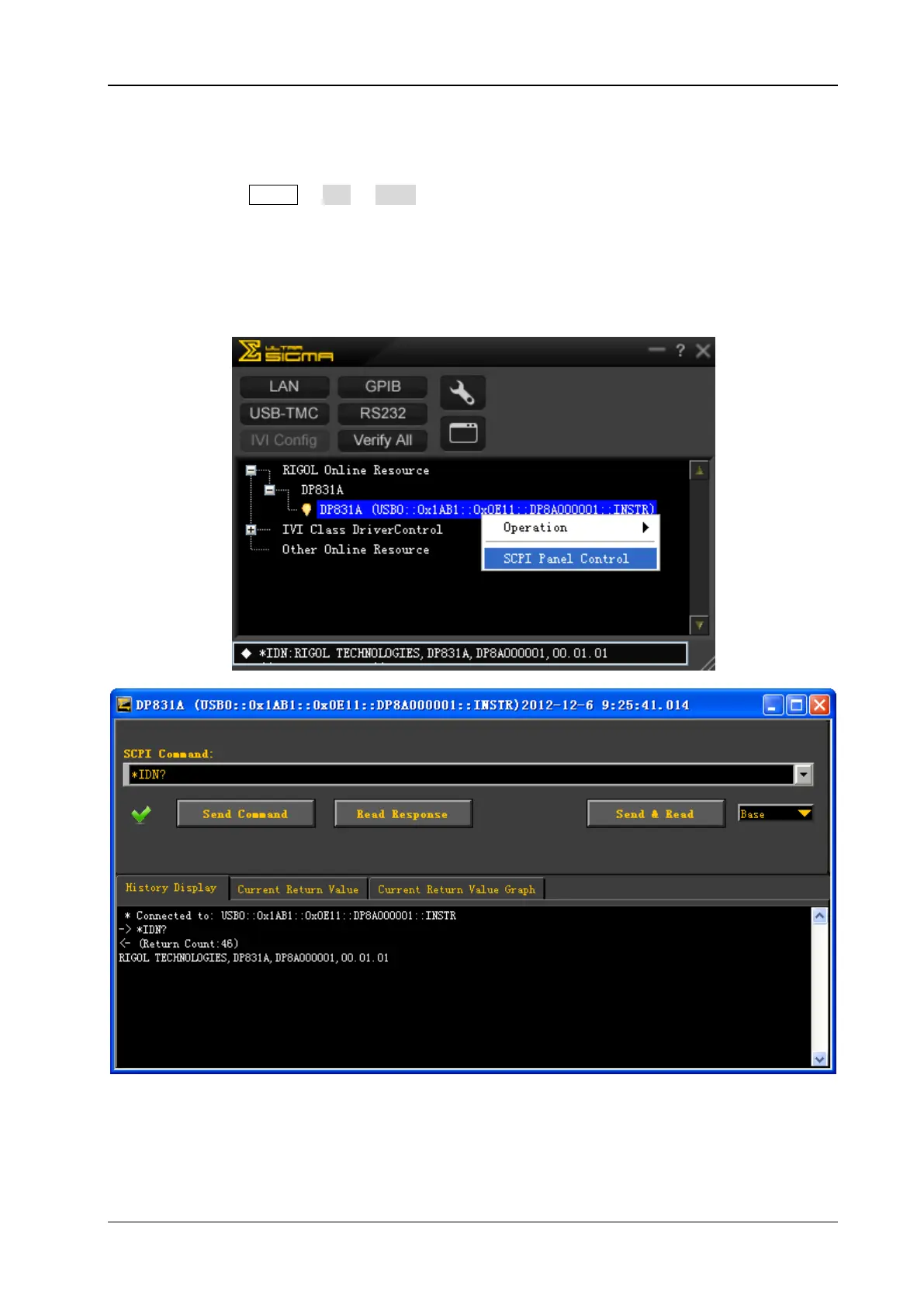

Run the Ultra Sigma, search for resource, right-click the resource name and select “SCPI Panel Control”
in the pop-up menu. Enter the correct command in the pop-up SCPI control panel and click Send
Command, Read Response or Send&Read to check whether the connection is successful, as
shown in the figure below (take the USB interface as an example).
