Rigol DP832 Manual

RIGOL
DP800 Quick Guide 15

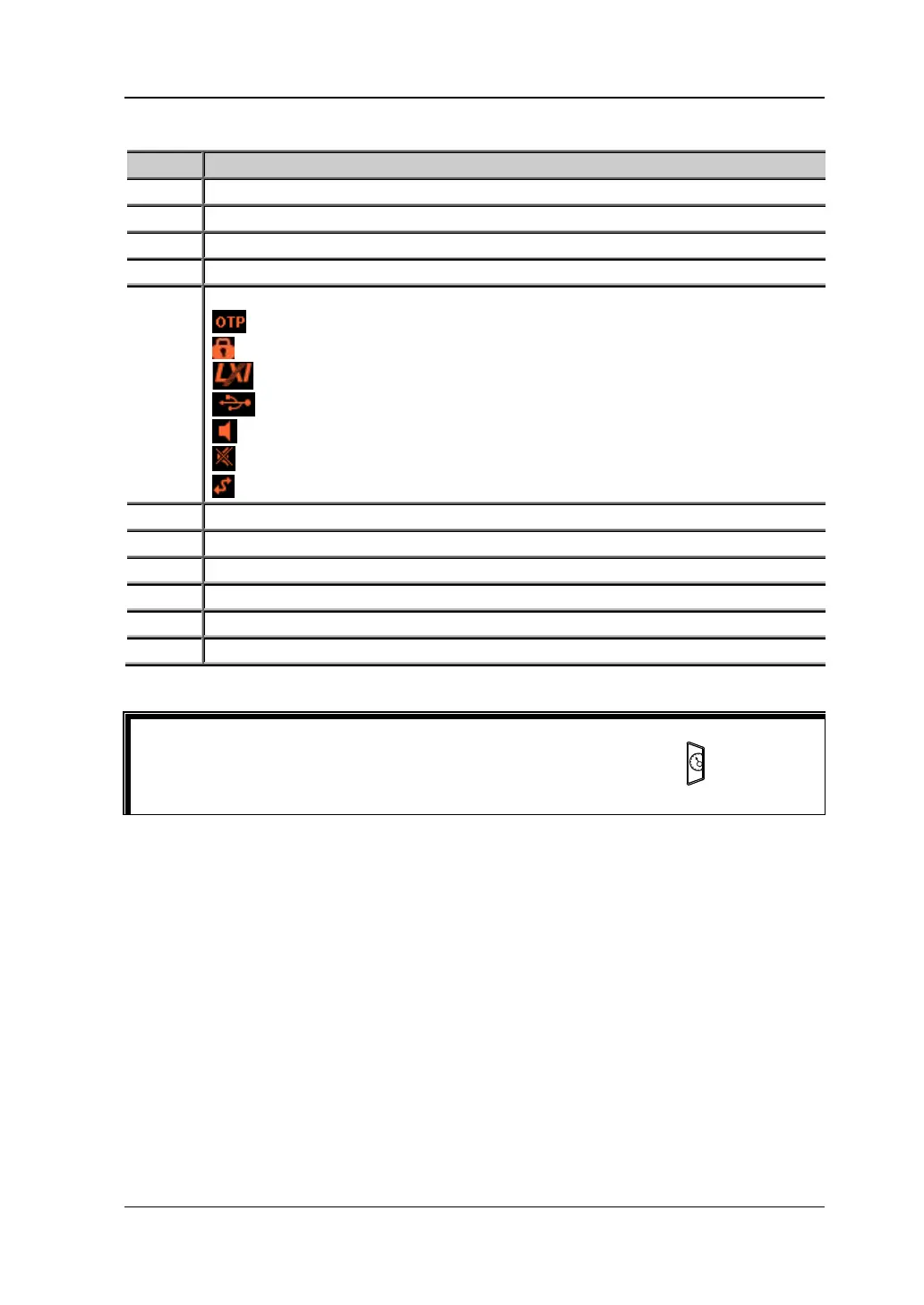

Table 4 User Interface Explanation
No.
Explanation
1
Channel Number
2
Channel Output Voltage/Current
3
Channel Output State
4
Channel Output Mode
5
Status Bar, display the system status labels.
: over-temperature protection is enabled.
: the front panel is locked.
: the network is connected.
: the USB device is recognized.
: the beeper is enabled.
: the beeper is disabled.
: the instrument is working in remote mode.
6
Actual Output Voltage
7
Actual Output Current
8
Actual Output Power
9
Voltage and Current Setting Values
10
Overvoltage Protection and Overcurrent Protection Setting Values
11
Menu Bar
Tip
When the current display mode is “Normal” or “Waveform”, press at the front
panel to quickly switch between the current display mode and dial display mode.

Rigol DP832 Specifications

General

Number of Outputs	3
Output Voltage Range CH1/CH2	0-30V
Output Voltage Range CH3	0-5V
Output Current Range CH1/CH2	0-3A
Output Current Range CH3	0-3A
Total Power	195 W
Power per Channel CH1/CH2	90 W
Power per Channel CH3	15 W
Voltage Resolution	1 mV
Current Resolution	1 mA
Interfaces	USB, RS232
Display	3.5 inch TFT LCD
