14 DP800 Quick Guide
(please refer to Table 2) that matches the actual input voltage.
4. Take out the fuse and replace it with a specified one (please refer to the “Input
Power Requirement” at the rear panel of the instrument or Table 3).
5. Re-insert the fuse seat into the power socket (pay attention to the direction).
WARNING
To avoid personal injuries, cut off the power supply before replacing the
fuse; to avoid electric shock or fire, select the power supply specification
that matches the actual input voltage and replace a fuse corresponding
to this specification before connecting to power.
User Interface
DP800 series power supply provides three kinds of display modes (normal, waveform
and dial). The default is normal. You can press Display  Disp Mode to select
different display mode. This section introduces the user interface layout under the
normal display mode (as shown in the figure below and
Table 4 on the next page).

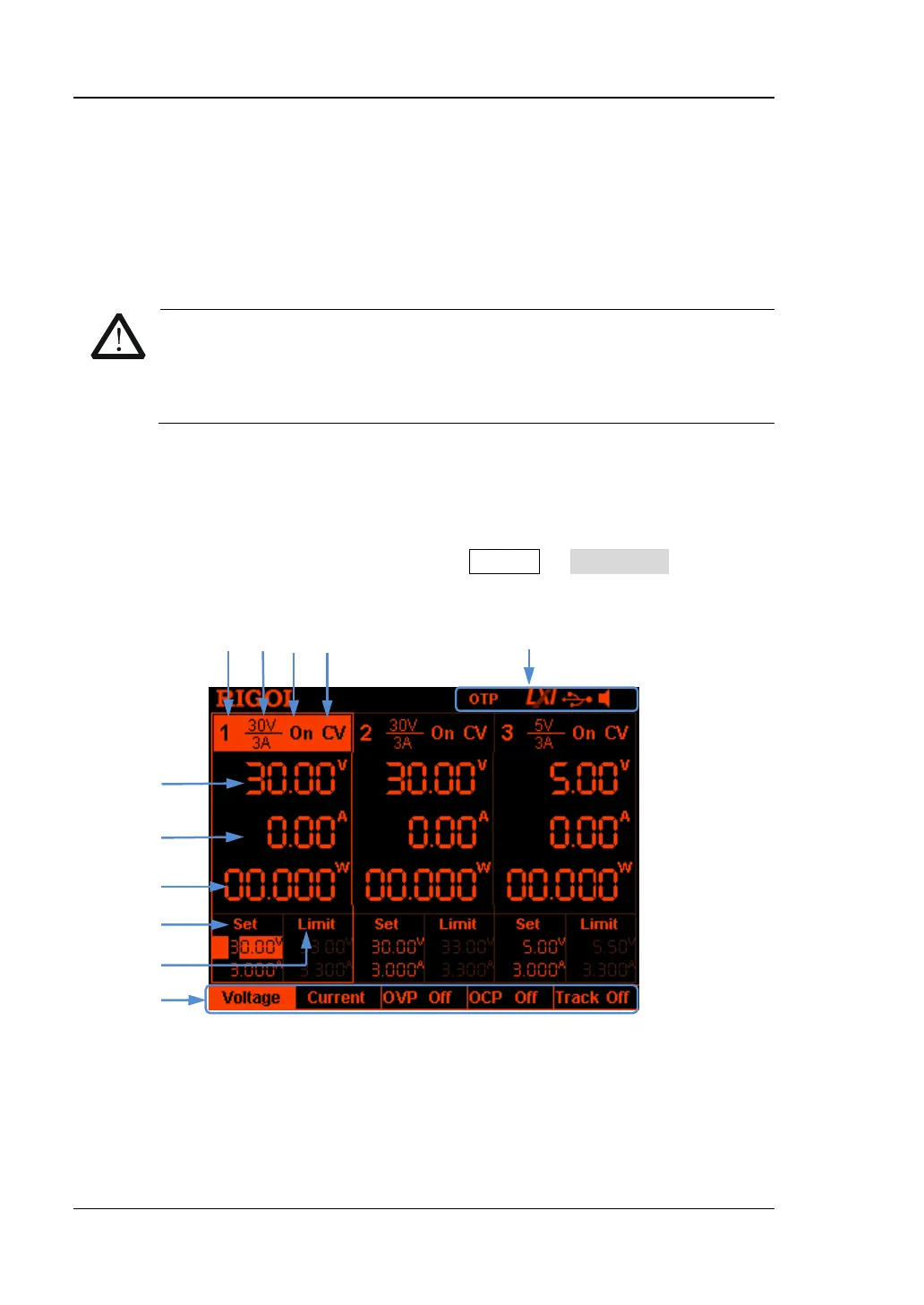

Figure 6 User Interface
1 2 3 4 5
6
7
8
9
10
11

Rigol DP832 Specifications

General

Number of Outputs	3
Output Voltage Range CH1/CH2	0-30V
Output Voltage Range CH3	0-5V
Output Current Range CH1/CH2	0-3A
Output Current Range CH3	0-3A
Total Power	195 W
Power per Channel CH1/CH2	90 W
Power per Channel CH3	15 W
Voltage Resolution	1 mV
Current Resolution	1 mA
Interfaces	USB, RS232
Display	3.5 inch TFT LCD
