User Interface
DP800A series power supply provides three kinds of display modes (normal,
waveform and dial). The default is normal and press Display  Disp Mode to set
the display mode to “Waveform” or “Dial”. In this section, DP831A is taken as an
example to introduce the interface layout under the normal display mode (as shown
in
Figure 8 and Table 2).

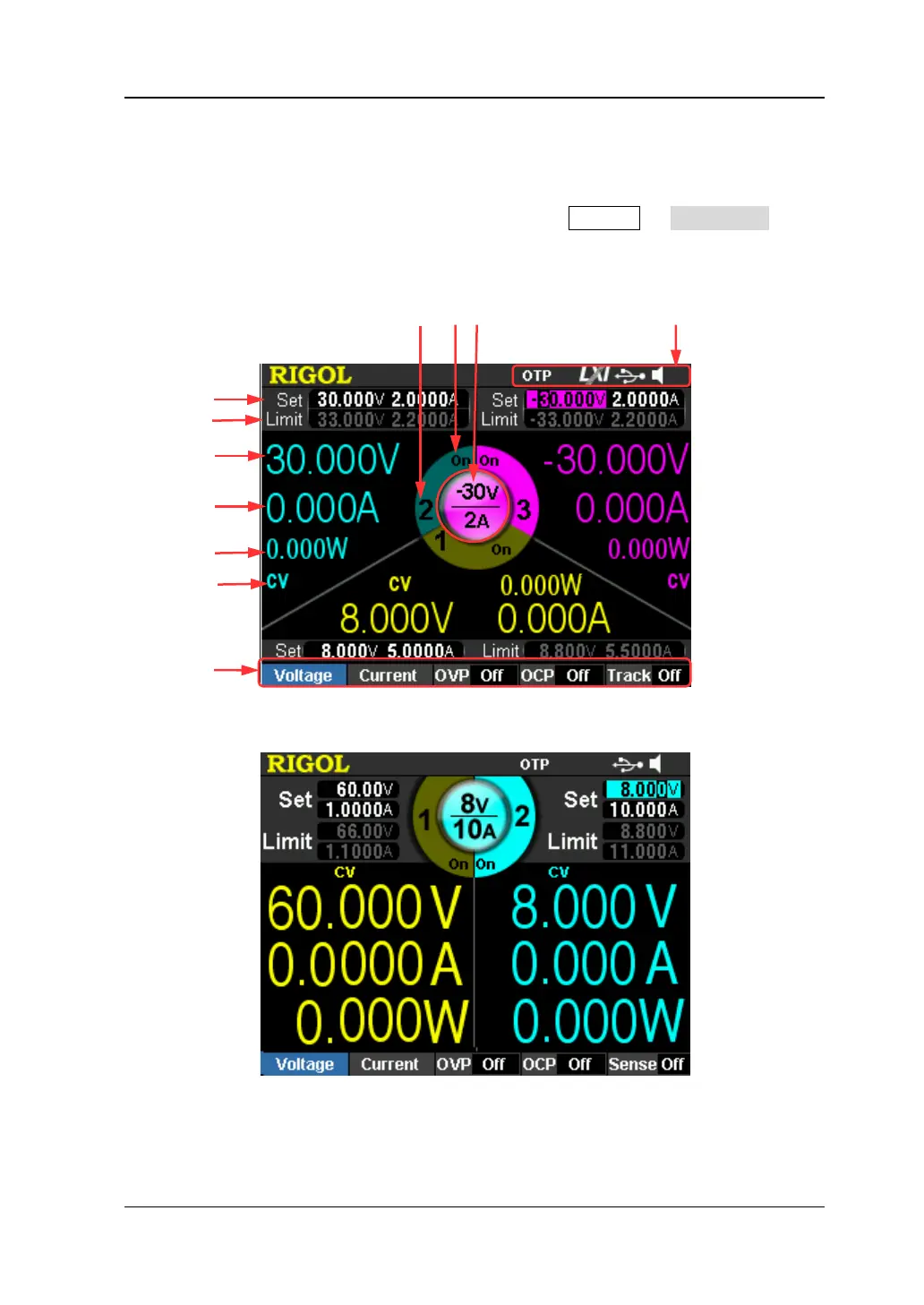

Figure 8 DP831A User Interface (Normal)
Figure 9 DP821A User Interface (Normal)
1
2
3
4
5
6
7
8 9 10 11
