Rigol DS1000E Series Service Guide

Chapter 2 Prepare for Use RIGOL
Service Guide for DS1000E, DS1000D Series
2-3
Power-On Inspection
Generally, normal operating voltage and frequency for DS1000E, DS1000D series
digital oscilloscope are 100-240V
RMS
and 45-440Hz respectively. Please connect one
terminal of the power cord to the socket in left side of the oscilloscope and the other
to the AC power source.

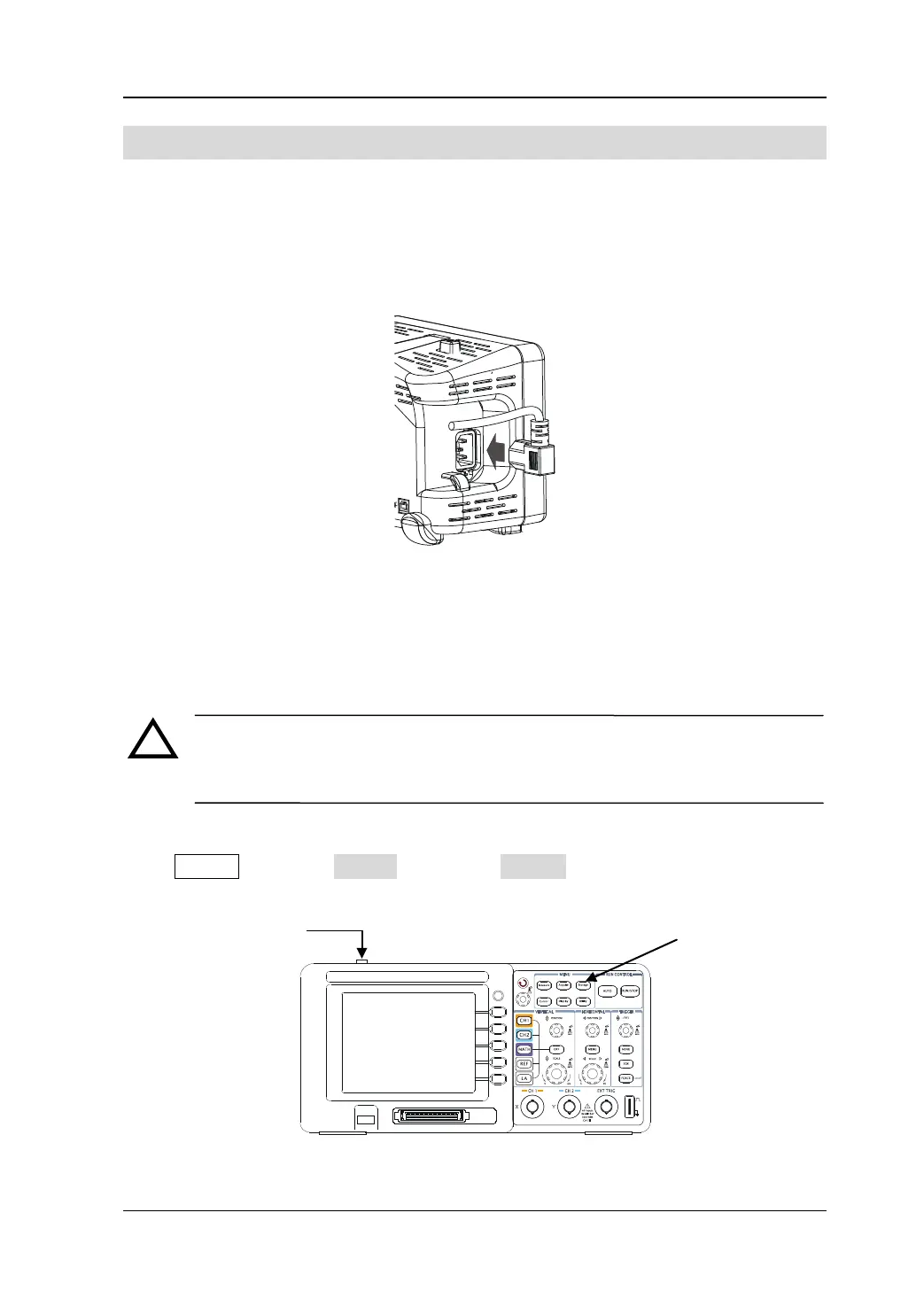

Figure 2-1 Connect the power cord
Press the power button on top of the oscilloscope, some keys on the front panel will
light for about 2 seconds until the normal display appears. And then you can operate
the oscilloscope.
WARNING
To avoid the electric shock, make sure the oscilloscope is under good
grounding before connecting AC power.
After power-on, the oscilloscope performs all the self-testing automatically. Then,
press Storage and select Storage to recall the Factory settings after passing test (the
screen will appear).
Figure 2-2 Power-on inspection
!
Storage button
Power button
