RIGOL Chapter 5 Disassembly and Assembly
Service Guide for DS1000E, DS1000D Series
5-10
Disassemble and Assemble the Mainboard

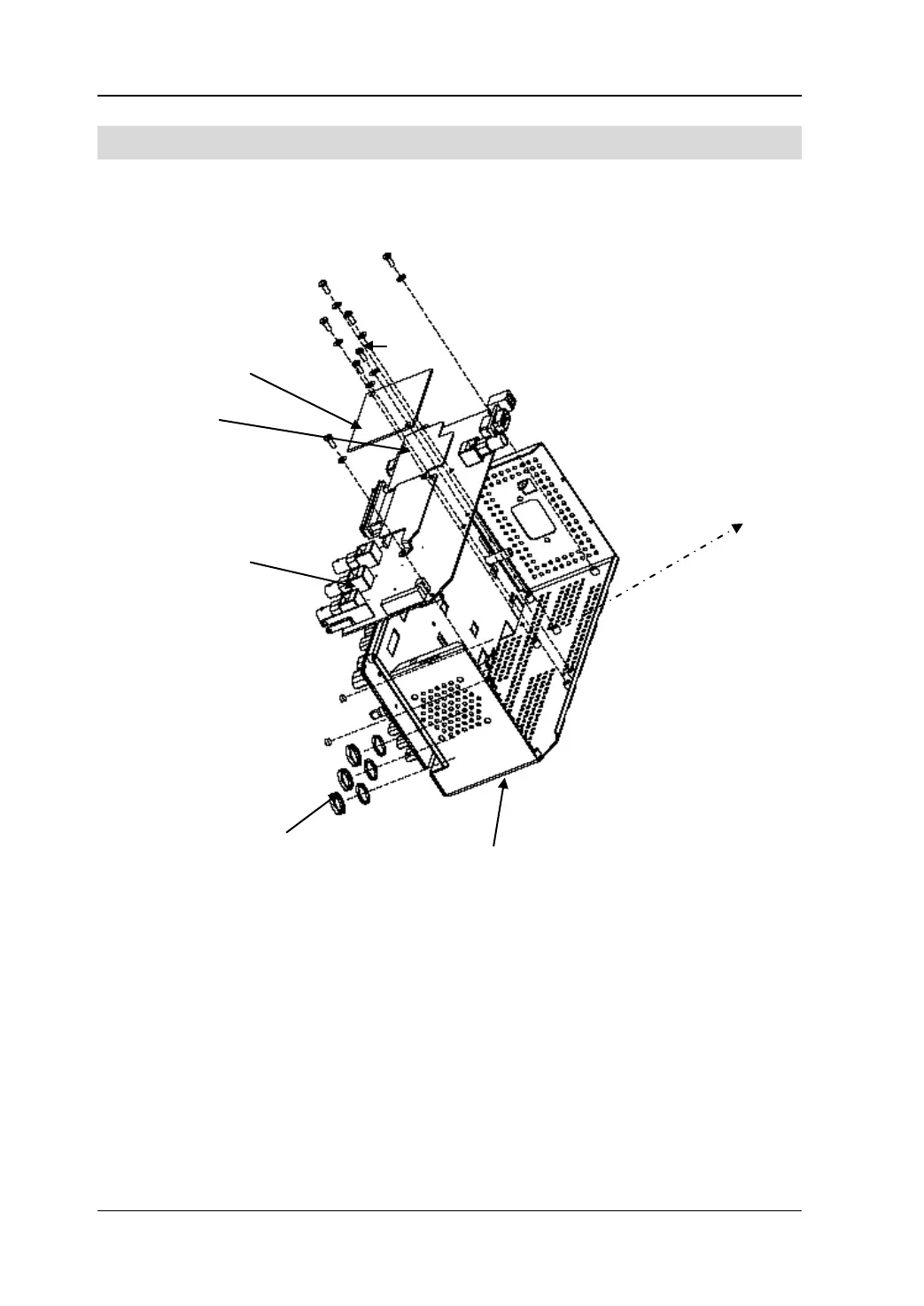

Figure 5-7 Disassemble and assemble the mainboard
Parts Explanations:
Bolts on the LA board ((M3*6 Pan head Torx recess composite machine screws): 2
Bolts on the cooling plate (M3*6 Pan head Torx recess composite machine screws):
3
Bolts for fixing the mainboard (M3*6 Pan head Torx recess composite machine
screws): 2
Stud on the mainboard (M3*6 Copper pillar): 3
Nuts at BNC terminal (BNC nuts): 3
Spacer at BNC fracture (BNC lock spacer): 3
Cooling Plate
LA Board
Mainboard
BNC Nut
Tank Body
