RIGOL Chapter 5 Disassembly and Assembly
Service Guide for DS1000E, DS1000D Series
5-8
Disassemble and Assemble the Panel

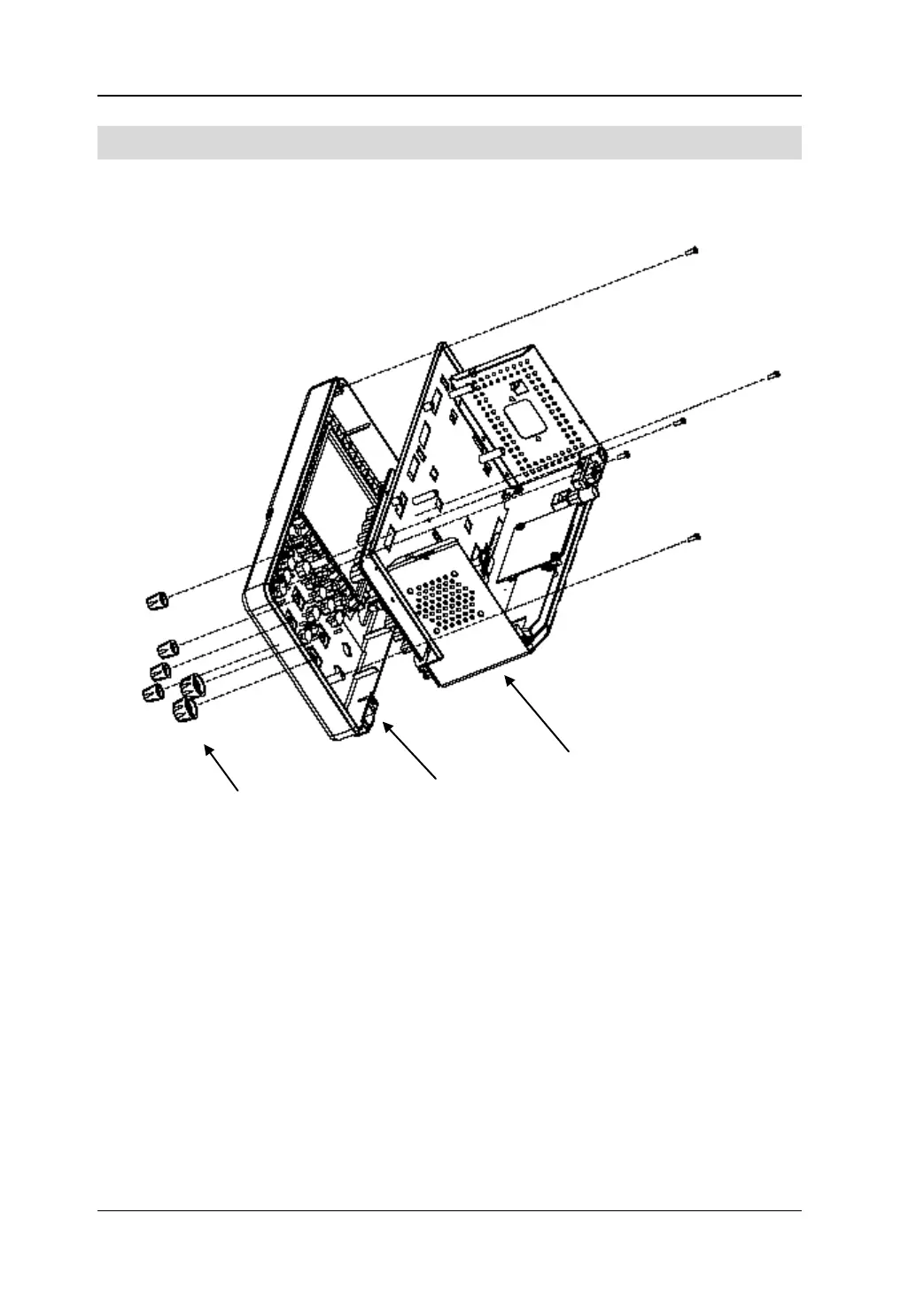

Figure 5-5 Disassemble and assemble the panel
Parts Explanations:
⑨ Small knobs: 4
⑩ Big knobs: 2
⑪ Bolts for fixing board on the tank body (M3*8 Pan head Torx recess Drilling tapping
screws
): 5
Disassemble steps:
1. Pull out the four small knobs ⑨ and two big knobs ⑩ (note do not damage the
board by something hard)
2. Backout the five bolts from the tank body using a TORX driver (T10) to remove
the board.
⑨
⑨
⑨
⑩
⑩
⑨
⑪
⑪
⑪
⑪
⑪
Button, Knob
Panel
Tank Body
