RIGOL Chapter 3 Performance Test
DS1000B Service Guide
3-2
Interface Test
USB Host Interface Test
Purpose: Test whether the USB Host interface works normally using a USB storage
device.
Tools:
 A set of DS1000B series digital oscilloscope
 A USB storage device
Steps:
1. Insert the USB storage device into the USB Host interface at the front panel or
rear panel of the oscilloscope.

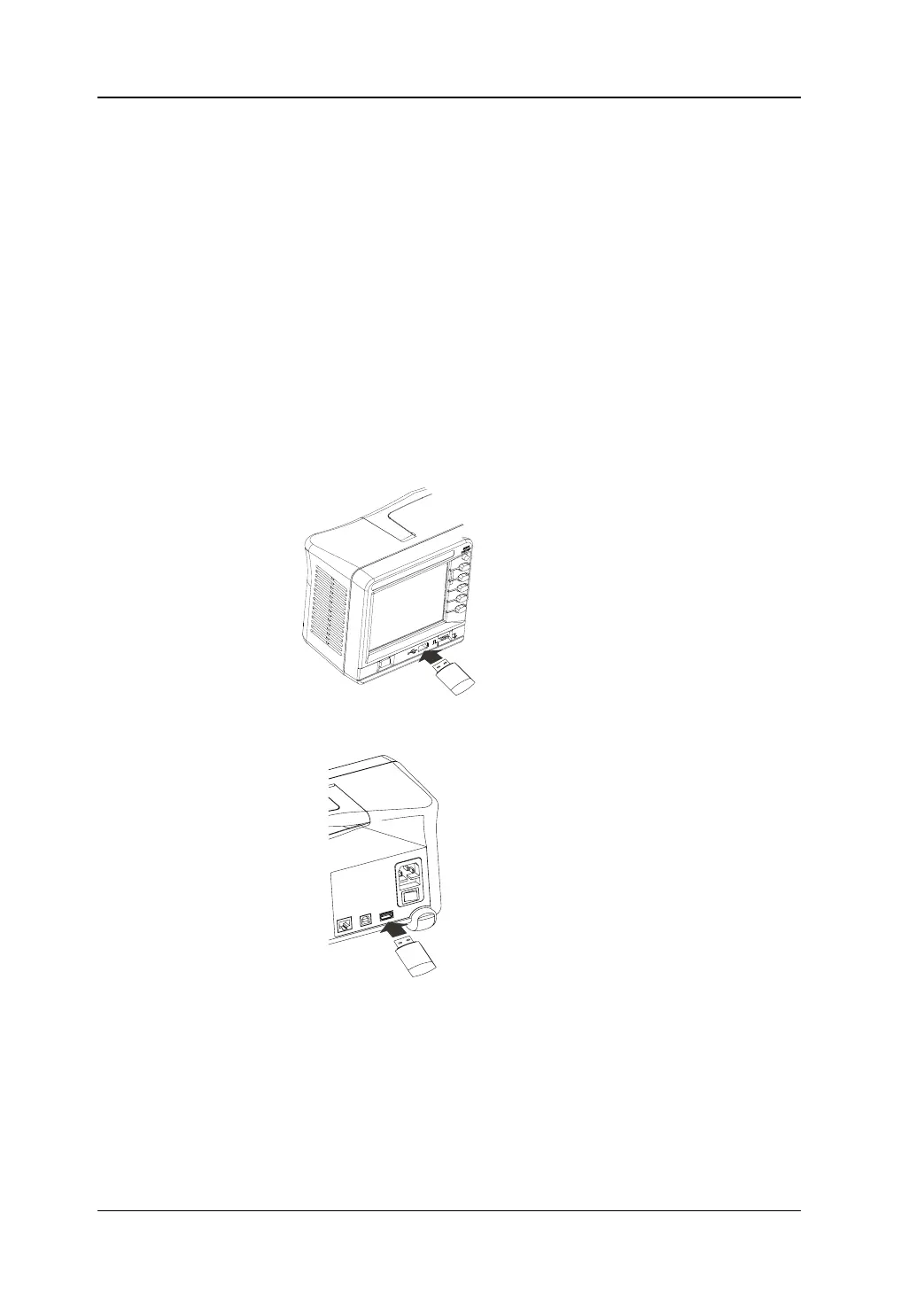

Figure 3-1 Connection of the USB Host Interface at the Front Panel
Figure 3-2 Connection of the USB Host Interface at the Rear Panel
2. When the USB storage device is correctly detected and the USB Host interface
works normally, “USB device installed” is displayed on the screen. Otherwise,
please check or repair this interface.
