Chapter 7 Replaceable Parts RIGOL
DS1000B Sevice Guide
7-1
Chapter 7 Replaceable Parts
RIGOL provides some replaceable parts for users in order to maintain or update the
instrument. For the details, please refer to Figure 7-1 and Table 7-1. Note that the
numbers in the figure correspond to those in the table.
19 18
20
3
2
4
11
16
5
27
24
22
10
2825
15
142917 8
9
21121316 7 2326

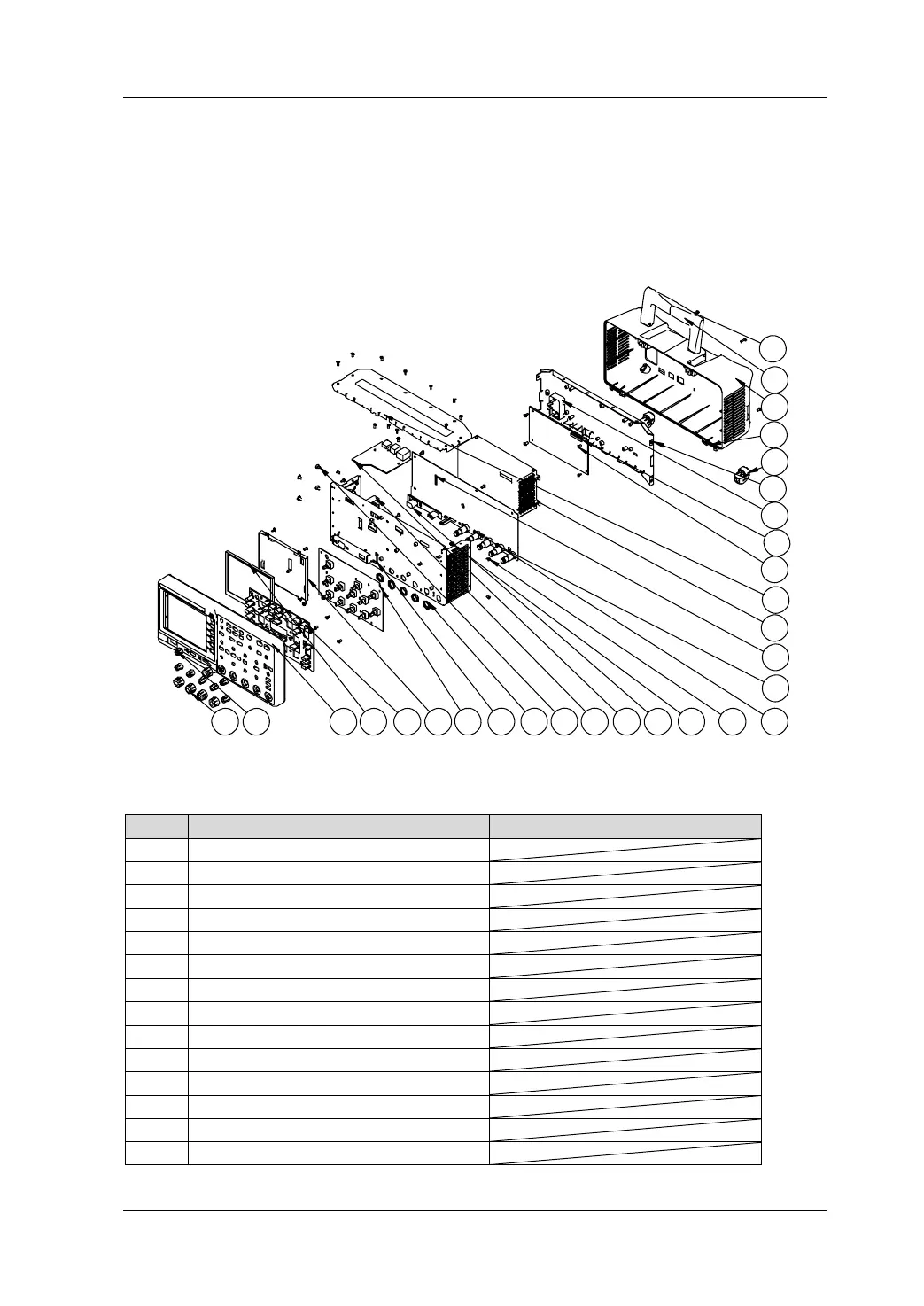

Figure 7-1 DS1000B Exploded View
Table 7-1 Replaceable Part List
No.
Part Name
Specification
1
DS1000B Panel
2
DS1000B Cover
3
DS1000B Handle
4
DS1000B Front Supporting Leg
5
DS1000B Rear Supporting Leg
6
DS1000B Large Knob
7
DS1000B Small Knob
8
DS1000B Chassis
9
DS1000B Upper Cover
10
DS1000B Power Shield Cover
11
DS1000B Rear Cover
12
LCD Fixing Frame
13
DS1000B Rubber Key
14
DS1000B Power Key
