Chapter 5 Disassemble and Assemble RIGOL
DS1000B Sevice Guide
To Disassemble and Assemble the Main Board

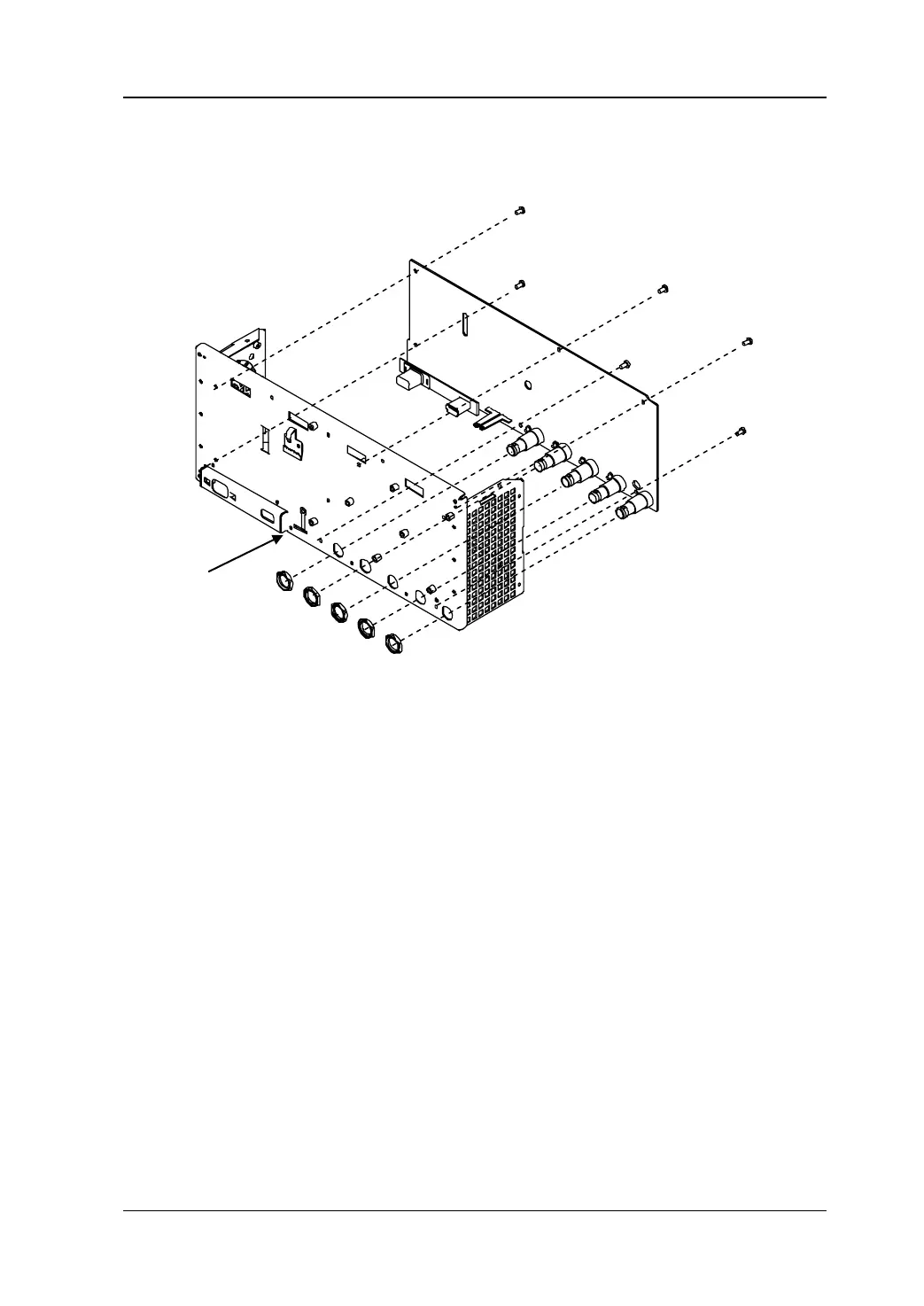

Figure 5-8 To Disassemble and Assemble the Main Board
Part Explanations:
⑭ 6 screws (M3*6 pan head torx composite machine screw with plain washer) fixing
the main board.
⑮ 5 nuts (BNC nut) at the BNC terminals.
Disassemble steps:
1. Remove the 6 screws (⑭) fixing the main board using the screwdriver (T10).
2. Remove the 5 nits (⑮) at the BNC terminals using BNC socket.
3. Disconnect the ground finger on the metal chassis and the ground terminal of the
main board using an electric soldering iron.
4. Remove the main board gently.
To Next Page
