RIGOL Chapter 5 Disassemble and Assemble
DS1000B Service Guide
5-4
To Disassemble and Assemble the Cover

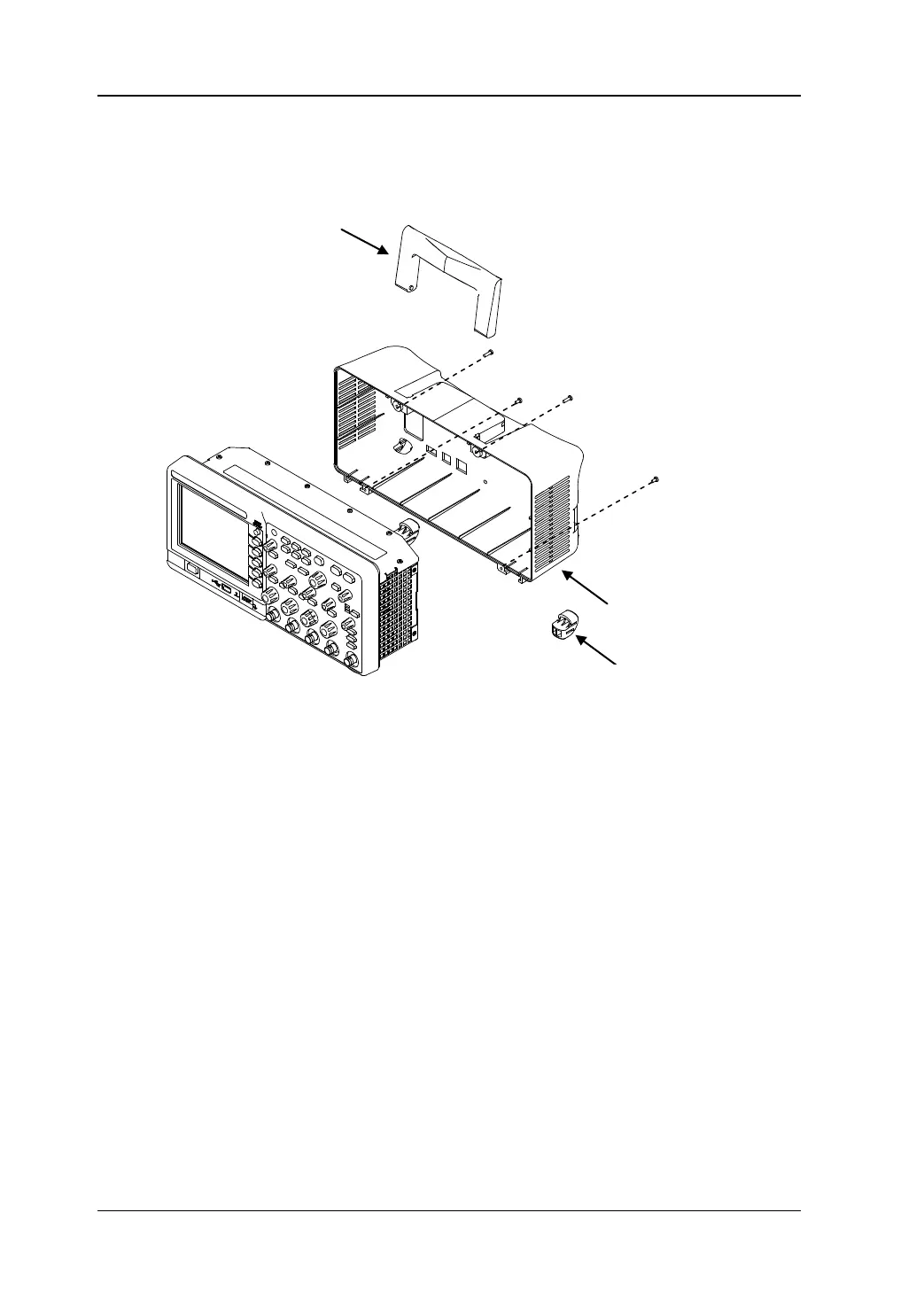

Figure 5-2 To Disassemble and Assemble the Cover
Part Explanations:
2 screws (M3*12 pan head torx pointed self-tapping screw) at the bottom of the
cover.
2 screws ((small nailhead) M3*10 pan head torx machine screw) at the handle
groove.
Disassemble steps:
1. Remove the 4 screws ( and ) using the screwdriver (T10).
2. Remove the cover gently.
Assemble steps:
The assemble steps are the reverse of the disassemble steps. The same goes for the
introductions below.
Handle
Foot Mat
Cover
