Rigol DS1104Z Plus Quick Guide

RIGOL
22 DS1000Z Quick Guide
To Use the Built-in Help System
The help system of this oscilloscope provides instructions for all the function keys
(including menu keys) on the front panel. Press Help to open the help interface and
press again to close the interface. The help interface mainly consists of two parts.
The left is "Help Options" and the right is "Help Display Area".

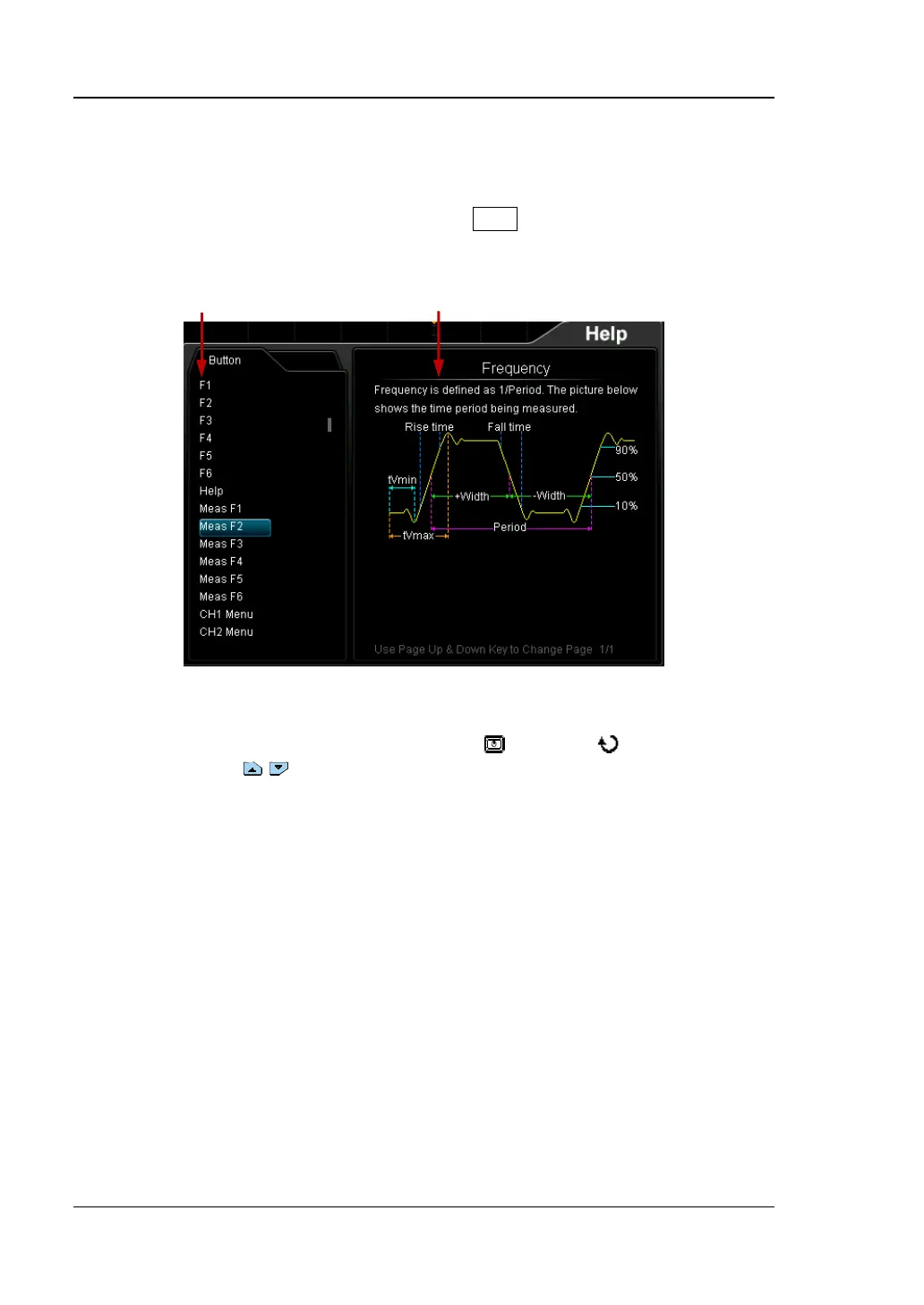

Figure 15 Help Information
You can press the button (except the Power key
, the knob and the menu
Page Up/Down key
/ ) on the front panel directly to get the corresponding help
information in the "Help Display Area".
Help Options Help Display Area

Rigol DS1104Z Plus Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Memory Depth	24 Mpts
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	5 ns/div to 50 s/div
Connectivity	USB Host, USB Device, LAN, AUX
Vertical Resolution	8 bits
Power Supply	100-240 V AC, 45-440 Hz
Display	7 inch TFT LCD
Trigger Types	Edge, Pulse, Video, Slope
Input Impedance	1 MΩ ± 2%
