RIGOL Chapter 1 Quick Start
1-6 MSO1000Z/DS1000Z User’s Guide
Connect the logic probe:
1. Connect the single-wire terminal of the logic probe to the digital channel input
terminal at the front panel of the oscilloscope in the correct direction.
2. Connect the signal under test to the other terminal of the logic probe. MSO1000Z
series is provided with the RPL1116 logic probe (standard) which provides two
connecting methods to connect the signal under test to realize convenient and
flexible detection. For the details, please refer to the
RPL1116 Logic Probe User’s
Guide
.

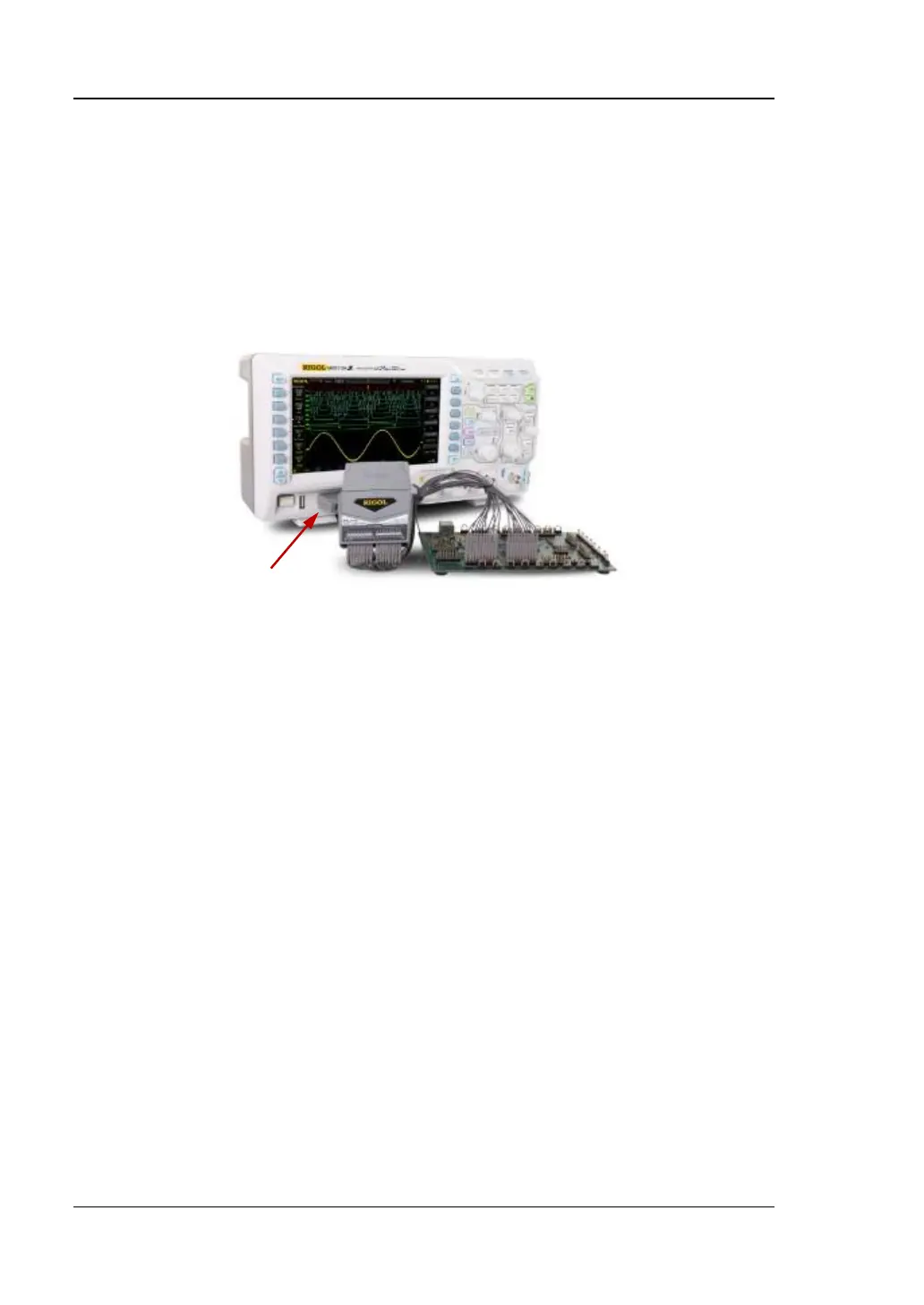

Figure 1-6 To Connect the Logic Probe
Note: The digital channel input terminal does not support hot plug. Please do not
insert or pull out the logic probe when the instrument is powered on.
Digital Channel Input Terminal
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com

Rigol DS1104Z Plus Specifications

General

Bandwidth	100 MHz
Channels	4
Sample Rate	1 GSa/s
Memory Depth	24 Mpts
Waveform Capture Rate	30, 000 wfms/s
Vertical Sensitivity	1 mV/div to 10 V/div
Timebase Range	5 ns/div to 50 s/div
Connectivity	USB Host, USB Device, LAN, AUX
Vertical Resolution	8 bits
Power Supply	100-240 V AC, 45-440 Hz
Display	7 inch TFT LCD
Trigger Types	Edge, Pulse, Video, Slope
Input Impedance	1 MΩ ± 2%
