RIGOL Chapter 1 Disassemble and Assemble
1-4 MSO4000/DS4000 Service Guide
To Disassemble the Rear Cover

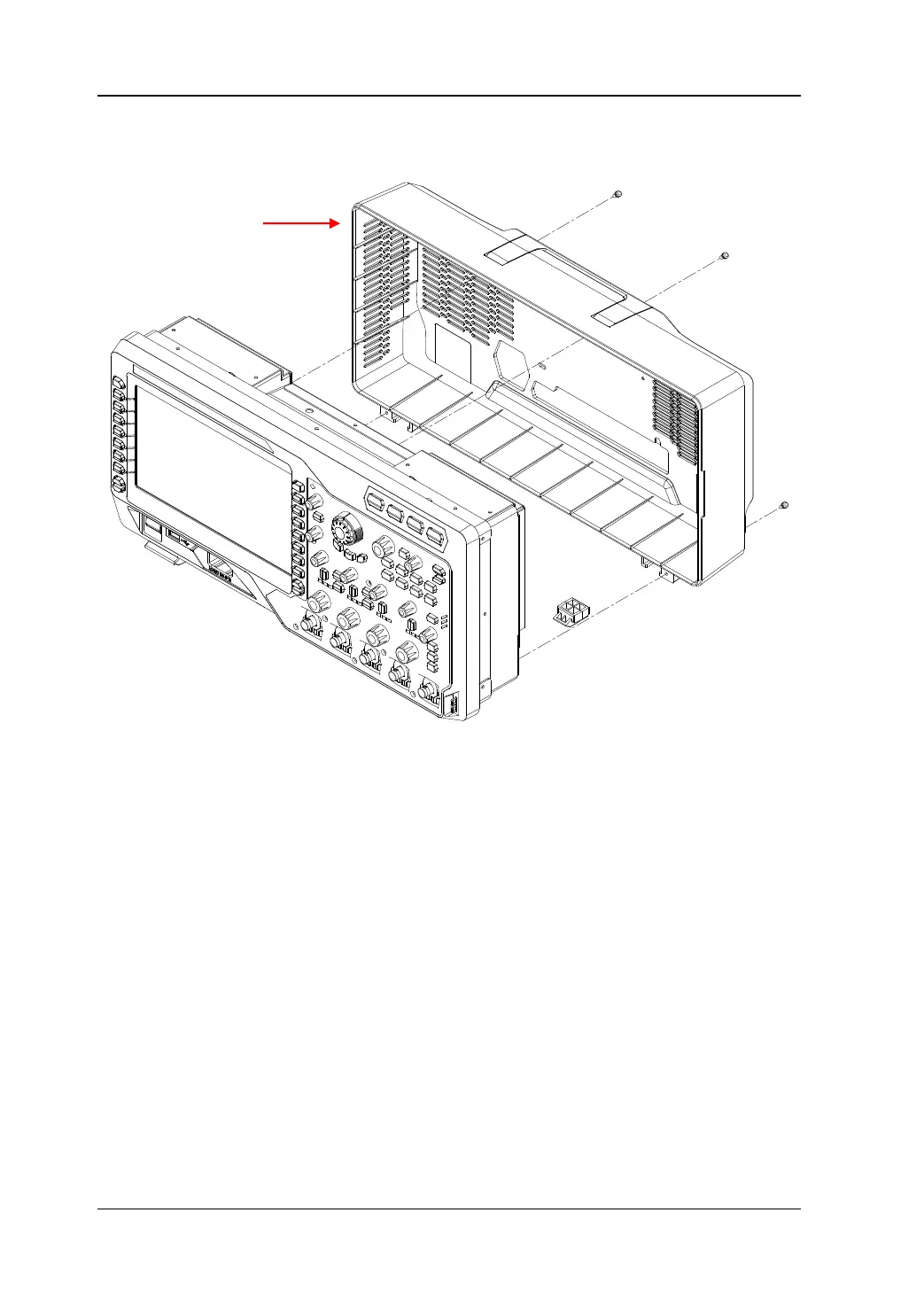

Figure 1-2 To Disassemble the Rear Cover
Part Explanations:
① 2 screws (torx countersunk head screw #FM3*10) at the handle groove.
② 2 screws (torx pan head screw assembly #FW3*8) at the bottom of the cover (the
positions of some of the screws are not marked out in the figure above).
Disassemble Steps:
1. Remove the 2 screws (①) at the handle groove using the screwdriver (T10).
2. Remove the 2 screws (②, one on each side) at the bottom of the cover using the
screwdriver (T10).
3. Remove the rear cover gently.
①
①
