To Use the Security Lock
If needed, you can use the security lock (please buy it yourself) to lock the
oscilloscope to a fixed location. The method is as follows, align the lock with the lock
hole and plug it into the lock hole vertically, turn the key clockwise to lock the
oscilloscope and then pull the key out.

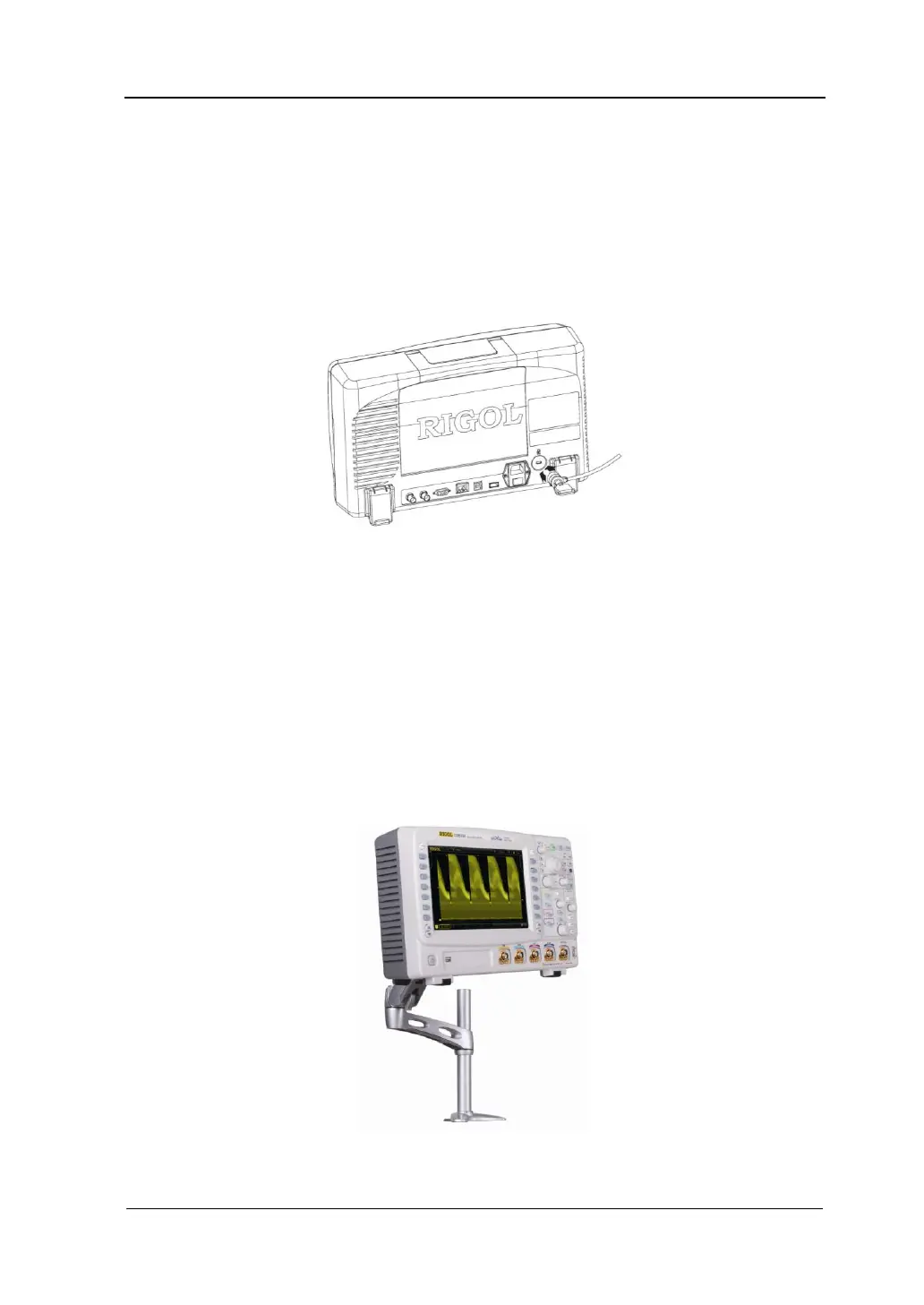

Figure 14 To Use the Security Lock
To Use the Desk Mount Instrument Arm
Using an arm, the oscilloscope could be mounted on the work desk to save your
operation space. The height and angle of the instrument could be adjusted freely to
acquire supreme comfort and efficiency and to convenient your measurement and
view. If needed, please buy and install corresponding option.
Figure 15 Working Sketch
