RIGOL
DS6000 Quick Guide
8
Front
Panel
Overview

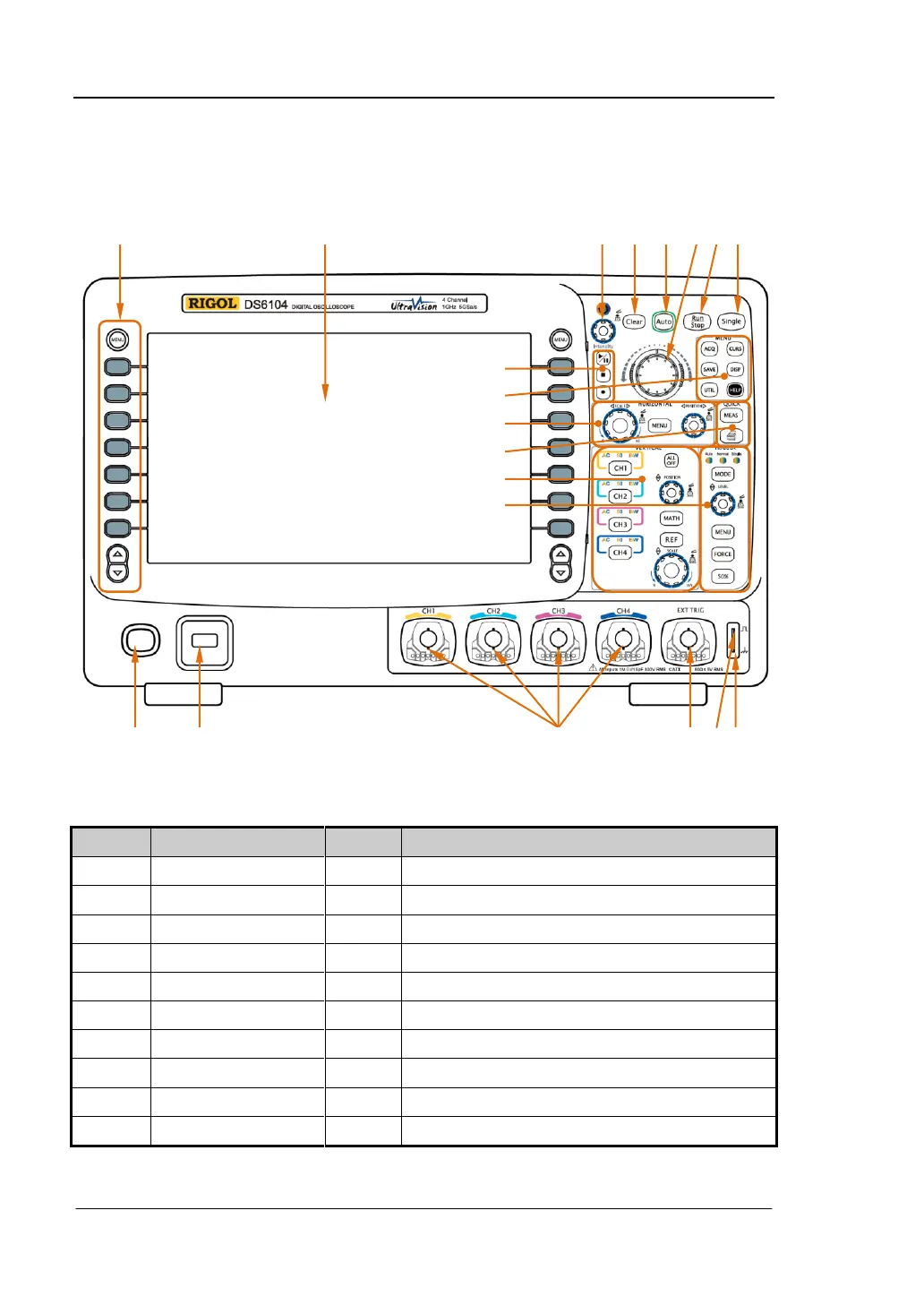

Figure 11 Front Panel Overview
No.
Description
No.
Description
①
Menu
⑪
HORIZONTAL Area
②
LCD
⑫
Measurement Setting and Quick Print
③
Knob
⑬
VERTICAL Area
④
Clear
⑭
TRIGGER Area
⑤
Auto
⑮
Power Key
⑥
WaveFinder
⑯
USB HOST Port
⑦
Run/Stop
⑰
Analog Channel Input Terminal
⑧
Single
⑱
EXT TRIG Input Terminal
⑨
Record/Playback
⑲
Probe Compensation Signal Output Terminal
⑩
Function Menu
⑳
Probe Compensation Ground Terminal
⑨
⑩
⑪
⑫
⑬
⑭
⑮ ⑯ ⑰ ⑱ ⑲⑳
① ② ③ ④ ⑤ ⑥ ⑦ ⑧
