Rigol DS7000 Series User Manual

Chapter 11 Protocol Decoding RIGOL
MSO7000/DS7000 User Guide 11-21
 Adjust the vertical position of the bus
Press Position, and then rotate the multifunction knob to adjust the
vertical display position of the bus. You can also rotate Wave Vertical
POSITION to adjust the vertical display position of the bus.
 Set the label display
Press Label to enable or disable the label display of the SPI decoding bus.
When enabled, the bus label "SPI-MISO" and/or "SPI-MOSI" will be
displayed at the upper-left side of the bus (when the bus display is
enabled).
 Event table
Press Event Table to enter the event table setting menu. The event table
displays the detailed decoding information in time order in the form of a
table, so as to better observe the long decoded data. The decoding
information includes the decoded data (MISO and/or MOSI), the
corresponding line number, time, and error information (MISO and/or
MOSI).
Note: When the source channel of MISO or MOSI is set to "OFF",
information of the data line is not displayed in the data table.
 Open or close the event table: Press Event Table continuously to
enable or disable the event table. When you enable the event table,
the following figure is displayed, as shown in Figure 11-8. You can also
enable the touch screen to tap the icon at the upper-right corner of
the table to close the event table. Besides, when the operating status is
"STOP", you can also rotate the multifunction knob to select a
specified line and view the corresponding decoding information.

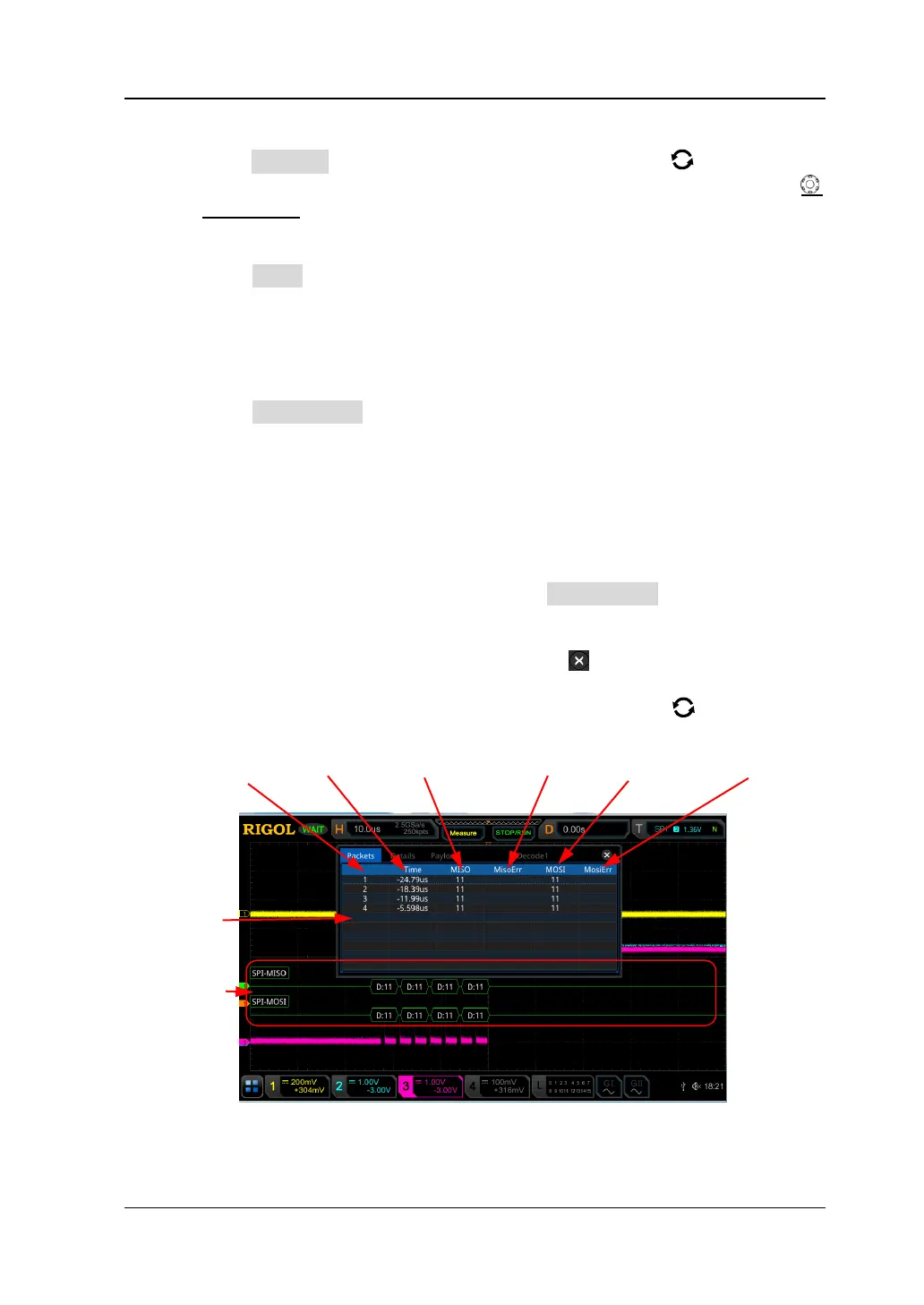

Figure 11-8 SPI Decoding Event Table
Line Number Time MISO Decoding Data MISO Error MOSI Decoding Data MOSI Error
Event Table
SPI Bus
