Rigol DSA1030A series Performance Verification Guide

Chapter 2 Performance Verification Test RIGOL
DSA1000A/DSA1000 Performance Verification Guide
2-9
Frequency Response Test
Specification
Frequency Response
10 dB attenuation, relative to 50 MHz, 20 ℃ to 30 ℃
DSA1030A DSA1030
100 kHz to 3 GHz (preamplifier off) < 0.7 dB < 1.0 dB
1 MHz to 3 GHz (preamplifier on) < 1.0 dB < 1.4 dB
Test Devices
1. Signal Generator × 1
2. Power Meter × 1
3. Power Sensor × 1
4. Power Meter Connecting Cable × 1
5. Dual-N Cable × 1
6. Dual-BNC Cable × 1

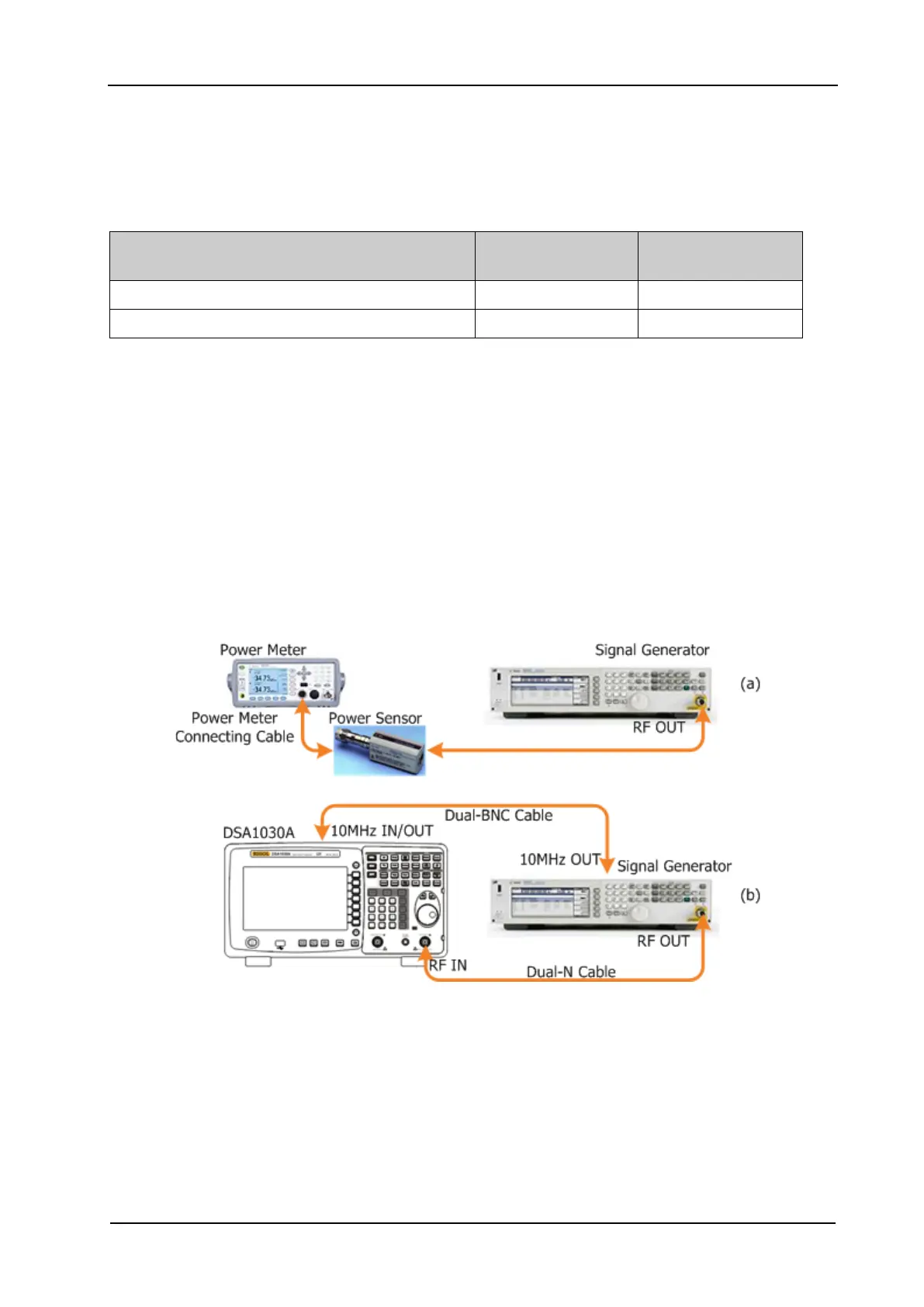

Test Connection Diagram
Figure 2-4 Frequency Response Test Connection Diagram
