Rigol DSA1030A series Performance Verification Guide

RIGOL Chapter 2 Performance Verification Test
DSA1000A/DSA1000 Performance Verification Guide
2-22
Input Attenuation Error Test
Specification
Input Attenuation Error
fc = 50 MHz, peak detector, preamplifier off, relative to 10 dB attenuation, input signal = -10 dBm, 20℃ to 30℃
Switch Uncertainty
DSA1030A DSA1030
< (0.3 + 0.01×attenuator setting) dB < 0.8 dB
Test Devices
1. Signal Generator × 1
2. Power Meter × 1
3. Power Sensor × 1
4. Power Meter Connecting Cable × 1
5. Program-controlled Attenuators:
Attenuator/Switch Driver × 1
Step Attenuator (Step: 1 dB) × 1
Step Attenuator (Step: 10 dB) × 1
Attenuator Interconnect Kit × 1
6. Dual-N Cable × 2
Test Connection Diagram

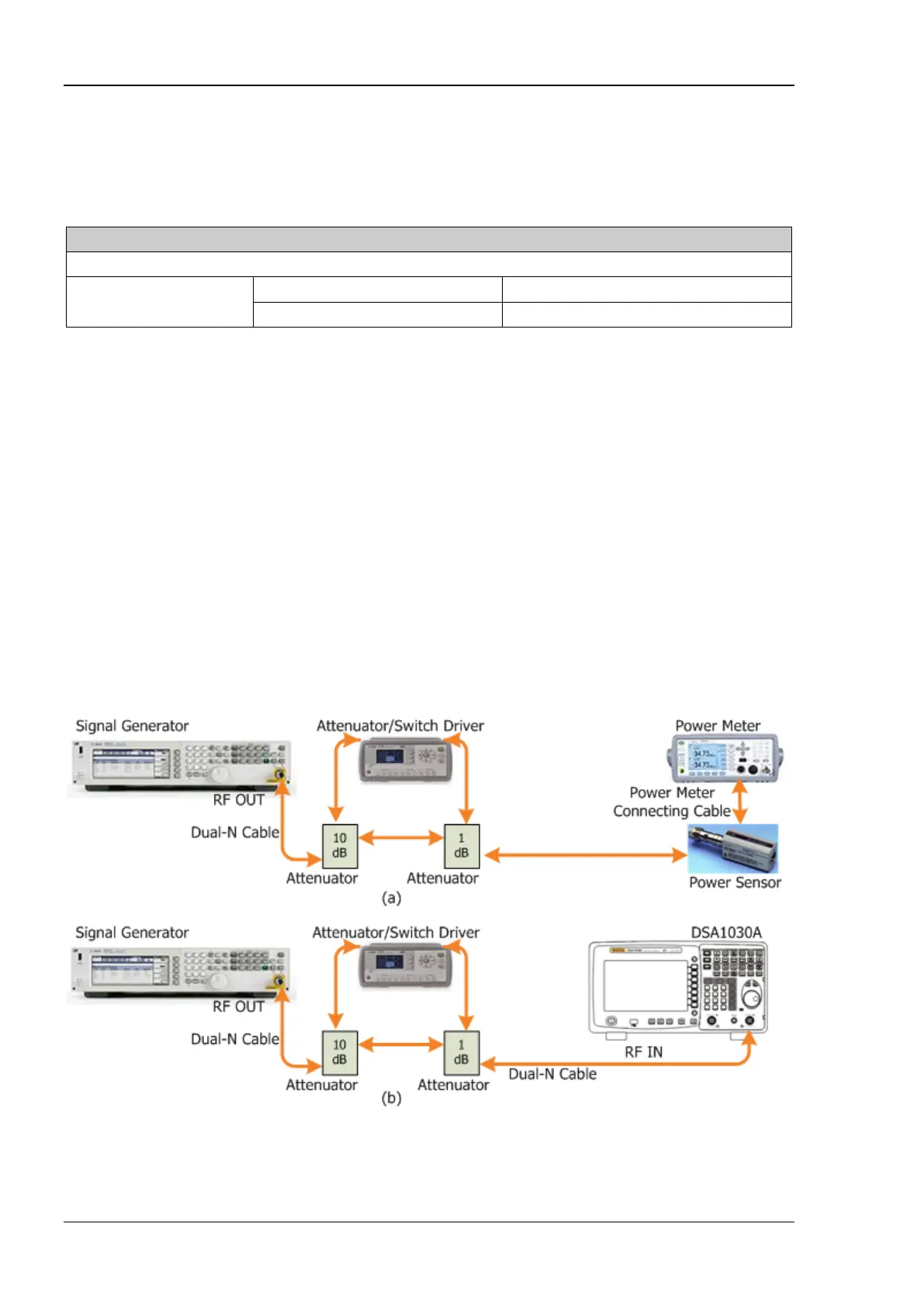

Figure 2-8 Input Attenuation Error Test Connection Diagram
