ACP
Measurement Interface:

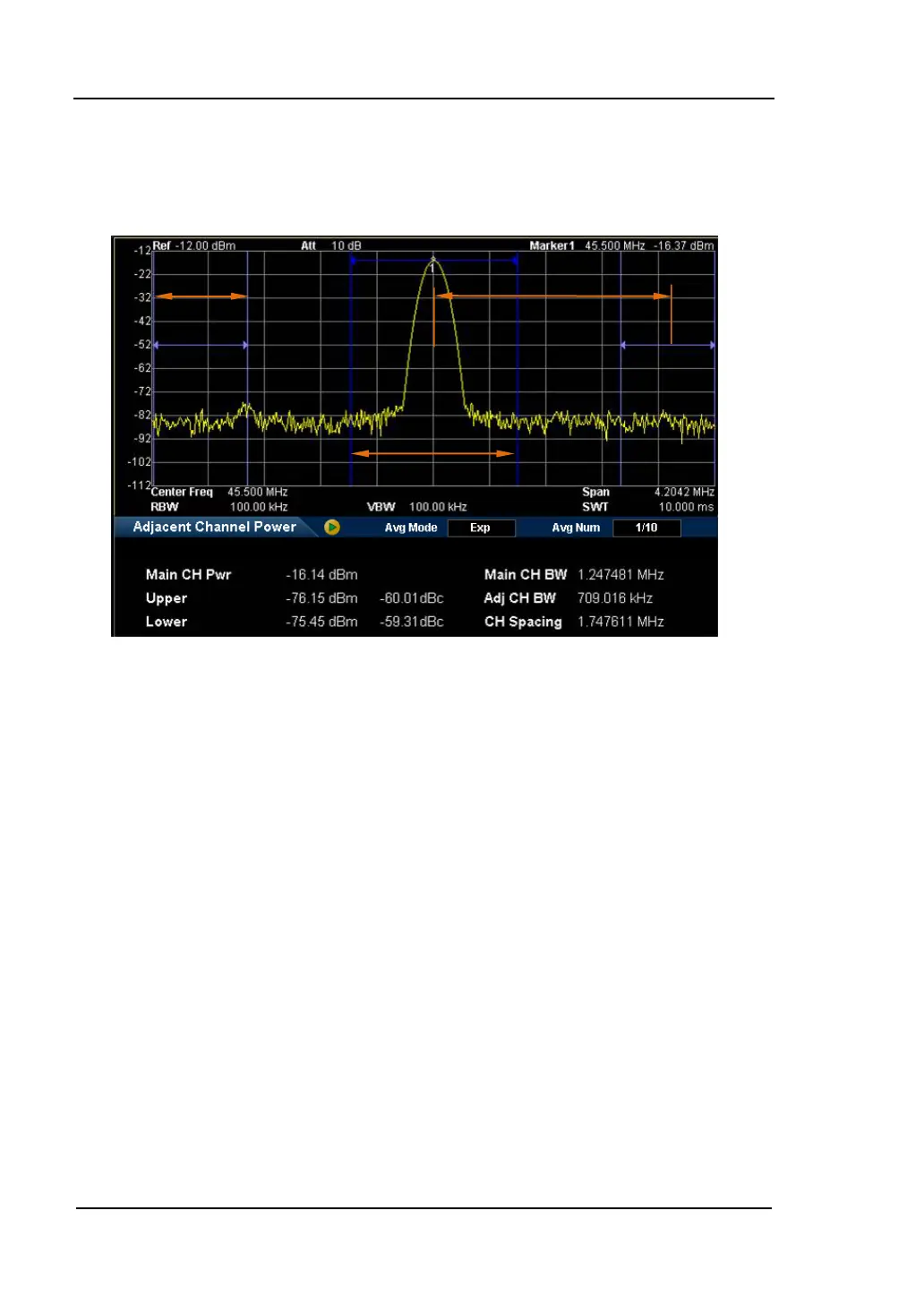

Figure 2-15 Adjacent Channel Power Measurement Interface
Measurement Results: Main CH Pwr, Upper and Lower.
 CH Pwr: display the power within the bandwidth of the main channel.
 Upper: display the power of the upper channel and the power difference
between the upper channel and the main channel (in dBc).
 Lower: display the power of the lower channel and the power difference
between the lower channel and the main channel (in dBc).
Measurement Parameters: average number, average mode, main channel
bandwidth, adjacent channel bandwidth and channel spacing.
1. Avg Num
Specify the number of averages used when calculating the measurement
result and the default is “Off”. You can use the numeric keys, knob or direction
keys to modify this parameter.
Main Channel Bandwidth
Adjacent Channel Bandwidth
Channel Spacing
