RIGOL Chapter 3 Remote Control
User’s Guide for DSA800/E Series
(b)

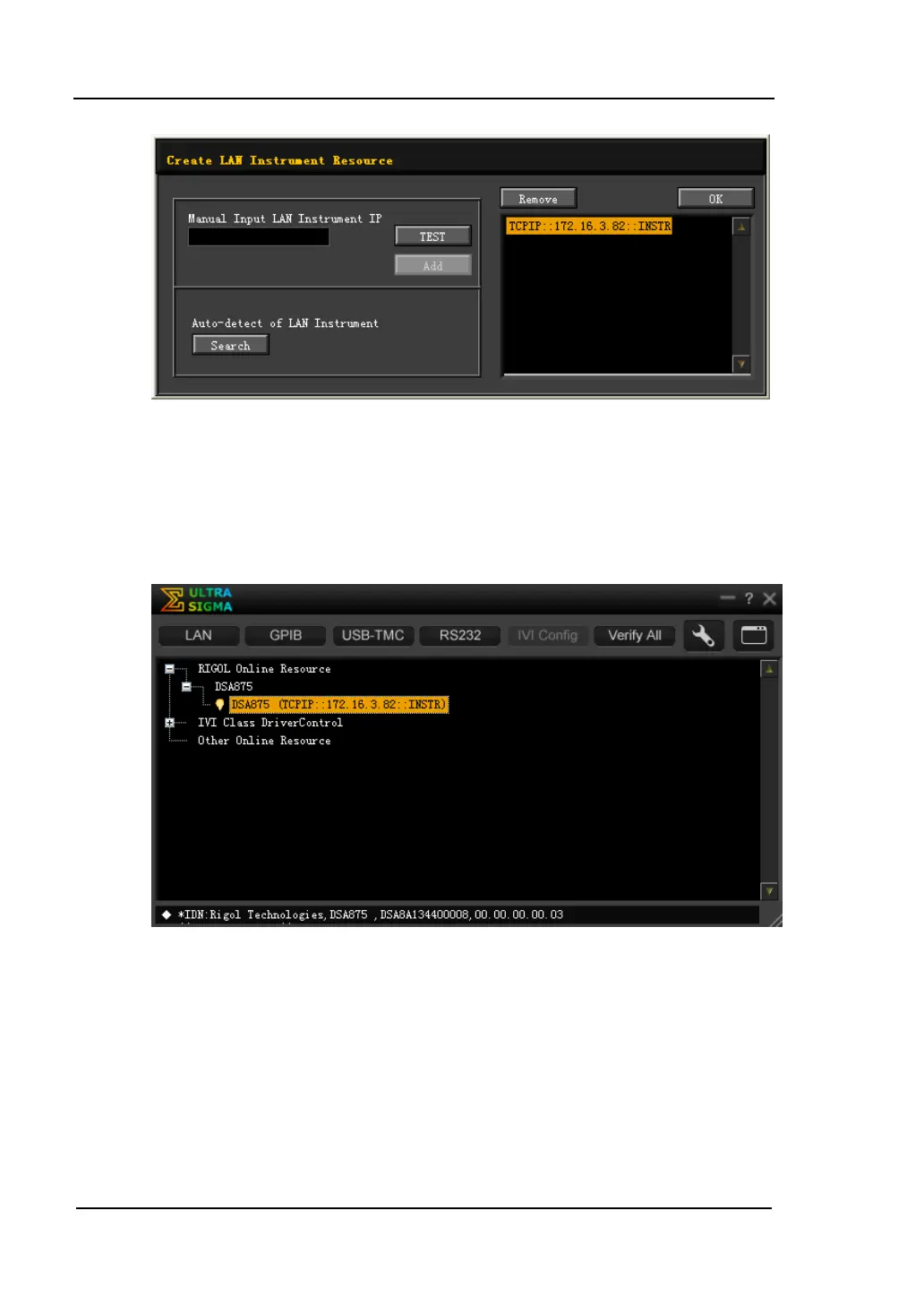

Figure 3-3 Search for LAN Resources
4) View the resource
The resources found are shown under the “RIGOL Online Resource”
catalog as shown in the figure below.
Figure 3-4 View the Resource
5) Communication test
Right click the resource name such as
DSA875 (TCPIP::172.16.3.82::INSTR) and select SCPI Panel
Control to open the remote control panel (as shown in the figure
below) from which you can write commands and read data.
To Next Page
