RIGOL Chapter 1 Disassemble and Assemble
1-8 MSO1000Z/DS1000Z Service Guide
To Disassemble the Front Panel

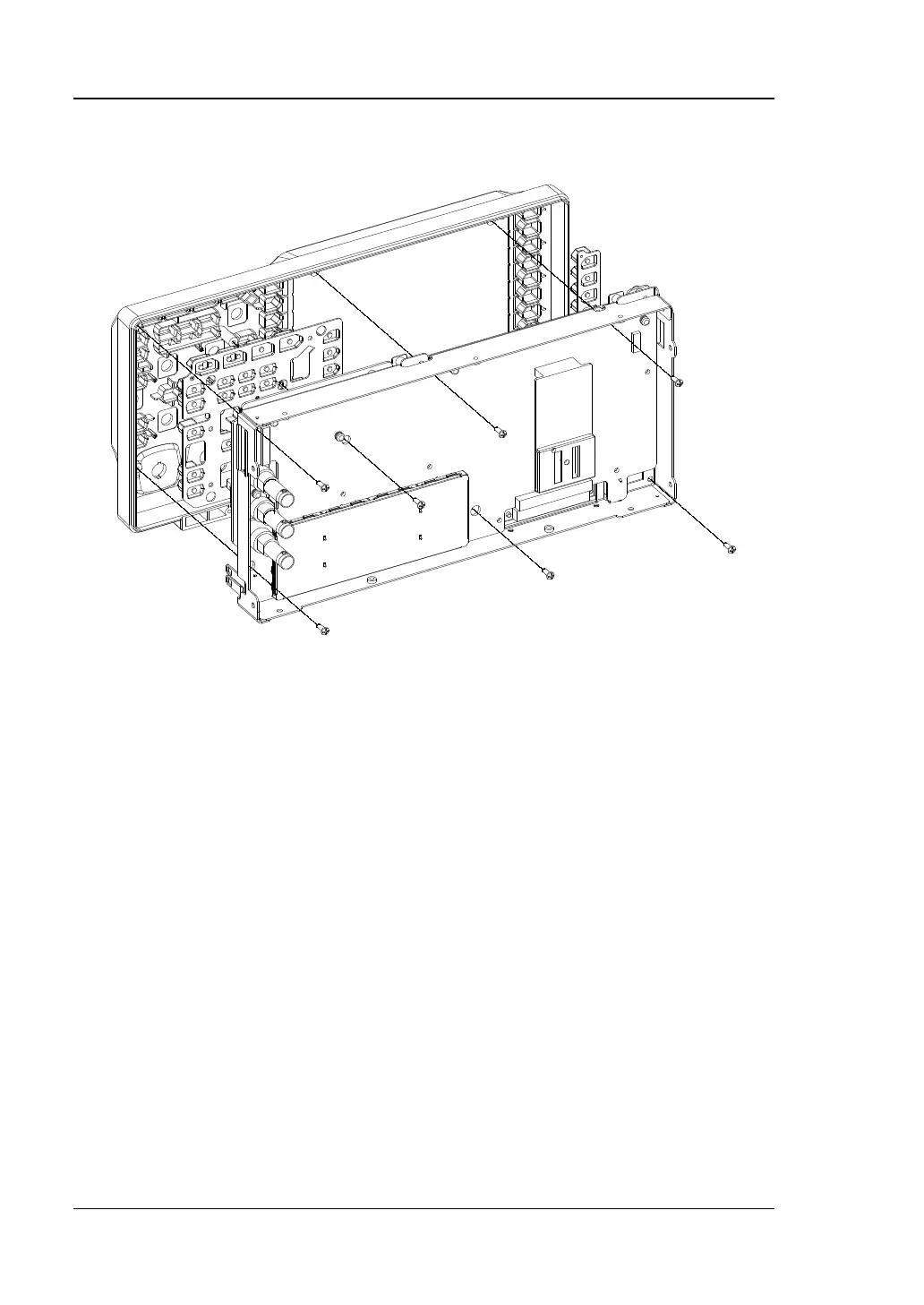

Figure 1-5 To Disassemble the Front Panel
Part Explanation:
7 screws (torx countersunk head self tapping screw M3*8) fixing the front panel.
Disassemble Steps:
1. Remove the 7 screws () fixing the front panel using the screwdriver (T10).
2. Take off the front panel gently.
