Chapter 1 Disassemble and Assemble RIGOL
MSO1000Z/DS1000Z Service Guide 1-11
To Disassemble the Main Board

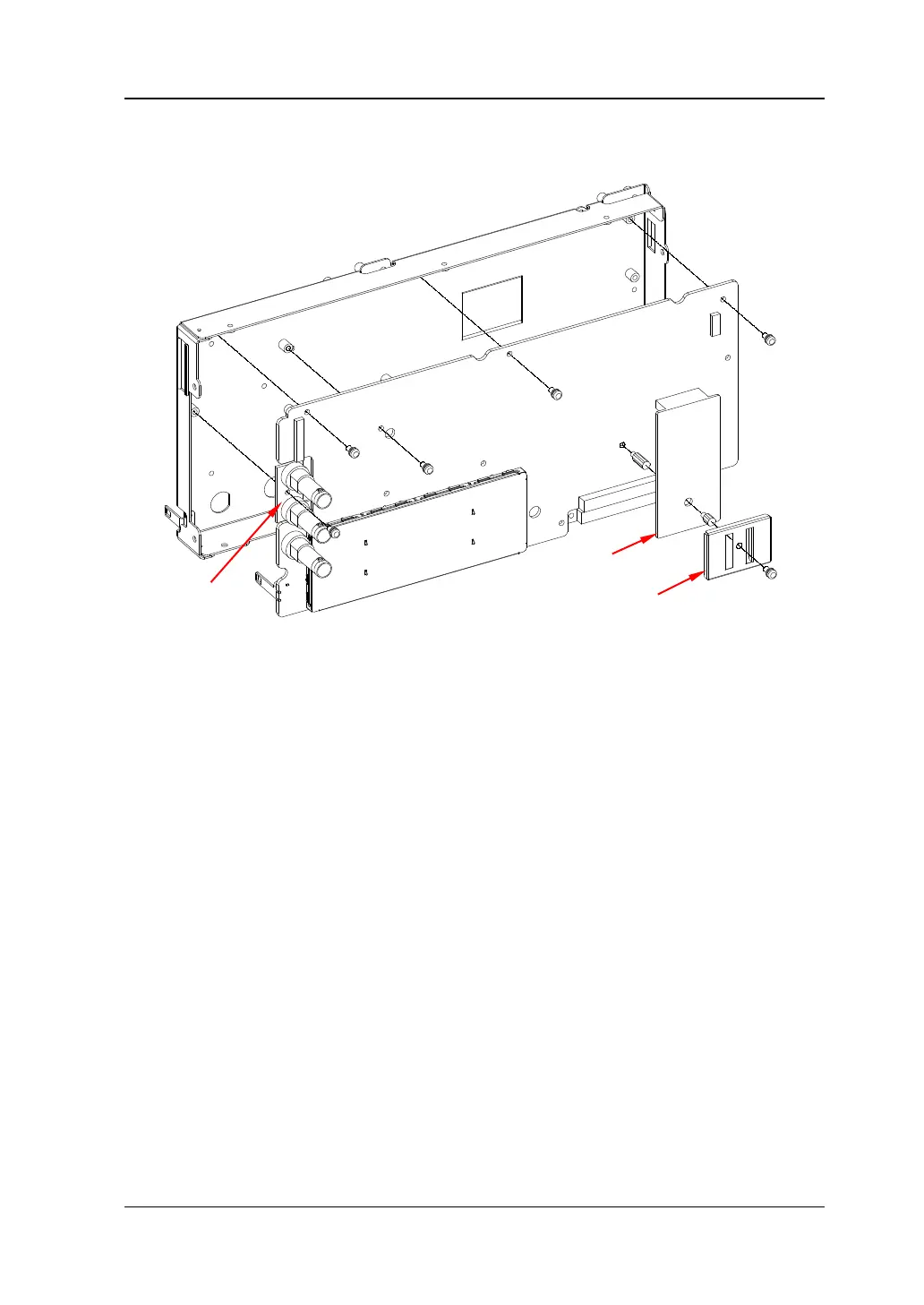

Figure 1-7 To Disassemble the Main Board (take MSO1000Z-S as an example)
1. To Disassemble the Main Board of MSO1000Z-S/DS1000Z-S
Part Explanations:
① 9 screws (torx pan head screw assembly M3*6) fixing the main board and
front metal plate (the positions of some of the screws are not marked out in
the figure above and please remove them according to their actual
positions).
② 1 screw (multi-station screw #MSM 3*11.0*6.0) fixing the main board and
front metal plate.
③ 1 screw (multi-station screw #MSM 3*5.0*6.0) fixing the signal source
board.
④ 1 screw (torx pan head screw #FM3*4) fixing the shield cover.
⑤ 1 screw (torx pan head screw assembly M3*6) fixing the signal source
output board.
Disassemble Steps:
(1) Remove the 4 nuts and washers at the BNC ports on the front metal plate
using the BNC socket.
(2) Remove the screw (⑤) fixing the signal source output board using the
screwdriver (T10), and take off the signal source output board gently.
(3) Remove the screw (④) fixing the shield cover using the screwdriver (T10),
①
①
①
①
⑤
Output Board
To Next Page
