Chapter 1 Quick Start RIGOL
MSO1000Z/DS1000Z User’s Guide 1-9
Front Panel Overview

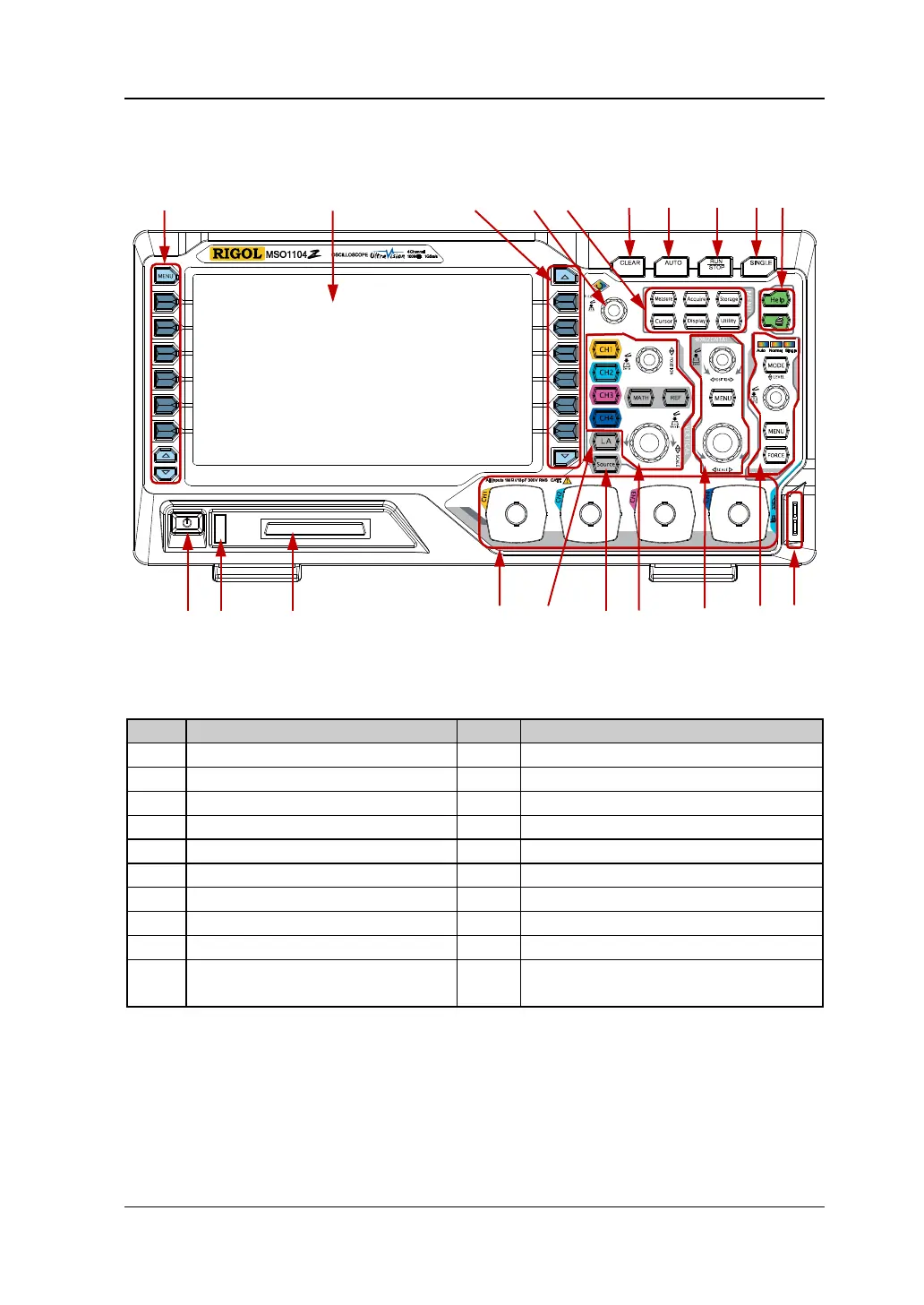

Figure 1-10 Front Panel Overview
Table 1-1 Front Panel Descriptions
No.
Description
No.
Description
1 Measurement Menu Softkeys 11 Power Key
2
LCD
12
USB Host Interface
3
Function Menu Softkeys
13
Digital Channel Input Interface
[1]
4 Multifunction Knob 14 Analog Channel Input Interface
5
Common Operation Keys
15
Logic Analyzer Control Key
[1]
6 CLEAR 16 Signal Source
[2]
7
AUTO
17
VERTICAL Control
8 RUN/STOP 18 HORIZONTAL Control
9 SINGLE 19 TRIGGER Control
10
Help/Print
20
Probe Compensation Signal
Output Terminal/Ground Terminal
Note
[1]
: Only applicable to MSO1000Z and DS1000Z Plus.
Note
[2]
: Only applicable to digital oscilloscopes with source channels.
3 4 5 6 7 8 9 10
1 2
11 12 13 14 15 16 17 18 19 20
