Rigol MSO8000 Series User Manual

RIGOL Chapter 5 To Trigger the Oscilloscope
5-48 MSO8000 User Guide

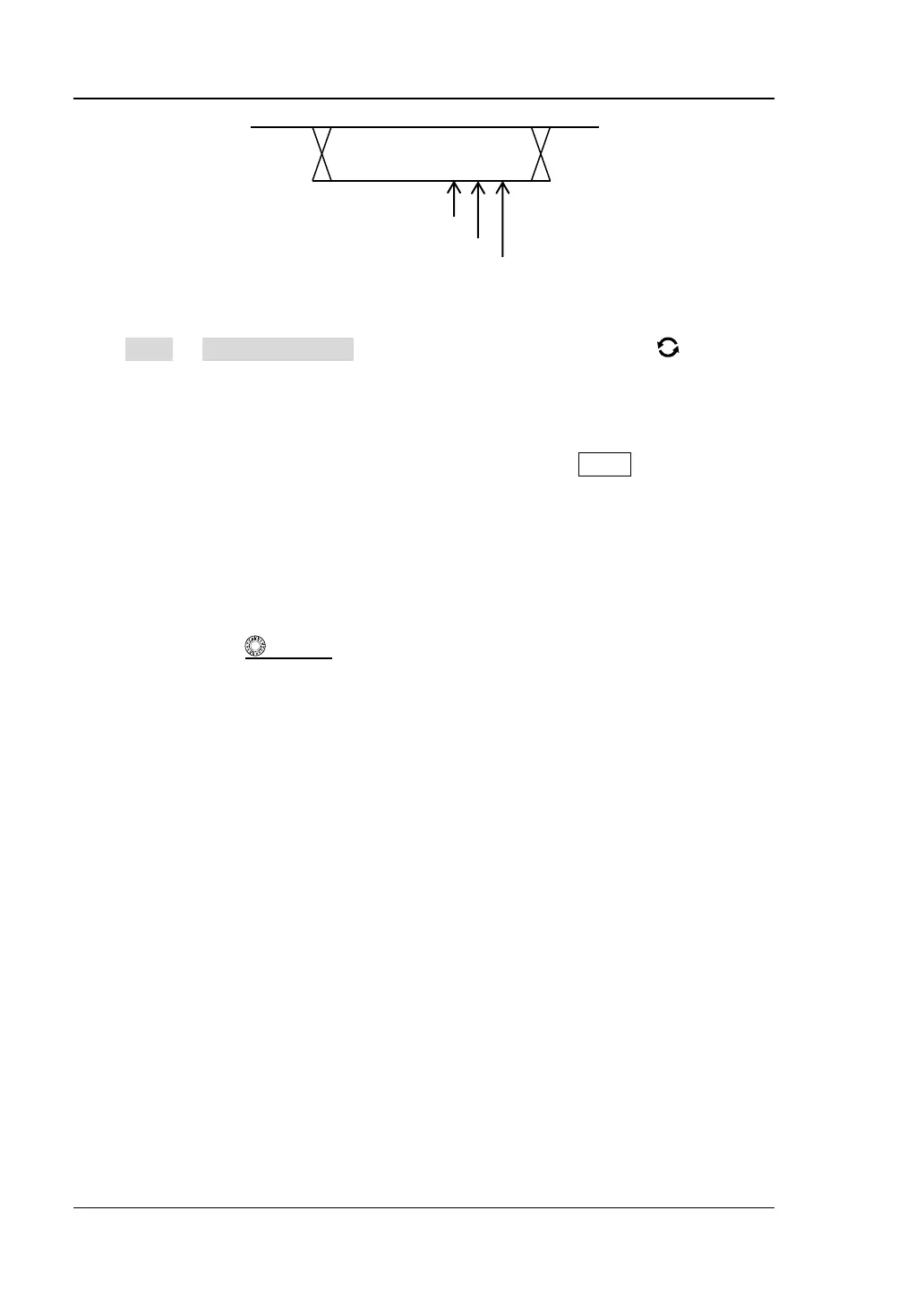

Figure 5-21 Sample Position
Press More → Sample Position, then rotate the multifunction knob or use the
pop-up numeric keypad to set the sample position. The settable range is from 10%
to 90%.
Trigger Mode:
In the trigger control area (Trigger) on the front panel, press Mode to quickly switch
the current trigger mode. For details, refer to descriptions in "Trigger Mode".
Trigger Parameter Setting:
Set the trigger parameter (noise rejection) under this trigger type. For details, refer
to descriptions in "Noise Rejection".
Trigger LEVEL/Threshold Level:
Rotate the Trigger LEVEL knob to adjust the trigger level/threshold level. Refer
to "Trigger LEVEL/Threshold Level". The current trigger level/threshold level
value is displayed at the upper-right corner of the screen.
One Bit
60%
70%
80%
