Exp.Fall
Press Wave, rotate the multifunction knob to select "Exp.Fall". Press down the
knob to select it. You can also press Wave continuously or enable the touch screen
to select it. At this time, you can set the parameters for the Exp.Fall waveform (as
shown in the figure below). For setting methods, refer to descriptions in "To Output
Sine".

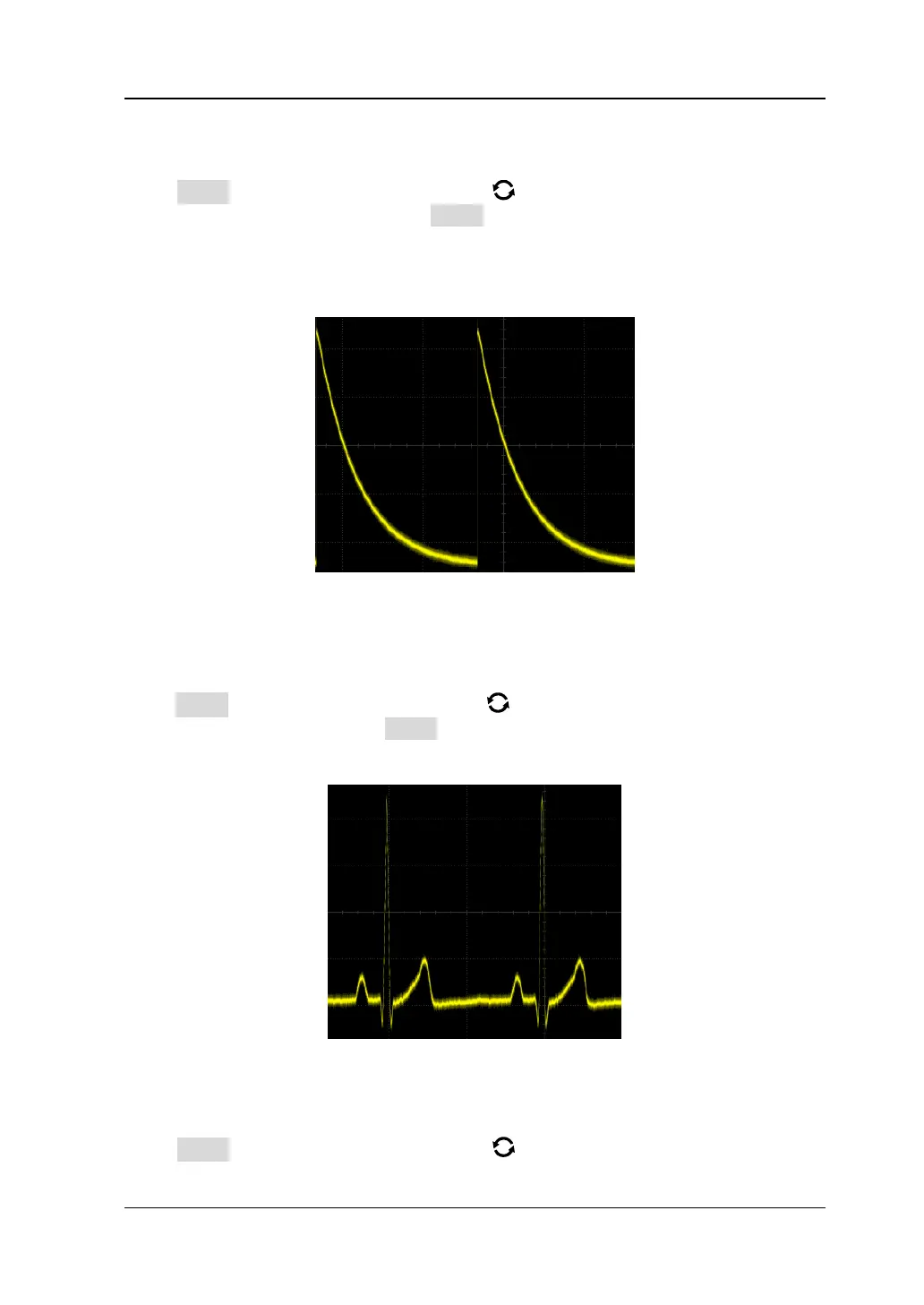

Figure 18-5 Exp.Fall
ECG
Press Wave, rotate the multifunction knob to select "ECG". Press down the knob
to select it. You can also press Wave continuously or enable the touch screen to
select it. At this time, you can set the parameters for the ECG waveform (as shown in
the figure below). For setting methods, refer to descriptions in "To Output Sine".
Figure 18-6 ECG
Gauss
Press Wave, rotate the multifunction knob to select "Gauss". Press down the
