RIGOL Chapter 2 To Set the Vertical System
2-12 MSO8000 User Guide
"To Create a Folder".

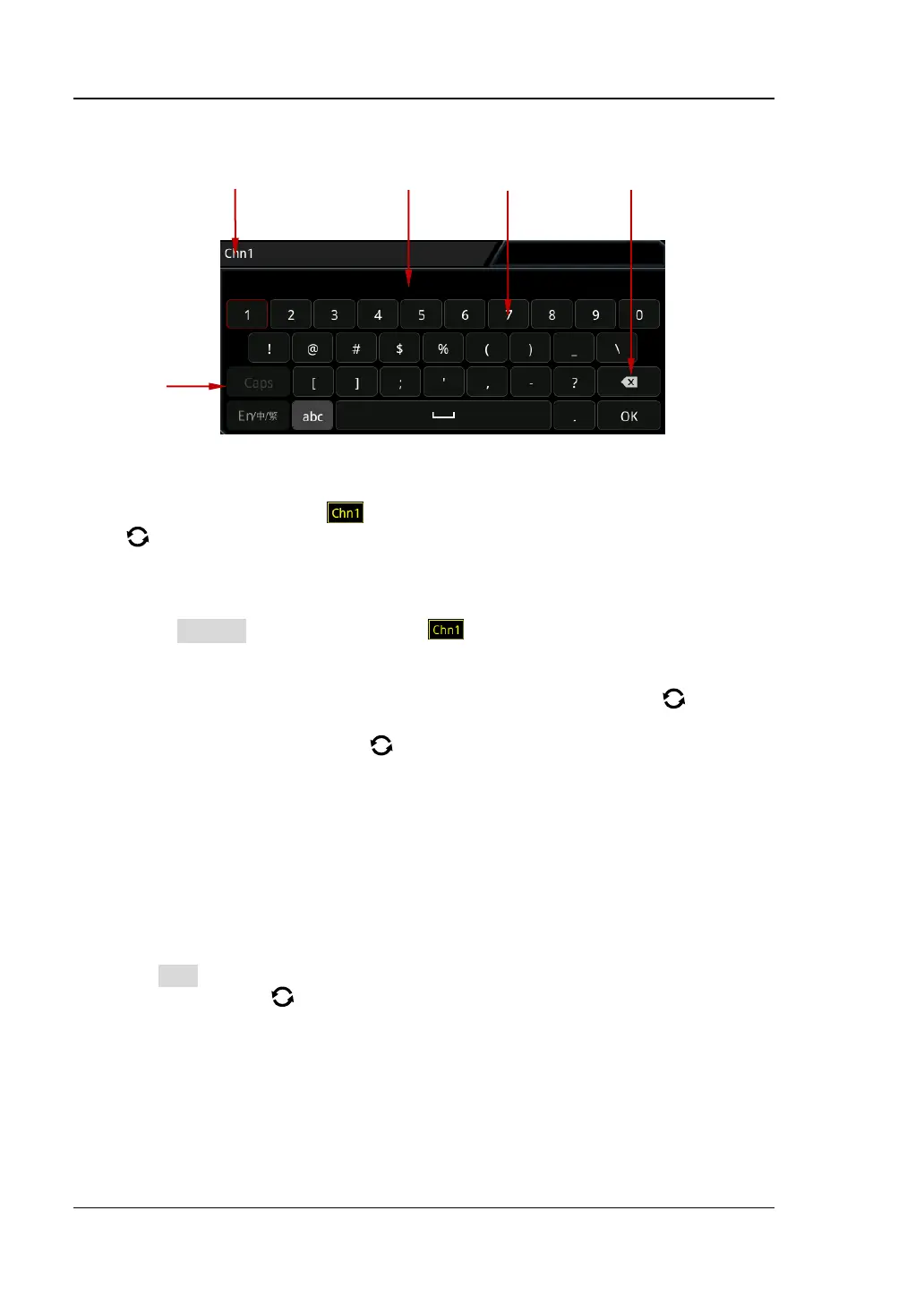

Figure 2-3 Label Editing Interface
For example, set the label to " ". In the virtual keypad, rotate the multifunction
knob to select "Caps" and press down the knob to switch the uppercase or
lowercase mode. Rotate the multifunction knob and select "C", press down the knob
to input "C". Use the same method to input "hn1". After finishing the input, press OK
to finish the editing. You can also enable the touch screen to operate by touch
gestures. If Display is enabled, the label will be displayed at the left of CH1
waveform.
To delete or modify the input characters, rotate the multifunction knob or enable
the touch screen to realize it.
➢ Rotate the multifunction knob : use the delete key to delete or modify the
characters. To modify the characters, input the desired characters again.
➢ Enable the touch screen: use the touch gestures to directly move the cursor to
the right side of the character required to be deleted or modified, and then tap
the delete key to delete the character. To modify the characters, input the
desired character again or delete the character.
Note
1
: The "Input Selection Area" is available for you to select Chinese characters
when you choose the Chinese input mode.
âš« Press Info and the channel information sub-menu is displayed. Rotate the
multifunction knob to select "Bandwidth" or "Bias", and press down the knob
to select it. Then the channel label displays the current bandwidth or bias. Both
the bandwidth and bias information can also be displayed at the same time in the
channel label, as shown in the figure below.
Label Input Area Input Selection Area
1
Virtual Keypad Delete Key
Upper/Lower Case
Switch
(enabled in English
Input Mode)
