Rinnai E75CN Installation & Servicing Instructions

Installation & Servicing Instructions Rinnai E-Series
16
clearances to the boiler table 3

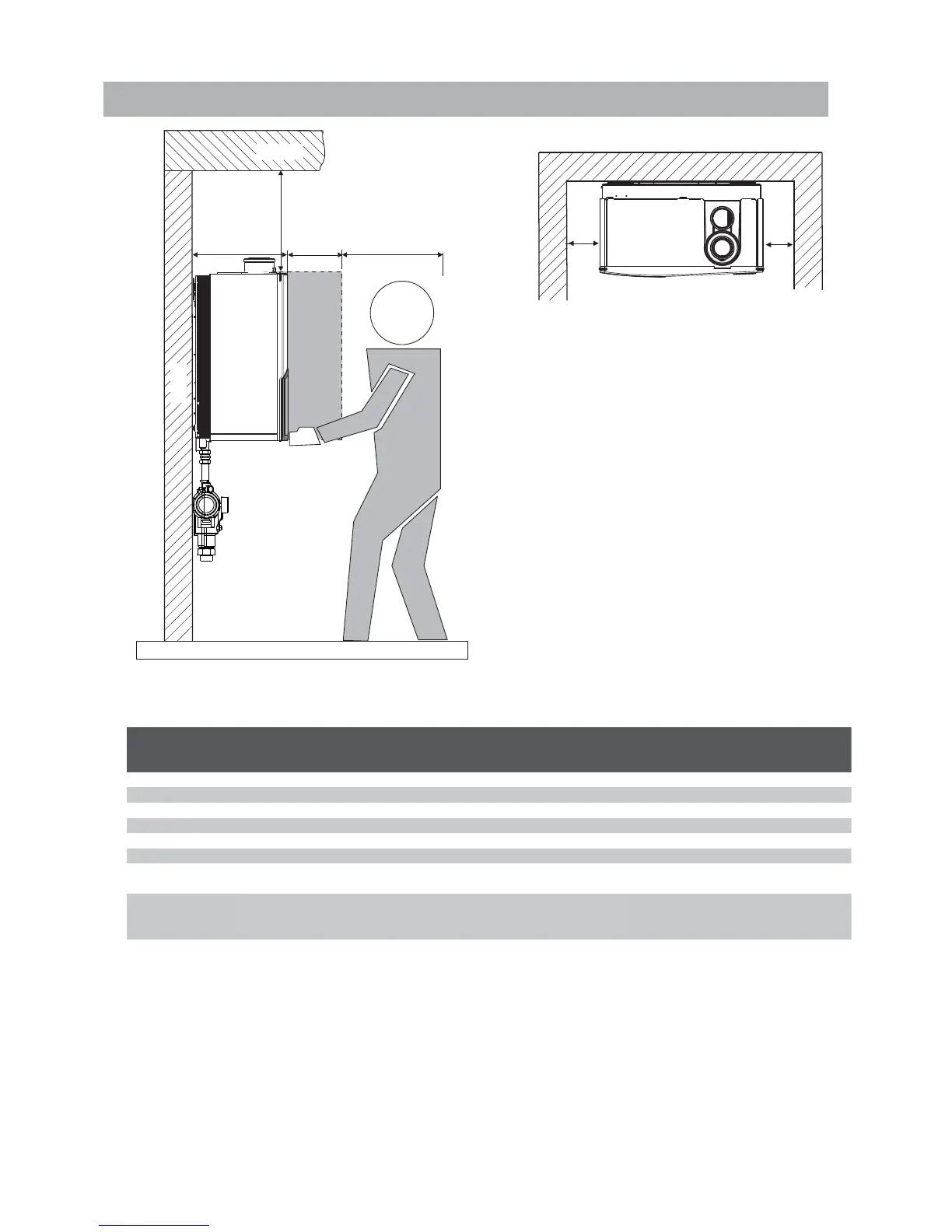

service clearances to the boiler figure 4
wall
ceiling
For closet installation: clearance is 1” / 25mm from the front.
Low Loss Header
Clearances to combustible and non-Combustible is 0 inch for sides, top, front and fl oor/ground
The recommended service clearance to the bottom of the low loss header is 12 inches.
2"
50
Min. 10" /
250mm
15.7"
400
24"
600
5.3.2 Clearances from boiler
Minimum required clearances
to combustibles
Minimum required clearances
to non-combustibles
Recommended
service clearances
All types
A
ll types
A
ll types
inch / mm inch / mm inch / mm
Top of boiler 2" / 50 2" / 50 10" / 250
Back of boiler 0" 0" 0
Front of boiler 6" / 150 6" / 150 24" / 600
Left side of boiler 2" / 50 2" / 50 2" / 50
Right side of boiler 2" / 50 2" / 50 2" / 50
Floor / Ground to
bottom of boiler
12" / 300 12" / 300 30" / 762
Floor/ Ground to
bottom Low loss
header
0" 0" 12" / 300
Vent 0" 0" 0"
2"
50
