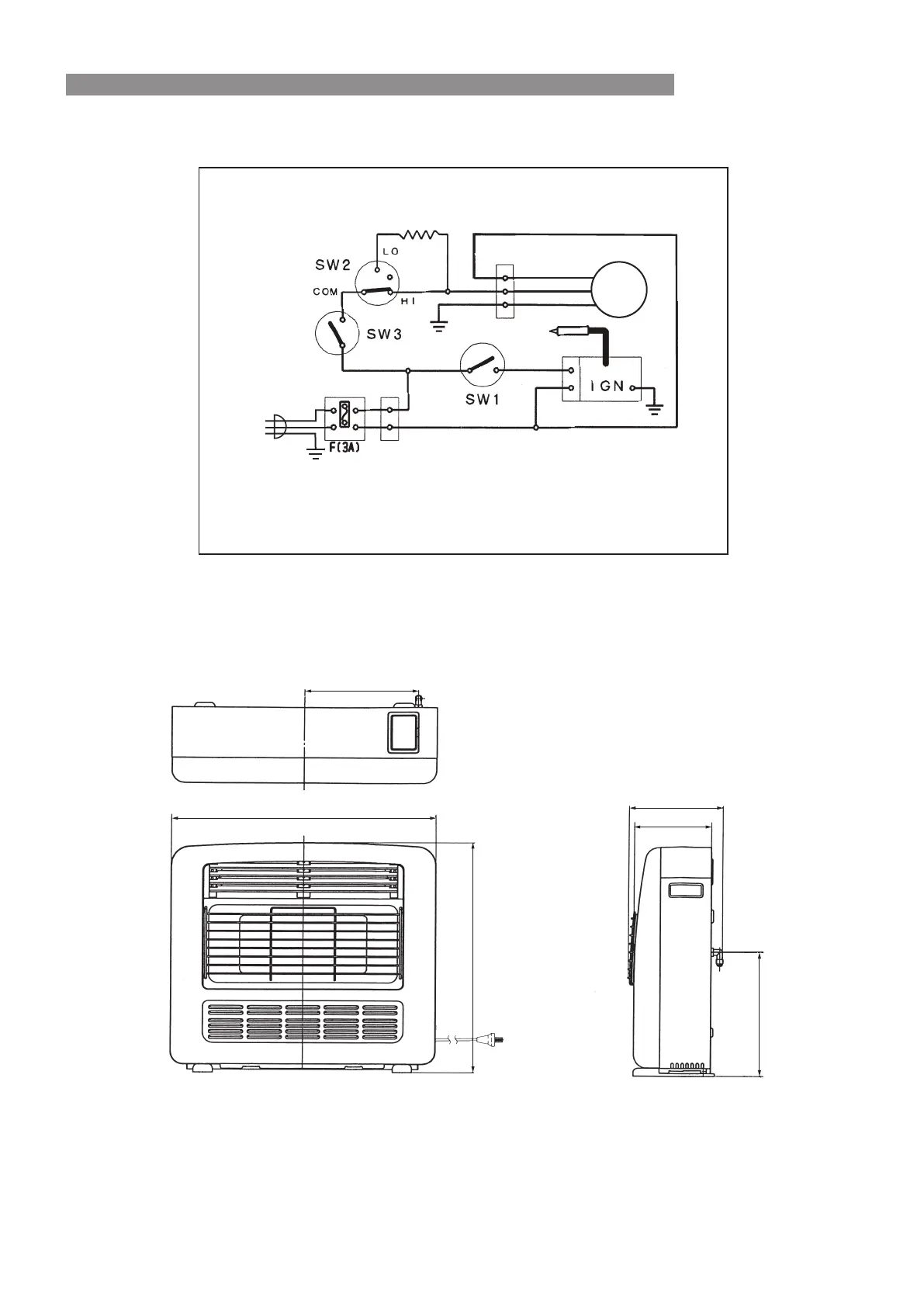

Rinnai 19 GRANADA 252 - REH-252UCH2 - OIM
SPECIFICATIONS
WIRING DIAGRAM
DIMENSIONS
FAN
black
black
black
blue
blue
blue
green
green
white
white
blue
blue
red
R
(NZ AC230V)
AC240V
50Hz
*Supply lead must only be replace with Rinnai
Part Number 90174772
g / y
240
620
541
179
220
182
