Rinnai Infinity 16e - Dip Switch Setting

28

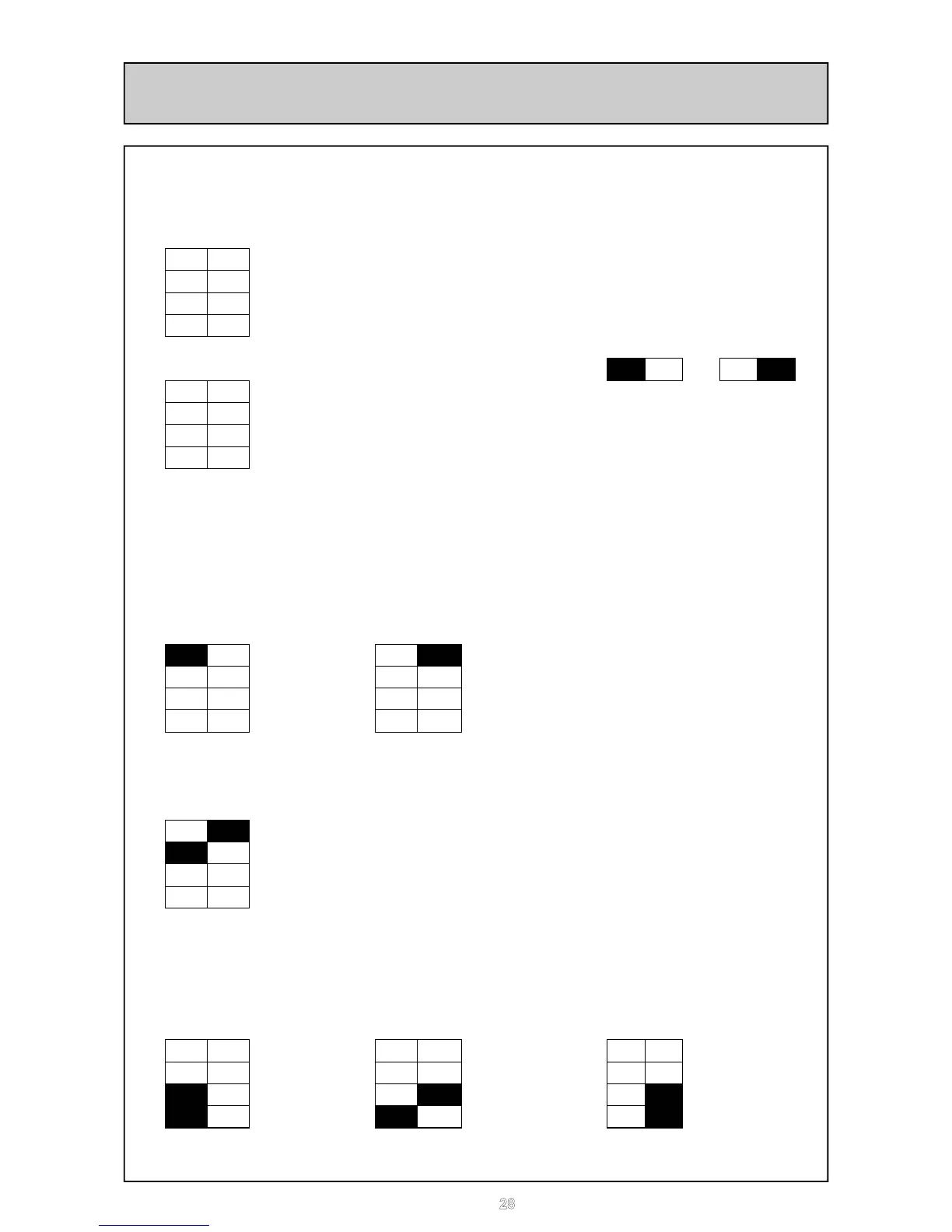

DIP SWITCH SETTING
Dip Switch Positions Explained
OFF ON
SW2 (top)
1 - Gas Type LEGEND:
2 - Temperature Black Section indicates
3 - Temperature position of dip switch.
4 - Temperature
OFF ON OFF ON
OFF ON
SW1 (bottom)
1 - Computer Programming
2 - Computer Programming OFF ON
3 - Combustion
4 Combustion
Dip Swiches Explained
GAS TYPE
LPG NAT GAS
OFF ON
SW2
OFF ON
SW2
1 off 1 on
2 2
3 3
4 4
COMPUTER PROGRAMMING
OFF ON
SW1
1 - Switches are always in these
2 - positions for the Infinity 16e.
3
4
COMBUSTION
NORMAL FORCED LOW FORCED HIGH
OFF ON
SW1
OFF ON
SW1
OFF ON
SW1
1 1 1
2 2 2
3 off 3 on 3 on
4 off 4 off 4 on
