Rinnai 8 Split AC IM

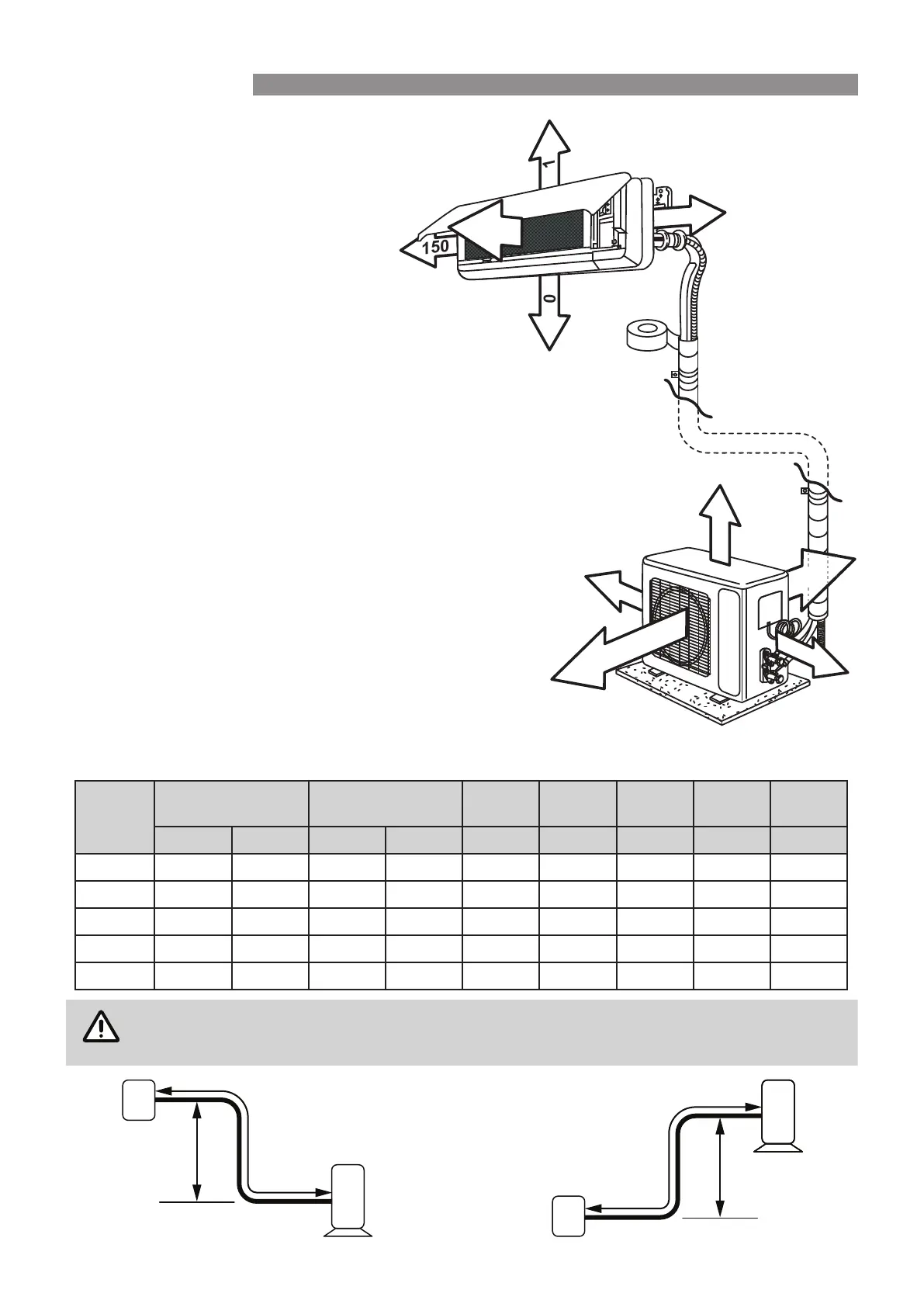

INDOOR UNIT
•
Ensure the indoor unit is located away from
heat or steam.
•
Ensure the indoor unit is located so it can
be accessed for service and replacement.
•
Ensure the indoor unit is located so
condensate can be drained away.
•
Select a location where the indoor unit can
be securely mounted.
•
The clearances shown MUST BE
maintained.
OUTDOOR UNIT
•
Select the location where exposure to direct
sunlight and strong wind are minimised.
•
Select the location where the outdoor unit
can be securely mounted.
•
Select the location where the noise and air
ÀRZZLOOQRWFDXVHQXLVDQFH
•
Ensure there are no obstructions in the air
ÀRZSDWK
•
Ensure the outdoor unit is located so it can
be accessed for service and replacement.
•
Do not place animals and plants near the
air discharge.
•
The clearances shown MUST BE
maintained.
PIPE LENGTH & ELEVATION LIMITS
Models
Pipe Size Gas Pipe Size Liquid
Chargeless
Length
Minimum
Length - X
Maximum
Length - X
Maximum
Height - Y
Additional
Refrigerant
mm inch mm inch m m m m g/m
HSNRQ25B Ø9.52 3/8 Ø6.35 1/4 10 2 20 12 15
HSNRQ35B Ø12.7 1/2 Ø6.35 1/4 10 2 20 12 15
HSNRQ50B Ø15.88 5/8 Ø6.35 1/4 10 2 30 20 15
HSNRQ70B Ø15.88 5/8 Ø6.35 1/4 10 2 30 20 15
HSNRQ80B Ø15.88 5/8 Ø6.35 1/4 10 2 30 20 30
