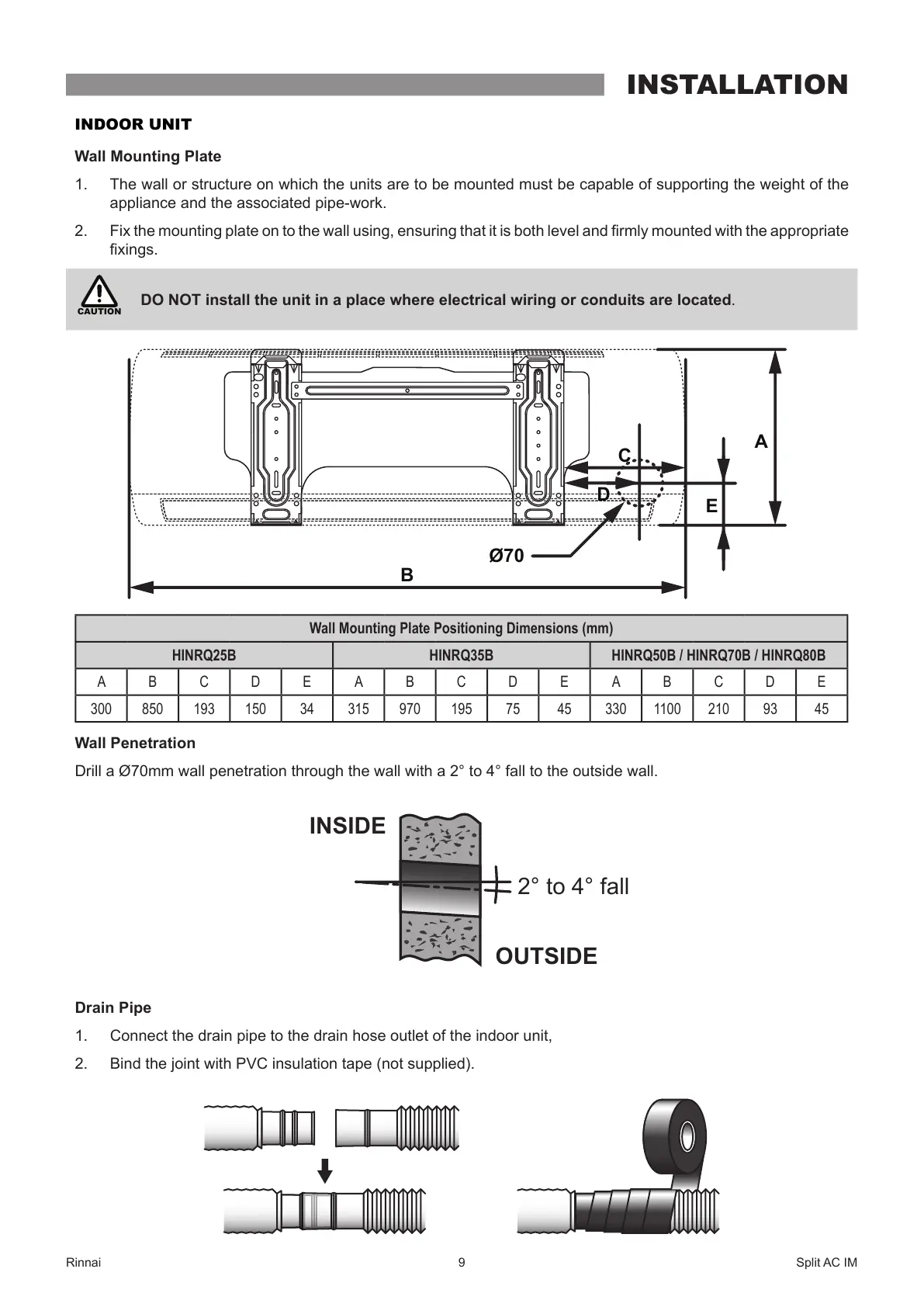

Rinnai 9 Split AC IM
INDOOR UNIT
Wall Mounting Plate
1. The wall or structure on which the units are to be mounted must be capable of supporting the weight of the
appliance and the associated pipe-work.
2. )L[WKHPRXQWLQJSODWHRQWRWKHZDOOXVLQJHQVXULQJWKDWLWLVERWKOHYHODQG¿UPO\PRXQWHGZLWKWKHDSSURSULDWH
¿[LQJV
DO NOT install the unit in a place where electrical wiring or conduits are located.
C
B
Ø70
A
E
D
Wall Mounting Plate Positioning Dimensions (mm)
HINRQ25B HINRQ35B HINRQ50B / HINRQ70B / HINRQ80B
A B C D E A B C D E A B C D E
300 850 193 150 34 315 970 195 75 45 330 1100 210 93 45
Wall Penetration
Drill a Ø70mm wall penetration through the wall with a 2° to 4° fall to the outside wall.
Drain Pipe
1. Connect the drain pipe to the drain hose outlet of the indoor unit,
2. Bind the joint with PVC insulation tape (not supplied).
INSIDE
