Installing Your Firey
Adjusting the Upper and Lower Arms
Attach the Lower Arms

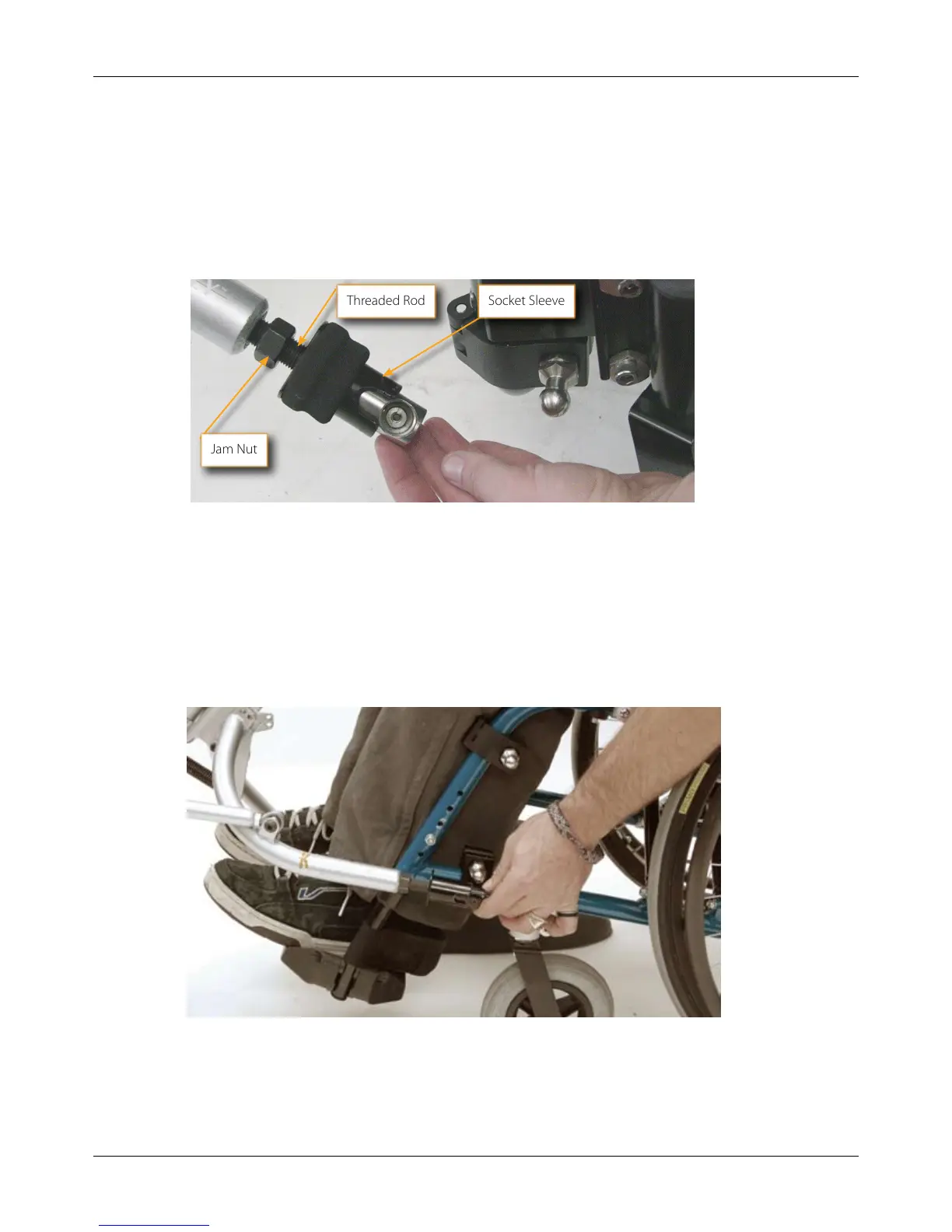

Attach the Lower Arms to the lower set of Pawns installed on your chair. The
Lower Arm can be lengthened or shortened using the Threaded Rod. Loosen the
Jam Nut to do this. DO NOT unscrew the Threaded Rod beyond the red zone on
the threads. Make sure both Arms are the same length so that your handcycle is
centered.
Threaded Rod
Socket Sleeve
Jam Nut
- If the Threaded Rod is fully inserted and the Lower Arm is still too long, push
the Wheel out until the Socket can attach to the Pawn.
- If the Threaded Rod is fully extended and the Lower Arm Sockets can’t reach the
Pawns, even with the Wheel only 2” (50mm) away from your feet, move the
Clamps forward. If this is not possible, please contact customer service.
Line up one of the lower Sockets with the Pawn and lock it into place. The Socket
Sleeve will automatically slide to cover the Socket and you will hear a click.
Repeat for the other side.
