1. Introduction
This instrument is a panel mounted 96 x 96mm DIN Quadratic Digital metering system for the
measurement of important electrical parameters like AC voltage, AC Current, Frequency,
Power, Energy(Active / Reactive / Apparent) . The instrument integrates accurate
measurement of technology (All Voltage & Current measurements are True RMS upto 15th
Harmonic) with 320x240 Pixels touch screen TFT LCD display.
This instrument can be congured and programmed at site for the following:
PT Primary, CT Primary, CT Secondary (5A or1A)
and 3 phase 3W or 3 Phase 4W system.

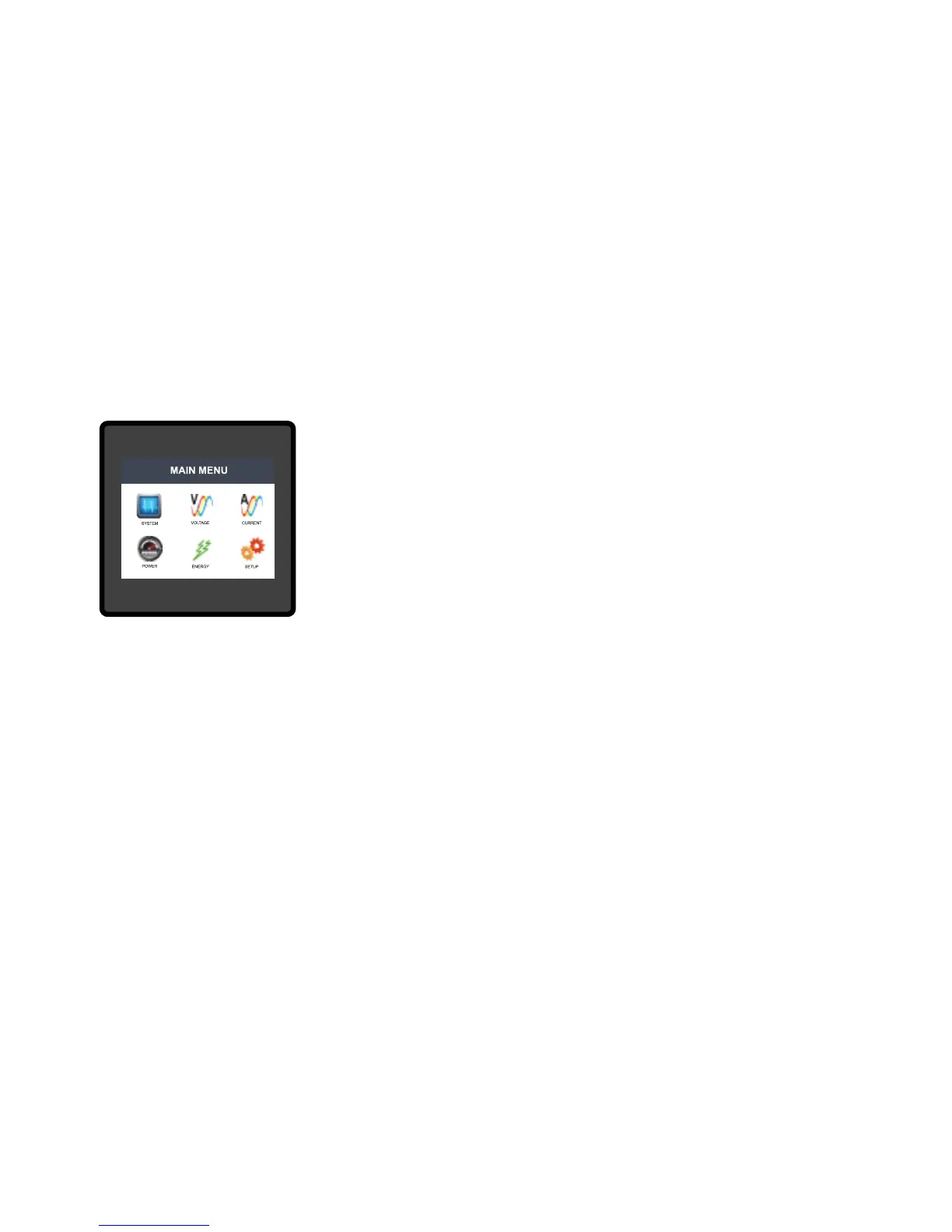

The front panel has a 3.5” Touch Screen through which the user can
move across the available measurement readings, reset the energy,
Min/Max (System Voltage and System Current) and congure the
product settings.
