RADIO CONNECTORS
-----------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------
Ritron RCCR Clean Cab User Manual 13

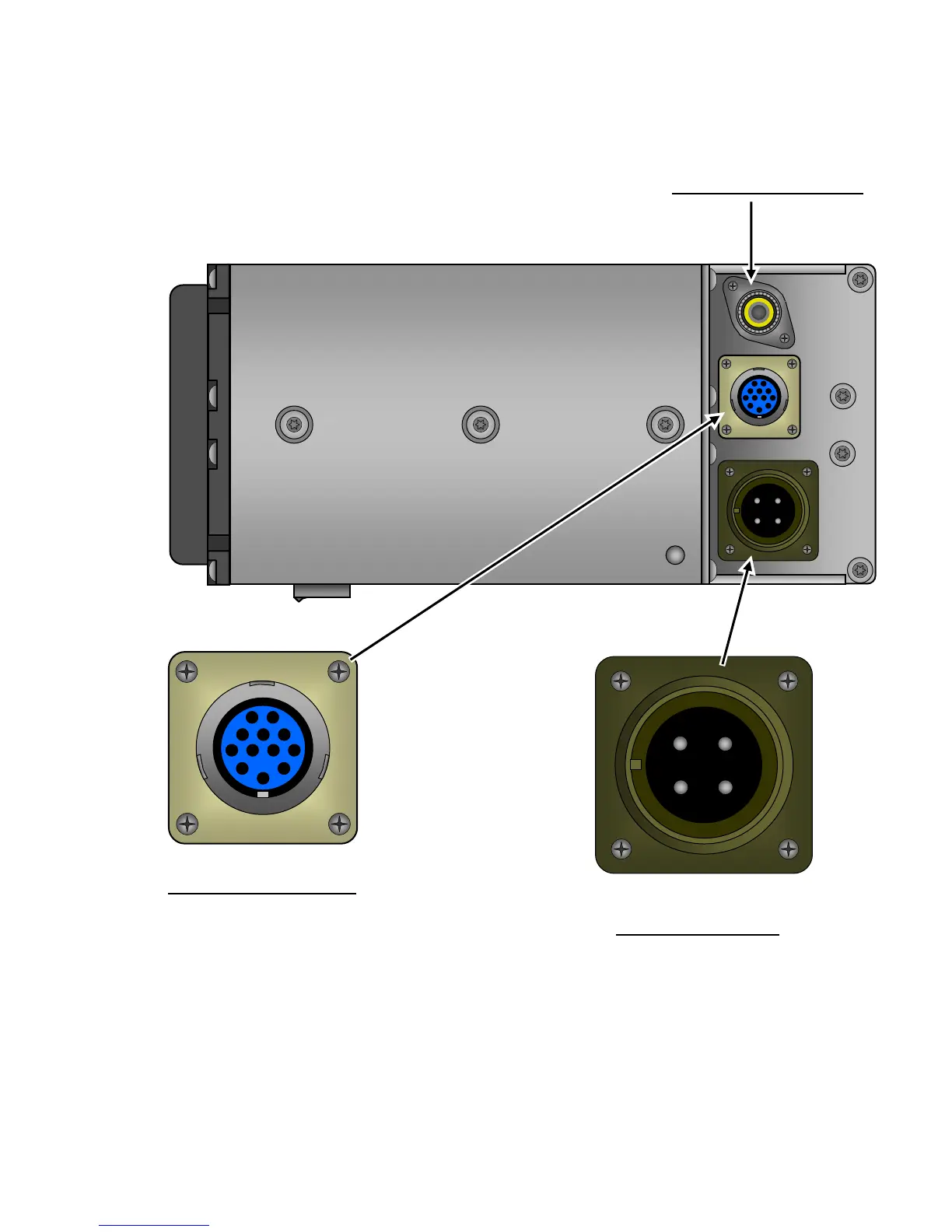

RCCR Connectors – Side Panel
Antenna Connector (SO-239)
Auxiliary Connector (12-Pin)
A Remote
Mic H Audio Ground
B Mic Ground J 13.6VDC Ground Power Connector (4-Pin)
C Remote
PTT K Not Used A +72 VDC
D PTT Ground L Not Used B -13.6 VDC Ground
E Remote Audio M
External Speaker (+) C -72 VDC
F +13.6 VDC N External Speaker (-) D +13.6 VDC
B
A
C
D E F H
J K L
MN
A B
D C
