Rittal 3302 Series User Manual

Rittal enclosure cooling unit 9
4 Assembly and connection
EN

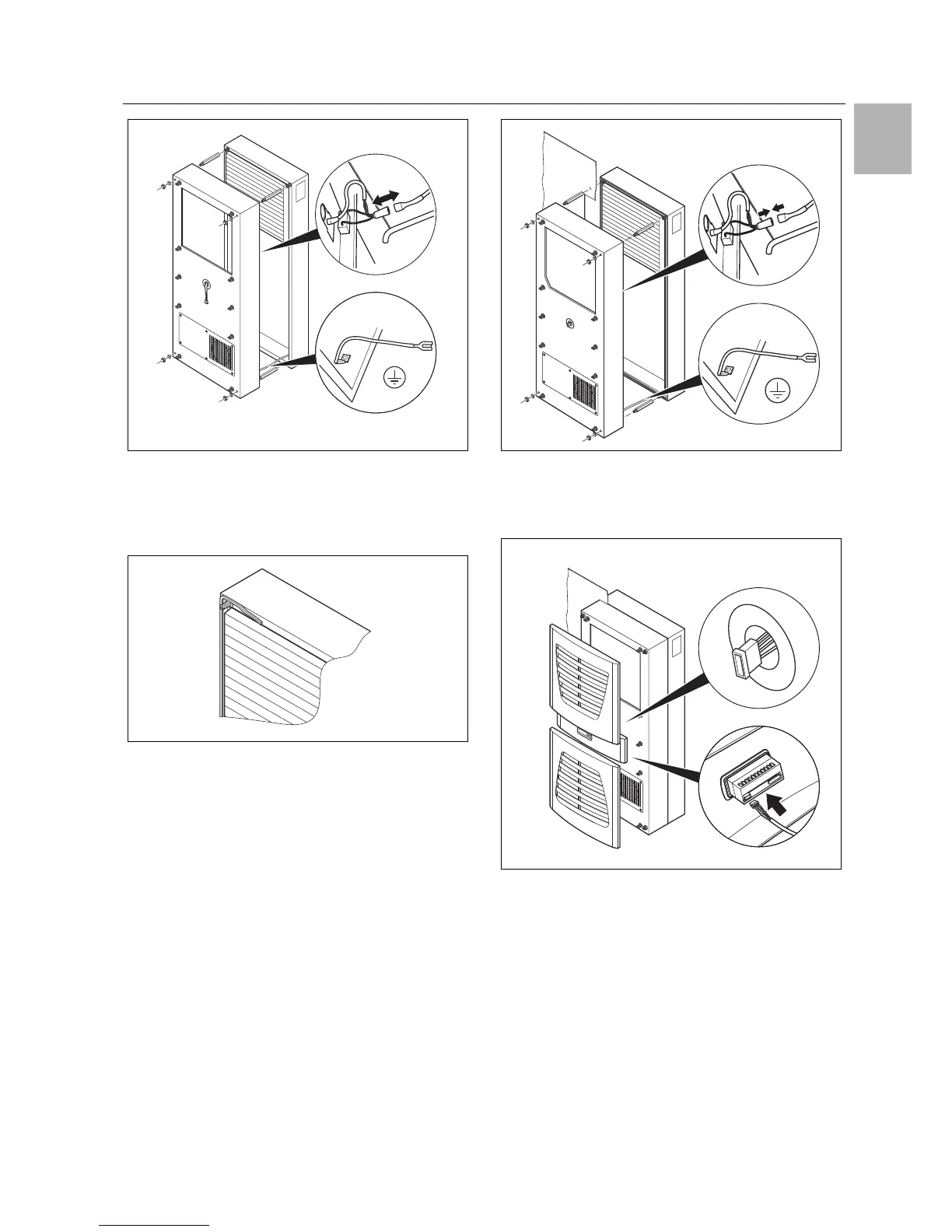

Fig. 11: Removing the cover
 Remove the four spacer bolts.
 Cut the supplied sealing tape to the correct length and
stick it carefully along the inside of the rear enclosure
half so that no gaps are left at the connection points.
Fig. 12: Applying the self-adhesive tape
 Push the rear enclosure half into the mounting cut-out
and secure it with the four spacer bolts.
 Push the display cable through the cable gland of the
front enclosure half.
Fig. 13: Securing the cooling unit
 Connect the fan connector and PE conductor.
 Mount the front enclosure tray using the washers and
nuts.
Fig. 14: Connecting the display connector
 Carefully connect the display connector.
 Push the louvred grille and, where applicable, the infill
panel, onto the enclosure.
4.3.4 Full internal mounting of the cooling unit
 Carefully remove the louvred grille and the infill panel
from the enclosure by pulling forwards.
 Carefully disconnect the connector from the rear of the
display.
