Riva RC3500 - Mounting Template; 3-Axis Movement Adjustment

10
www.rivatech.de

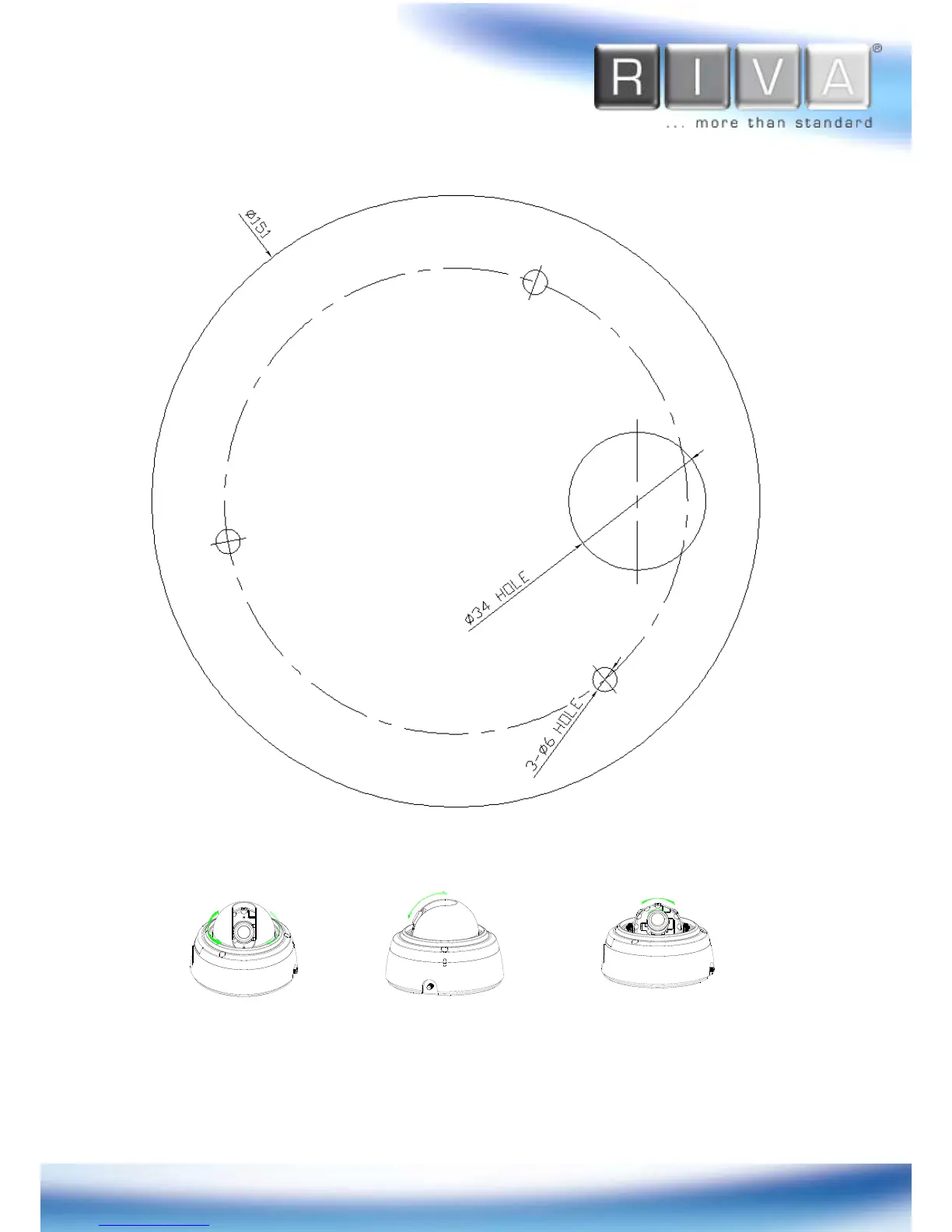

4.1. Installation Template
4.2. Manual adjustment for 3-axis movements
After installation, make a manual adjustment on the inner liner. Perform 3-axis
movements manually by turning the inner liner to different directions as above, and
check if it moves properly.
