RTC Series RTC Installation Guide
01A.04 25

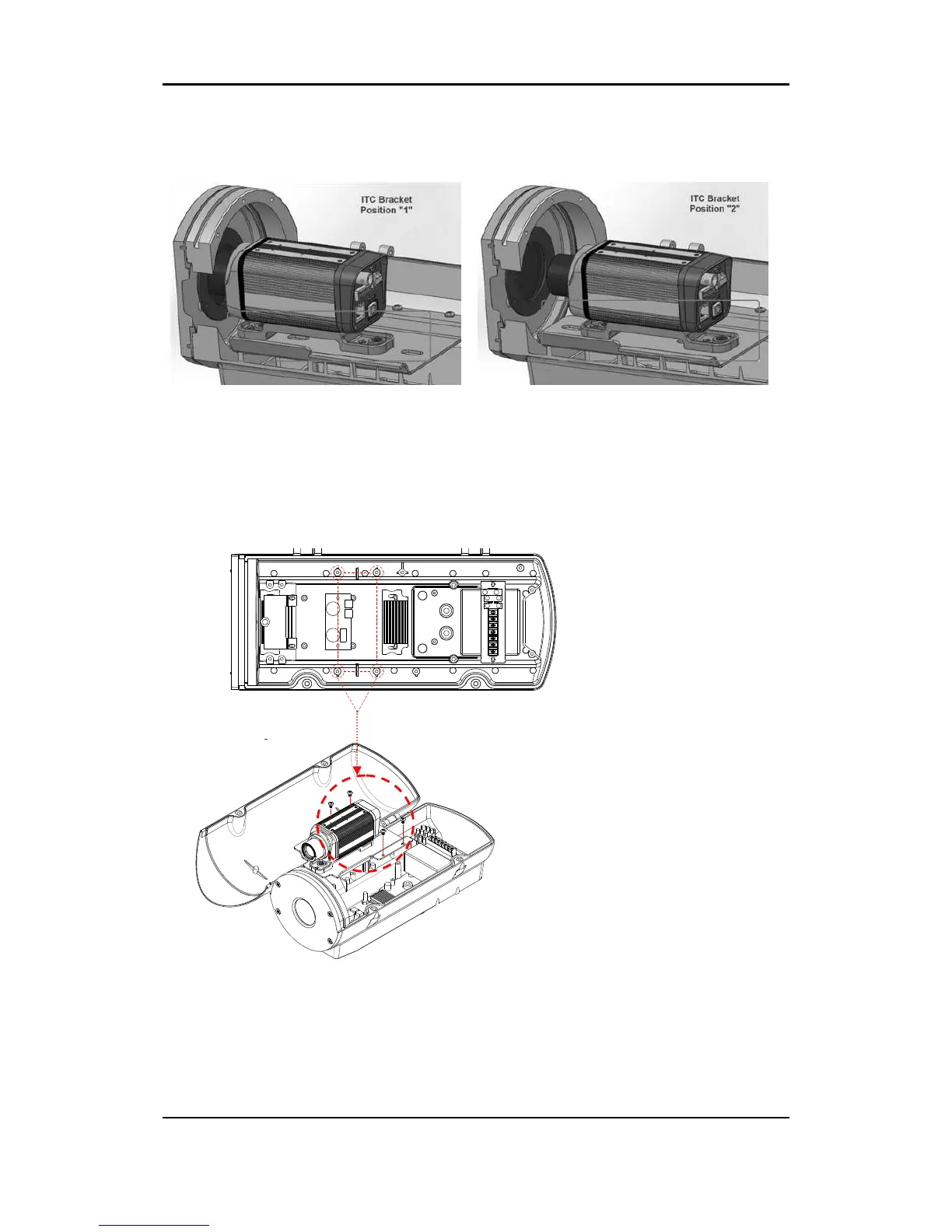

*The camera mount can be fixed at two different locations on the mount plate (1 and 2).
Consider the lens length before determining the mount plate screw holes’ location.
3. Fix the mount plate in the
housing.
