BLOCKSYSTEM FS Pag. 89 Rev. 02 02/07

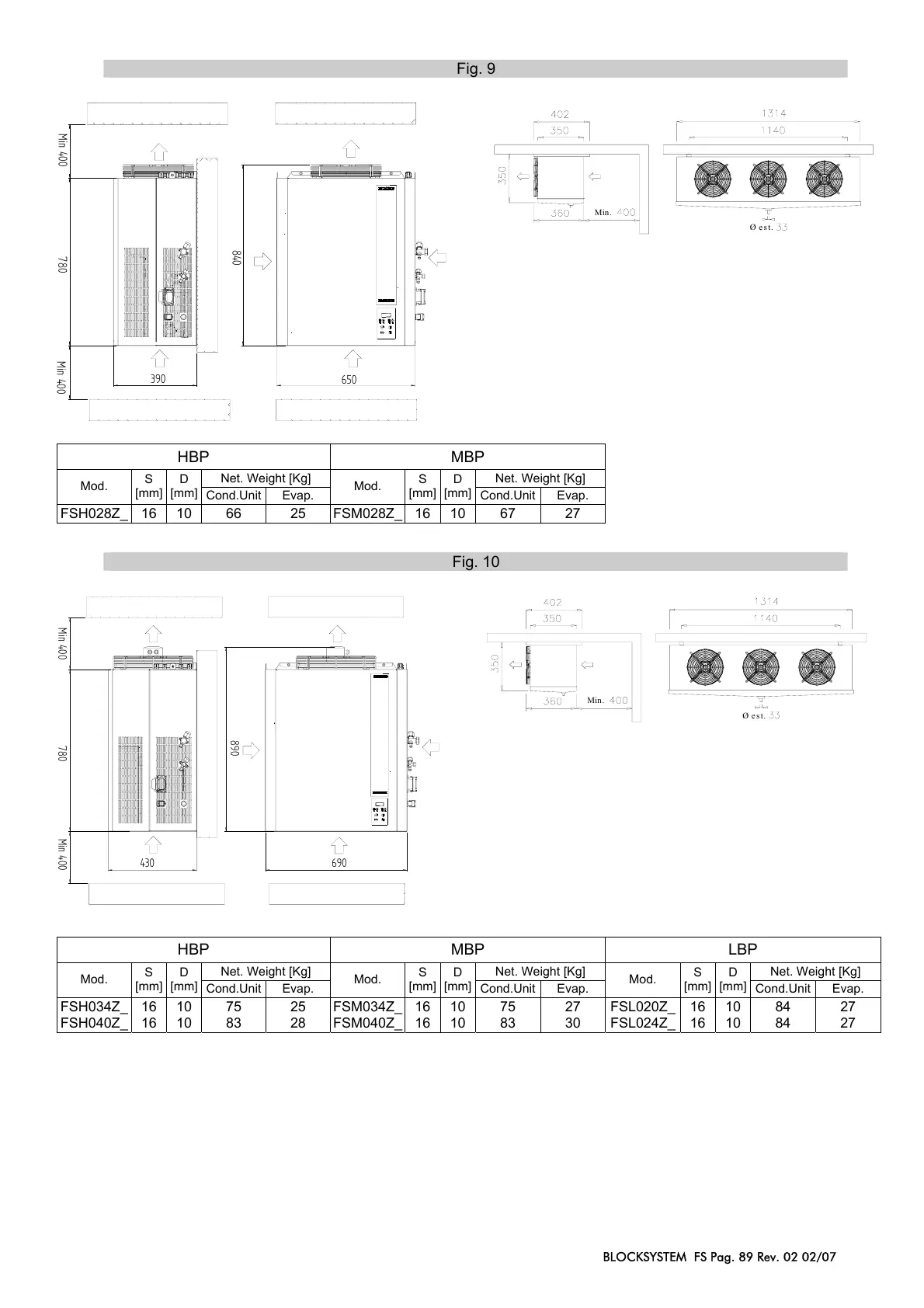

Fig. 9
HBP MBP
Net. Weight [Kg] Net. Weight [Kg]
Mod.
S
[mm]
D
[mm]
Cond.Unit Evap.
Mod.
S
[mm]
D
[mm]
Cond.Unit Evap.
FSH028Z_ 16 10 66 25 FSM028Z_ 16 10 67 27
Fig. 10
HBP MBP LBP
Net. Weight [Kg] Net. Weight [Kg] Net. Weight [Kg]
Mod.
S
[mm]
D
[mm]
Cond.Unit Evap.
Mod.
S
[mm]
D
[mm]
Cond.Unit Evap.
Mod.
S
[mm]
D
[mm]
Cond.Unit Evap.
FSH034Z_
FSH040Z_
16
16
10
10
75
83
25
28
FSM034Z_
FSM040Z_
16
16
10
10
75
83
27
30
FSL020Z_
FSL024Z_
16
16
10
10
84
84
27
27
Min.
Ø es t.
Min.
Ø es t.
Min 400
780
Min 400
390
650
840
off
on
set
Min 400 780 Min 400
690
890
off
on
set
430
