This drawing and the info rmation and data cont ained herein are the
confidential and pro prietary property of RIX In dustries and may not be use d,
copied, reproduced, or disclosed for any purpose, without the written
permission of RIX Industries.
PROPRIETARY DRAWING
DWG NO SH REV
24923
1234
5
678
A
B
C
DD
C
B
A
876543 1
1 E
CUI//SP-CTI/PROPIN
CONTRACT/INV. NO.
APPROVALS DATE
DRAWN
CHECKED
APPROVED
SF
6/20/2018
KW
7/18/2018
ICB
7/24/2018
SIZE
D
SCALE
1/4
CAGE CODE
28953
DWG NO
24923
REV
E
SHEET
OF1 1
TITLE
2PS2B-.85
RIX INDUSTRIES
4900 INDUSTRIAL WAY, BENICIA, CA 94510
ON SAN FRANCISCO BAY SINCE 1878
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
DECIMALS
.X±.1
.XX±.02
.XXX±.005
FRACTIONS± 1/16
CAST±1/8
ANGLES±2°
WELDS±1/32
DO NOT SCALE DRAWING
THIRD ANGLE PROJECTION
MATERIAL
FINISH
TREATMENT
N/A
N/A
N/A
P/N
SEE TABLE
*DISCHARGE PRESSURE "AS SUPPLIED" MAY VARY BETWEEN 2150 AND
2250 PSIG DUE TO VARIATIONS IN MEASURING EQUIPMENT AND SETUP.
SEE PRODUCT MANUAL FOR ADDITIONAL INFORMATION.
AVAILABLE MODELS
P/N
SUPPLY GAS INPUT VOLTAGE
TYPICAL FLOW AT
MIN SUCTION
MAX AMPS
2PS-L O2
115V / 60HZ / 1PH
30 SCFH 19A
2PS-L50 O2
220V / 50HZ / 1PH
30 SCFH 11.7A
2PS-H O2
115V / 60HZ / 1PH
60 SCFH 19A
2PS-HH O2
230V / 50HZ / 1PH
60 SCFH 8.9A
2PS-H50 O2
220V / 50HZ / 1PH
60 SCFH 10A
2PS2B-HH208 O2
208V / 60HZ / 3PH
60 SCFH 5.5A
2PS-L-N2 N2
115V / 60HZ / 1PH
30 SCFH 19A
2PS-L50-N2
N2
220V / 50HZ / 1PH
30 SCFH 11.7A
2PS-H-N2 N2
115V / 60HZ / 1PH
60 SCFH 19A
2PS-HH-N2
N2
230V / 60HZ / 1PH
60 SCFH 8.9A
2PS-H50-N2 N2
220V / 50HZ / 1PH
60 SCFH 10A
2PS2B-HH208-N2 N2
208V / 60HZ / 3PH
60 SCFH 5.5A
BELTGUARD REMOVED FOR CLARITY
3
2

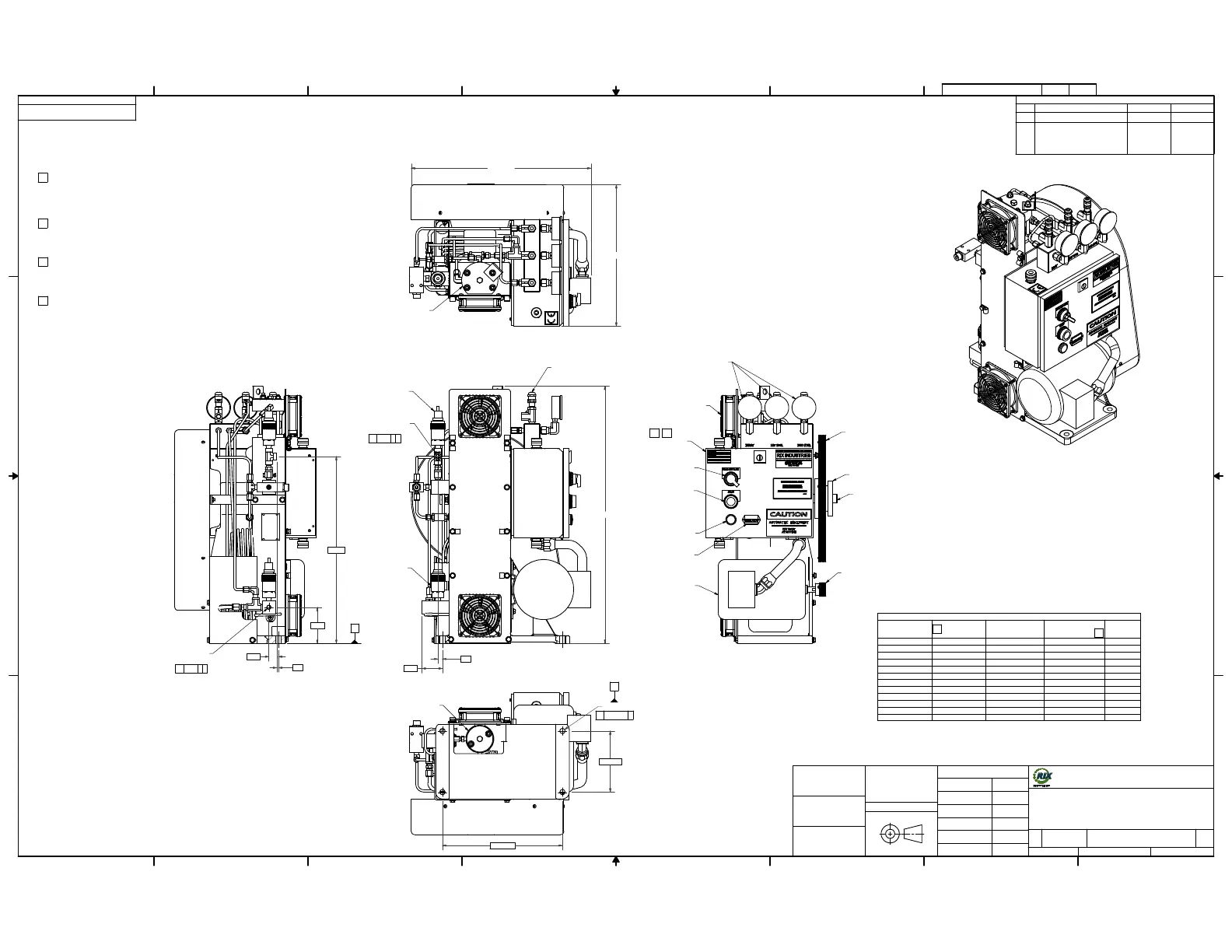

INTERFACE DRAWING
20.65
4.00
A
1.06
1/4 - 18 NPT
INLET PORT
Ø.25 A B
LOW PRESSURE
SWITCH
.50
2.25
RELIEF VALVES
29.0 MAX
6.752X
1ST STAGE
13.252X
.564X
Ø.030 A
B
20.5 MAX
16.0 MAX
2ND STAGE
GAUGES
FAN
ELECTRICAL BOX
HOA SWITCH
START BUTTON
RUNNING LIGHT
HOUR METER
MOTOR
FLYWHEEL
BUSHING
CRANKSHAFT
DRIVE SHEAVE
4
5
REVISION HISTORY
REV DESCRIPTION DATE APPROVED
D ECO-011049
21/08/11
ICB
E
REMOVED 2PS-15 SPECS,
REMOVED MAX TYPICAL FLOW
COLUMN FROM TABLE
22/01/24
AV
1/4 - 18 NPT
DISCHARGE PORT
Ø.25 A B
HIGH PRESSURE
SWITCH
.18
NOTES:
1.
APPLICABLE STANDARDS/SPECIFICATIONS:
ASME Y14.5-2009, DIMENSIONING AND TOLERANCING
ASME Y14.36M-1996, SURFACE TEXTURE SYMBOLS
2. SUPPLY GAS:
PRESSURE: 30-70 PSIG
TEMPERATURE: 0 TO 100 °F
DEW POINT: -50 °F MAXIMUM
CONCENTRATION: 90% PURITY MIN
3. COMPRESSOR OUTPUT:
NOMINAL DISCHARGE PRESSURE: 2200 PSIG*
FLOW @ 70°F & STATED PRESSURE SUCTION CONDITIONS
SCFH DEFINED AT 70°F, 14.7 PSIA
4.
CUSTOMER TO PUNCH HOLE AS DESIRED TO RUN MAIN POWER
INTO ELECTRICAL BOX AND LAND POWER ON CONTACTOR POINTS
L1 AND L2 ON THE OVERLOAD RELAY (UNIT SHIPPED WITHOUT
CUSTOMER MAIN POWER HOLE CUT IN ELECTRICAL BOX)
5.
PINK JUMPER WIRE BETWEEN CONTACTS 1 AND 3 ON DIN RAIL CAN
BE REMOVED AND REWIRED BY CUSTOMER FOR REMOTE START/STOP,
SIGNAL LINE, ETC. USE
6. INSTALLATION ENVIRONMENT:
LOCATION: INDOORS
AMBIENT TEMPERATURE: 32 TO 104 °F
ELEVATION: 4500' MAX
7.
APPROXIMATE WEIGHT: 172 LBS
8. DUTY CYCLE: CONTINUOUS
