2. INSTALLATION
2.1 GENERAL NOTES
Wood fired cookers and thermal cookers are easy to install; anyway you must take some cares to
avoid damages due to unskillfulness. Before the installation, we recommend to verify the
necessary space, the safety distances, the correct predisposition of the chimney and the possibility
to make the necessary connections. Do not drag the device, move it keeping it lifted from the
floor. The device must not be moved making effort on the handrail or on the handles.
2.2 SAFETY DISTANCES
Be sure that the cookers and the thermal cookers that have to be framed have the minimum
safety distances to flammable or high temperatures sensible materials (see paragraph 7.2 and
safety label page 10 in Part 2 Installation Instruction). Rizzoli also produces isolated spacers to
reduce distances. The device is very heavy and must be placed on floor that can support its load
capacity. Follow local codes.
2.3 CHIMNEY
Chimney has a main importance for a correct working. Wood fired cookers and thermal cookers
are built to insure the maximum efficiency, anyway the performances of the cooker are deeply
influenced by the chimney. If the chimney has defects or does not match the building laws, it is not
insured the correct working of the device. To build the chimney you must use suitable materials,
made to work with high temperatures and according to fireproof laws: it is not important the kind
of material, on condition that it is right and that the chimney is isolated.

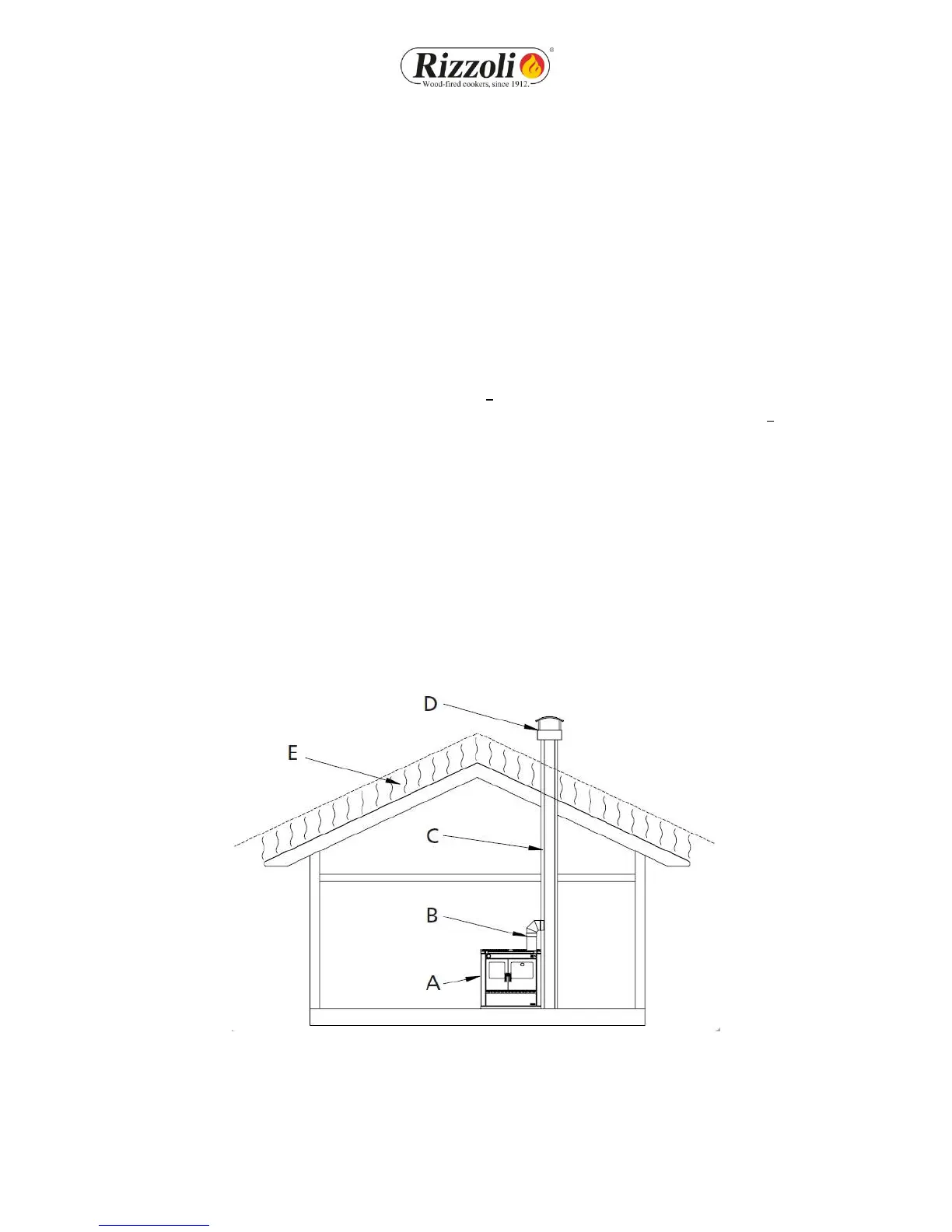

Picture 3 - Components of the chimney. A= cooker or thermal cooker, B= conjunction, C= flue, D= chimney,
E= reflow zone
