2.6 CHIMNEY POT
The chimney pot must have an exit section doubled than the one of the chimney, in order to make
easier the exit of the smoke. The chimney pot must be enough tall to lean out over the reflow
zone generated by the roof: if you are not sure about this contact experienced technicians. If you
are in a windy place, it might be necessary to install windproof devices.
The chimney should extend at least 3 feet above the roof surface it penetrates and 2 feet higher
than any roofline or other obstacle within a horizontal distance of 10 feet.
2.7 STOVE PIPES CONNECTION
The connection of the device to the flue must be as short as possible and must not have horizontal
or not much inclined parts. The counterslope parts are forbidden and must be absolutely avoided.
Near the conjunction, flammable materials must not be present. The conjunction must not go
inside the flue. To increase the safety of the conjunction, we suggest to install a washer on the
wall being sure that the connection between the washer and the chimney is walled and well
sealed. Also all the connection must be fixed and sealed. Connections through wall, ceiling and
floor ( see page 4 Part 2 Installation instruction).
2.8 FLUE OUTLET POSITION
Wood fired cookers and thermal cookers are predisposed to have flue outlets in different positions
(up, back, sides). Before connecting the device to the chimney you must be sure that all the
outlets you will not use are well closed. Eventually, you can make modifications using the devices
given together with the device.

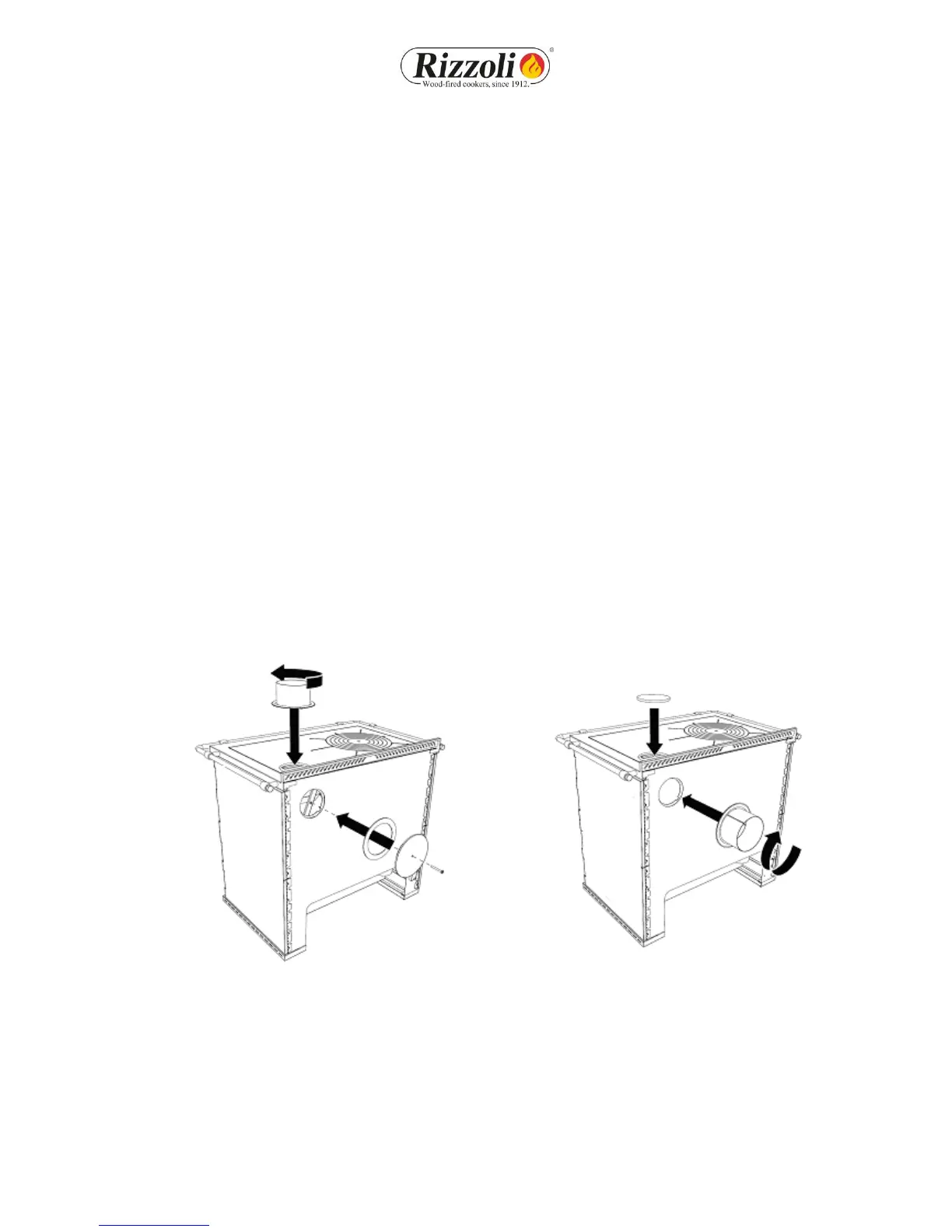

Picture 6 - Multiflue cooker/thermal cooker, predisposition of the correct flue outlet.
2.9 CORRECT CONNECTION TO THE CHIMNEY
If the conduct of the chimney starts from a lower floor than the connection point of the device, it
may be necessary to close the conduct under the connection pipe with fireproof materials. If you
have the chimney behind or up, you have to use the connector with bayonet coupling. This must
be inserted and turned so that it can remain blocked. This connector has a tolerance of about 1 cm
