Operator’s Guide Inspector D4000™ Auto Optic
002-5564 RJS, Minneapolis, MN

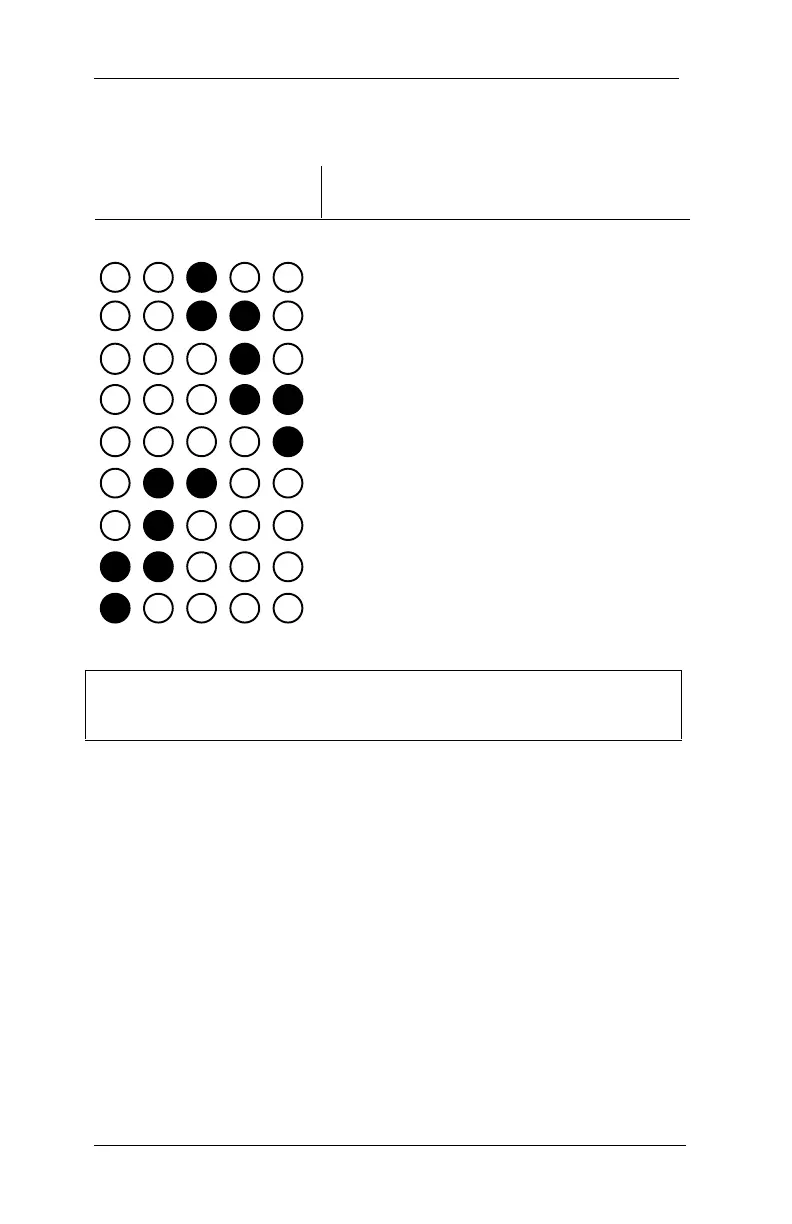

Table 9-A (LED, Bar code Width Deviations)
5 LED Display
Pattern
Average Bar width deviation as a
% of tolerance
Solid indicators represent LEDs turned on and the 9
possible patterns are displayed.
Within +21% to -21%
Within +22 to +49%
Within +50 to +78%
Within +79 to +99%
Out of tolerance (wide)
Within -22 to -49%
within -50 to -78%
within -79 to -99%
Out of tolerance (narrow)
