2. MOUNTING
IMR02L04-E3
2-3
Take caution to avoid being hurt by the sharp-pointed tip of the screw installed in the mounting
bracket.

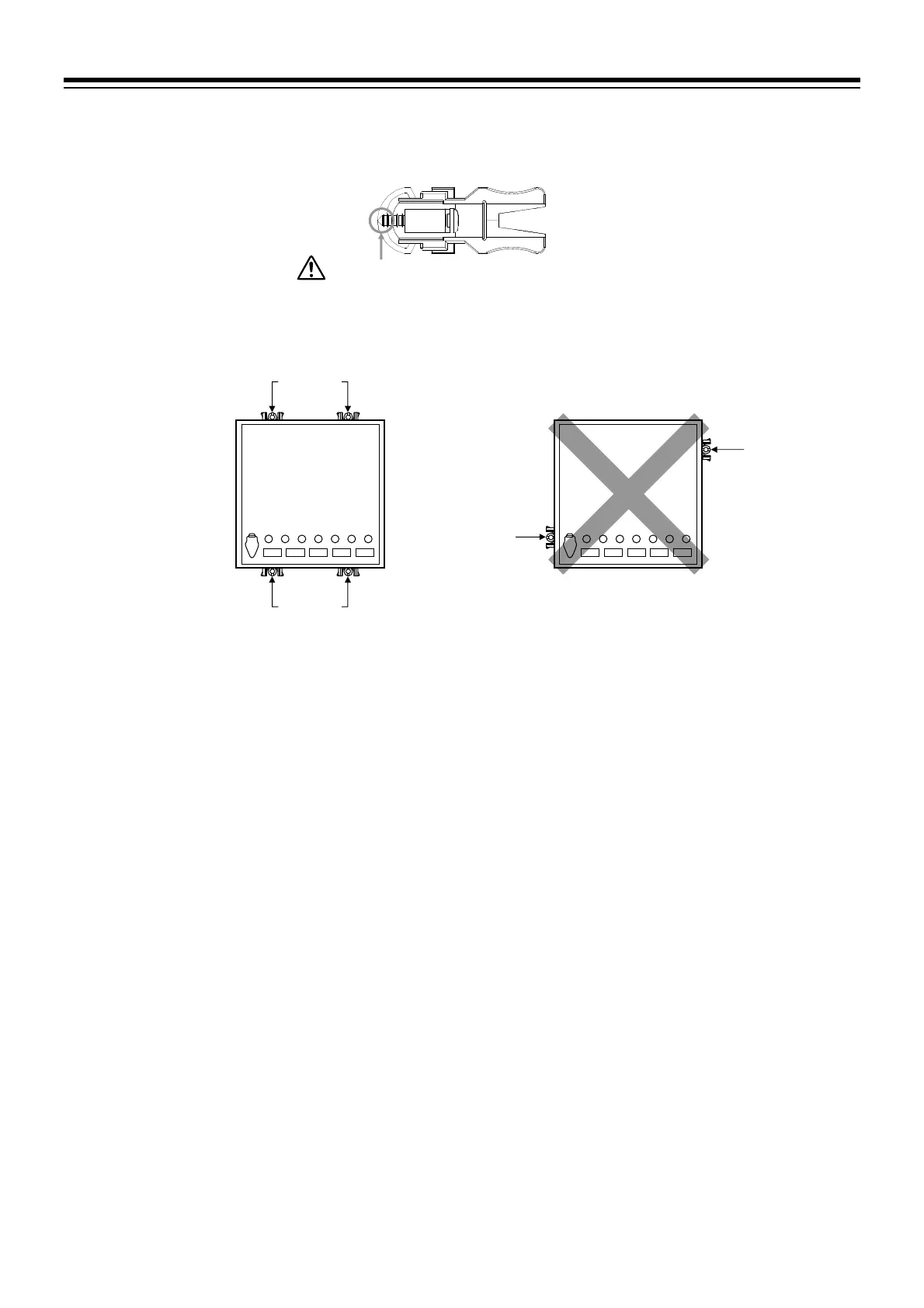

Install two mounting brackets each on top and the bottom of the instrument. Do not install them in the
grooves located on the side surfaces.
Correct installation Incorrect installation
Mounting
bracket
Mounting
bracket
Mounting
bracket
Mounting
bracket
Tip of screw installed in mounting bracket
