RM Italy BLA-600
115VAC Setup

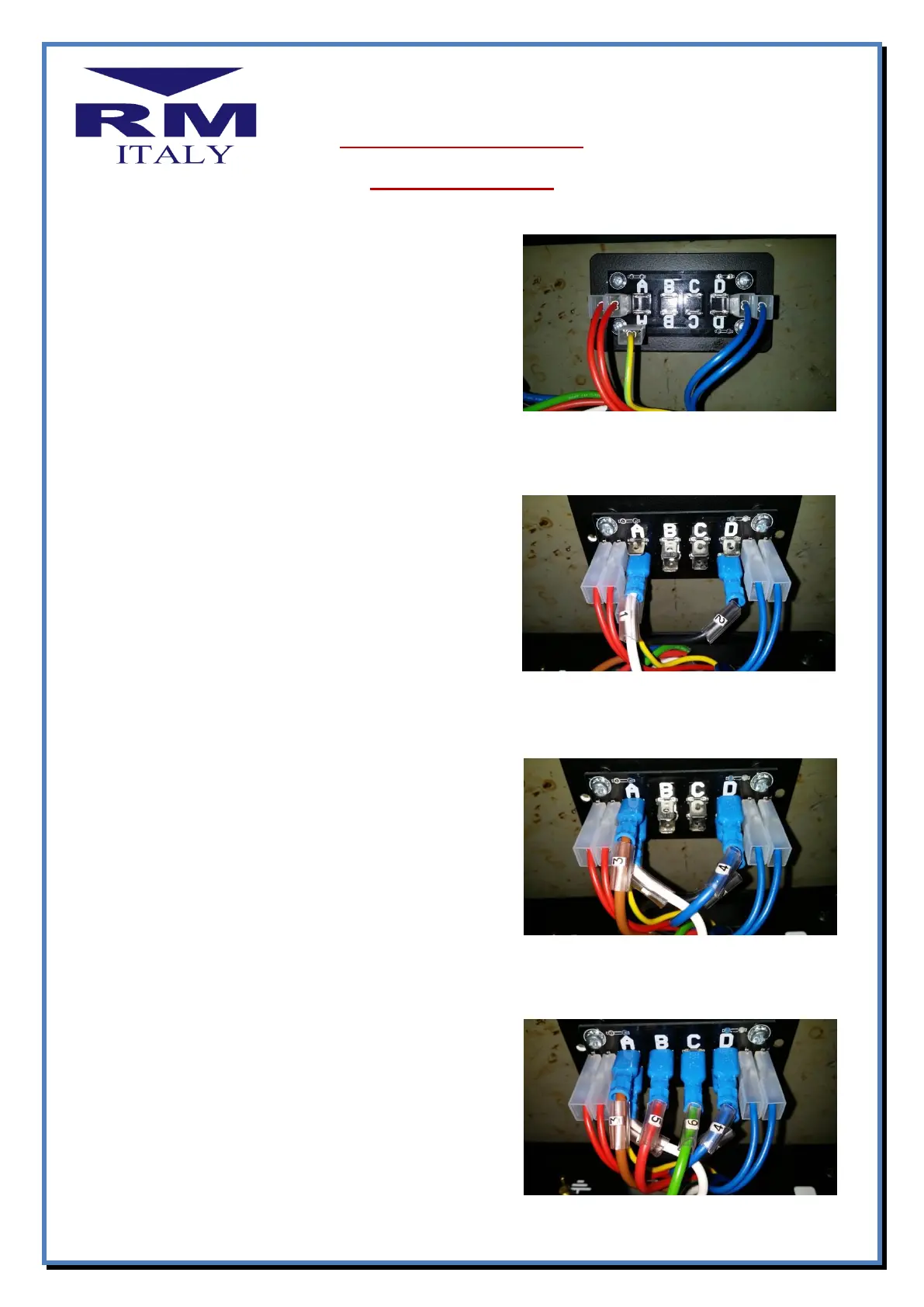

At this point you should find the panel as in the photo.
Now you are ready to set the AC input voltage of the
amplifier.
Connect cable "1" to one of the spade lugs labelled "A"
Connect cable "2" to one of the spade lugs labelled "D"
Connect cable "3" to one of the spade lugs labelled "A"
Connect cable "4" to one of the spade lugs labelled "D"
Connect cable "5" to one of the spade lugs labelled "B"
Connect cable "6" to one of the spade lugs labelled "C"
To Next Page
